Product Details:
|
| Blades Type: | Disposable | Material: | Metal, Plastic |
|---|---|---|---|
| Effective Depth Of Field: | 3～100mm | Field Angle: | 70±2º |
| Battery Endurance: | ≥6h | Charging Time: | ≤4h |
| Battery Life: | Cyclic Charging＞800 Times | Angle Of Rotation: | Before And After：0º～135º, Left And Right Angle Of Rotation：0º～275º |
| Warranty: | 1 Year | OEM Service: | Yes, Qty > 50 Units |
| High Light: | Metal Plastic Video Laryngoscope,Disposable Blades Video Laryngoscope,HYHJ1320 Fiber Optic Video Laryngoscope |
||

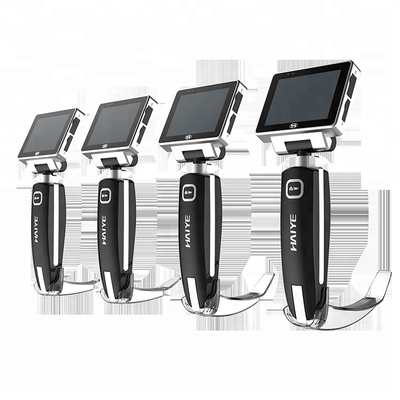

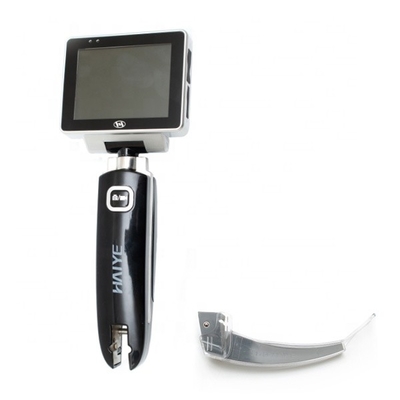

HYHJ 1320 Metal Plastic Fiber Optic Video Laryngoscope With Disposable Blades
Intubation with high precision full mold manufacturing process, stainless steel reinforcement, not easy to damage, long service life;
The machine adopts imported large capacity lithium battery, which can be used for more than 300 minutes.

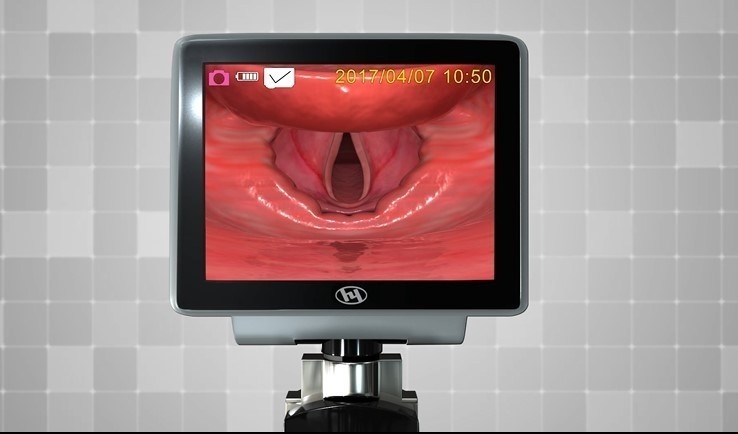

It has the functions of taking pictures, video recording, freeze frame and so on, and can be stored and exported;
Unique dual anti-fog function, ready to use, no preheating, intubation without blind area;
It is standard equipped with three cameras of different models, suitable for three different laryngoscopes, suitable for different people.
Disposable laryngoscope tablets are packaged and sterilized to prevent cross infection.
Mature and reliable fully functional electronic scheme and HD digital camera system, with 3 "TFT color display screen, good effect of restoration.
Higher success rate than direct laryngoscopy when direct laryngoscopy fails
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Technical Parameter
◆ Resolution :960×480
◆ Pixel :2 million
◆ Effective depth of field :3～100mm
◆ Field angle :70º±2°
◆ Battery life :≥6h
◆ Display: 3 "TFT color display screen
◆ Front and back rotation angle of display :0º～135º,Left and right rotation angle of display:0º～275º
◆ The light source built-in high power waterproof LED light source, and the illumination:≥3000lux
Working Environment
◆ Temperature :5℃～40℃
◆ Humidity:≤80%
◆ Atmospheric pressure :860hpa～1060hpa
◆ Charger input :100～240V,50/60Hz,0.35A
◆ Charger output :5V,2000mA
◆ Charging time :≤4h
◆ Battery life:Cyclic charging＞800 times
◆ Display: 3 "TFT color display screen
◆ Angle of rotation before and after the display:0º～135º
Left and right angle of rotation:0º～275º
◆ Light source with high power waterproof LED light source, light illuminance:≥3000lux
Work Environment:
◆ Temperature:5℃～40℃
◆ Humidity:≤80%
◆ Atmospheric pressure:860hpa～1060hpa
◆ Charger input:100～240V,50/60Hz,0.35A
◆ Charger output:5V,2000mA
Welcome to inquiry if you have any interests!
OEM order is acceptable.
