Product Details:
|
| Product Name: | Fiber Optic Video Laryngoscope | Material: | 304 Stainless Steel, Plastic |
|---|---|---|---|
| Display: | 3 "TFT Color Screen | Resolution: | 960*480 |
| Pixels: | 2 Million | Carema: | CMOS, Double Anti Fog |
| Viewing Angle: | 70°± 2° | Depth Of Fields: | 3~100mm |
| Rotate Angle: | Front To Back: 0~135°, Left To Right: 0~275° | Warranty: | 1 Year |
| OEM Service: | Acceptable | Application: | Surgical Intubation |
| High Light: | Rotate Fiber Optic Video Laryngoscope,3" TFT Screen Optical Laryngoscope,OEM Fiber Optic Video Laryngoscope |
||

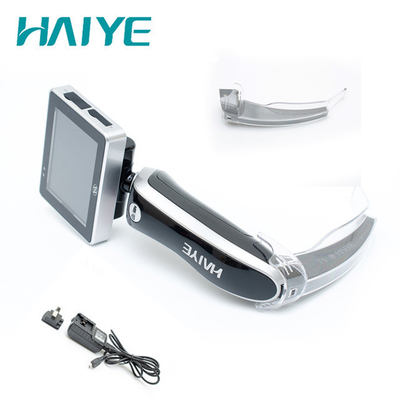

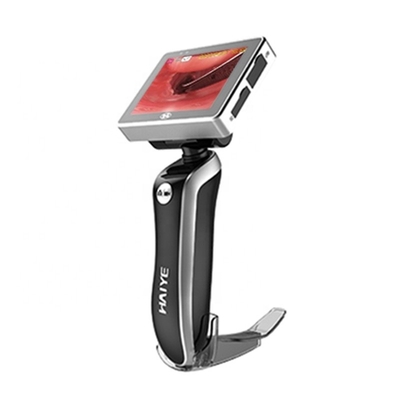

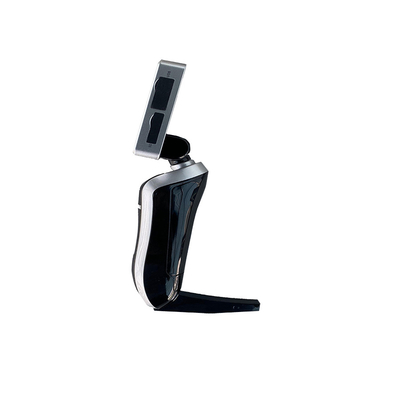

OEM Rotate Fiber Optic Video Laryngoscope 3" TFT Color Screen
Why Choose Vedio Laryngoscope?
1. Any doctors familar with tradional laryngoscope can smoothly use it;
2. Showing the internal oral structure very clearly, easily capture the photo and vedio;
3. Keep distance between doctor and patient, greatly reduce the cross-infection possiblity;
4. Significantly improved glottic exposure grade, nearly 99% of the patients can reach grade I-II, and the grade of glottic exposure can be reduced by at least I grade;
5. Shorter the endotracheal intubation time , increase the success rate and also lower the esophageal intubation rate;
6. The forward view do not need three-axis line, the range of head and neck operation is small, Which is suitable for cervical spine injury cases;
7. Lighter operating force,less inquiry,and smoother hemodynamics.
Technical data
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| Blades | Suit for different oral structure, aseptic packaging for single use | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Product Feature
◆It has high precision and full mold production process, and has long service life.
◆ The machine adopts an imported large capacity lithium battery, which can be used for more than 350 minutes.
◆ It has the functions of photographing, video, freeze-frame and so on, and can be stored and exported;
◆ The special anti fogging function can be used normally for 3 minutes by opening the machine, and there is no blind zone in the intubation.

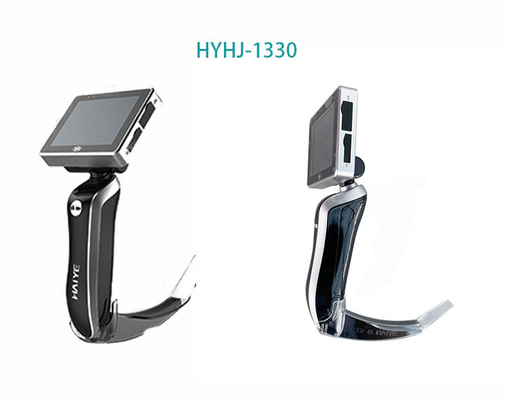

◆ The machine has three different specifications, corresponding to three types of camera, suitable for three different laryngoscope lenses, adults, children, infants and young children can be used.
◆ The laryngoscope blade is sterilized in one time to prevent cross infection.
◆ Mature and reliable electronic scheme and high definition digital camera system, with 3 "TFT color display screen, image reduction effect is good.
Xi 'an Haye Medical Equipment Co., LTD., founded in 2013, with Ding Hailiang as its legal representative, is a high-tech enterprise integrating science, industry and trade. Since its establishment, the company has been focusing on the visual medical field, and committed to the professional development and production of video laryngoscope, developed common laryngoscope, video hard mirror, video hard tube mirror, video soft mirror and other series of products.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
