Product Details:
|
| Display: | 3 "TFT Color Screen | Resolution: | 960*480 |
|---|---|---|---|
| Pixel: | 2 Million | Depth Of Field: | 3～100mm |
| Field Angle: | 70±2º | Charing Time: | ≤4h |
| Stand-by Time: | ≥300 Mins | WorkingTemperature: | 5℃～40℃ |
| Charger Output: | 5V,2000mA | Blades: | Disposable, T1, T2,T3 |
| Warranty: | 1 Year | OEM MOQ: | ≥ 50 SETS |
| High Light: | Emergency Airway Intubation Devices,Airway Intubation Visual Laryngoscope,T3 Blades Visual Laryngoscope |
||

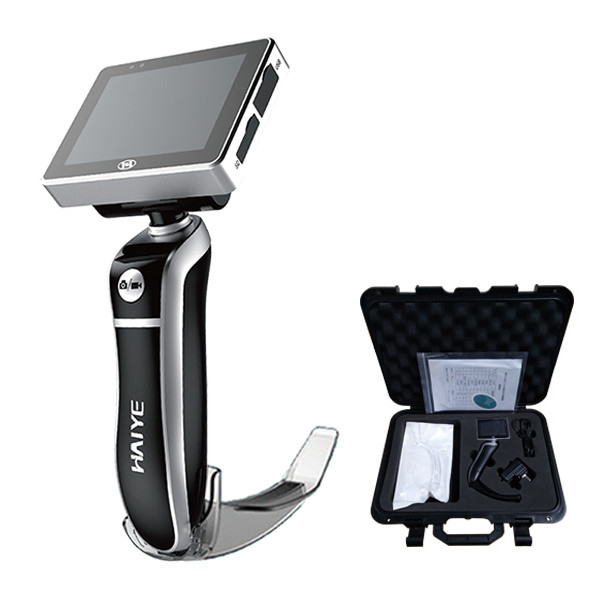

Emergency Airway Intubation Devices Visual Largngoscope with 3 disposable T1, T2,T3 Blades
Company Overview:
Product of video laryngoscope HYHJ-1330 II
Production Capacity:
HYHJ-1330 Video Laryngoscope suit for adult, children and newborn
Technical Feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Carema Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and vedio | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Roatate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 3 Disposable bladeds, aseptic packaging for single use | |
|
Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continous use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Main Features :
HYHJ-1330 Medical visual laryngoscope is the latest product of our company.The machine is novel in design, beautiful in appearance, small in portability, complete in function and simple in use,It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.
1. It has high precision and full mold production process, and has long service life.
2. The machine adopts an imported large capacity lithium battery, which can be used for more than 350 minutes.
3. It has the functions of photographing, video, freeze-frame and so on, and can be stored and exported;
4. The special anti fogging function can be used normally for 3 minutes by opening the machine, and there is no blind zone in the intubation.

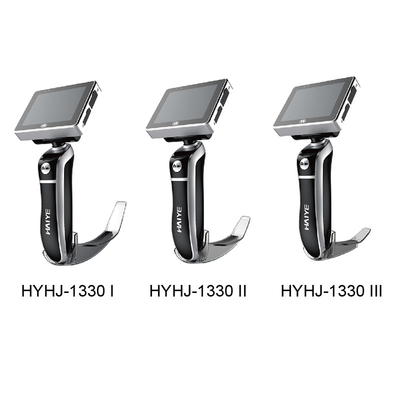

5. The machine has three different specifications, corresponding to three types of camera, suitable for three different laryngoscope lenses, adults, children, infants and young children can be used.
5. The laryngoscope blade is sterilized in one time to prevent cross infection.
6. Mature and reliable electronic scheme and high definition digital camera system, with 3 "TFT color display screen, image reduction effect is good

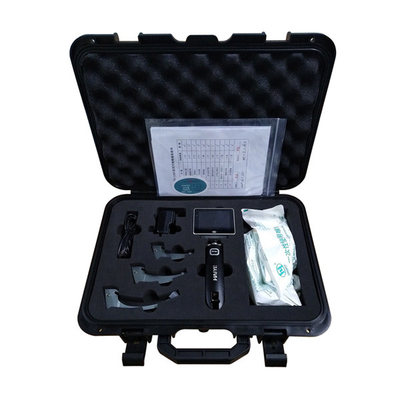

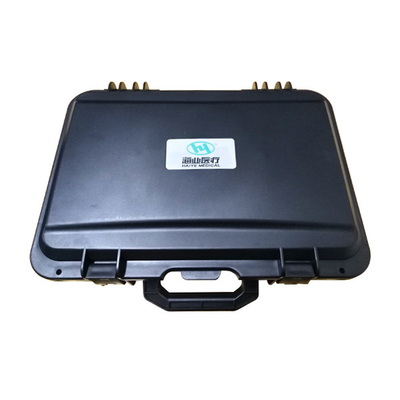

Shipping & Packing
Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: U.S., Middle East, Australia, Korea, Russia, Pakistan...
FAQ
Q: Are you Manufacturer?
A: We are professional manufacturer of video laryngoscope in China over 5 years, now we mainly produce video laryngoscope with disposable and reusable blade,welcome to visit our factory.
Q: What’s your MOQ and OEM service available?
A: 1 sets as sample can accept, we offer OEM service and print your logo as your requirement.
Q: Can we replace disposable and reusable blade?
A: Main machine is the same, you can match our disposable or reusable freely.
Q: Whats your warranty?
A: We offer 12 months warranty, within warranty change new machine, after warranty only pay produce cost.
