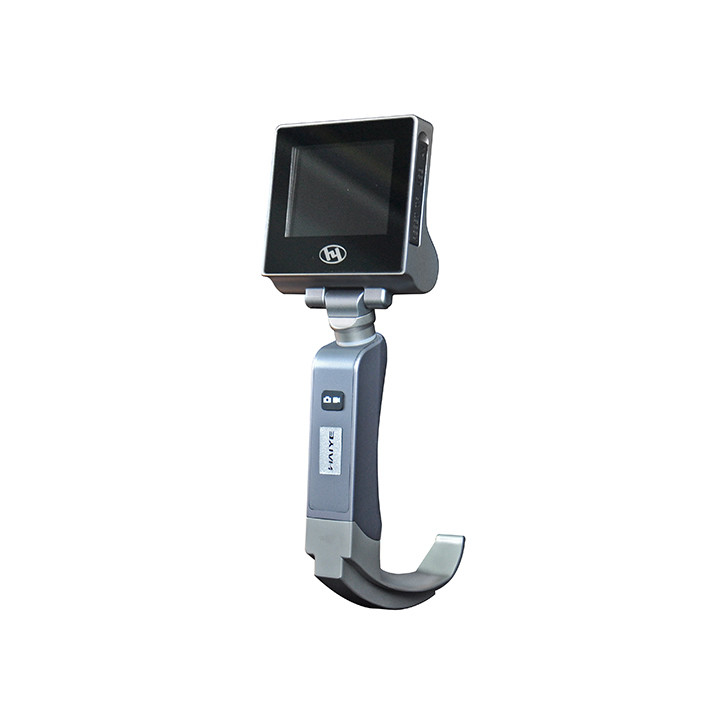

ICU NICU CCU Video Assisted Flexible Laryngoscope ISO13485

ICU NICU CCU Video Assisted Flexible Laryngoscope ISO13485
ICU NICU CCU Video Assisted Flexible Laryngoscope ISO13485 ICU NICU CCU Video Assisted Flexible Laryngoscope ISO13485 ICU NICU CCU Video Assisted Flexible Laryngoscope ISO13485 ICU NICU CCU Video Assisted Flexible Laryngoscope ISO13485 ICU NICU CCU Video Assisted Flexible Laryngoscope ISO13485 ICU NICU CCU Video Assisted Flexible Laryngoscope ISO13485

Large Image :  ICU NICU CCU Video Assisted Flexible Laryngoscope ISO13485

Product Details:
Place of Origin: China
Brand Name: Haiye
Certification: CE ,ISO13485
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD1000-USD1500/Set
Packaging Details: Carton
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 sets

ICU NICU CCU Video Assisted Flexible Laryngoscope ISO13485

Description
Product Name: Video Laryngoscope Screen: 3.0 Inch
Resolution: 960*480 Pixel: 2 Million
Blade: Reusable 5 Size Blade Material: Stainess Steel
Certificate: CE ,ISO13485 Battery: Recargeable Lithium Battery
Illuminance: 3000Lux Depth Of Field: 3-100mm
Field Angle: 70+2 Battery Working Time: >400min
Cycle Life Of Battery: >600times
High Light:

ICU NICU CCU video flexible laryngoscope

,

video flexible laryngoscope ISO13485

,

ICU NICU CCU video assisted laryngoscope

Hot sale ! China Stainlesss Steel Rechargeable 32GB Reusable Video Laryngoscope



Hospital Respiratory department use Anti-fog Medical device Video Laryngoscope



Specifications for the Video Laryngoscope

PARTS
Description
Technical Index
Machine
Screen
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Power
<2W
Display front and back rotation Angle
0 º~175 º
Weight
225g
Camera
Illuminance
≥3000 LUX
Resolution
1280*720 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 16GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<2(hrs)

Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1A
Working

Condition
Temperature
-5℃~+50℃
Humidity
10%~90%
Air Pressure
860~1060hpa
Transport / Storage

Condition
Temperature
-10℃~50℃
Humidity
≤93%
Air Pressure
500~1060hpa





Model No.: HYHJ-KC

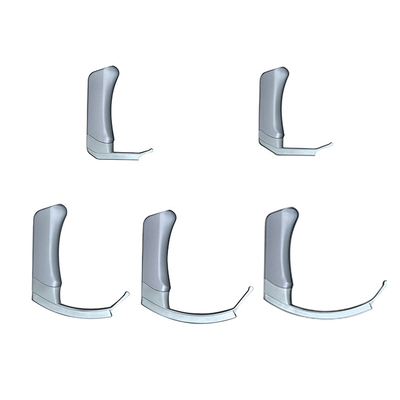

Reusable Blade : 1.Difficulty-blade 2. Large-Adult 3. Medium-Adult 4.Pediatric 5. Neonate



Features:

*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot



*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.



NEW Medical Device Anti-fog Emergency Department Use Video Laryngoscope
*Portable

Light weight, main unit is less than 350g. Disposable blade is vacuum packing. Excellent body design, easy to install or remove. It's ready to use in no time.



Packing and Delivery



Packing Size :400*95*360mm

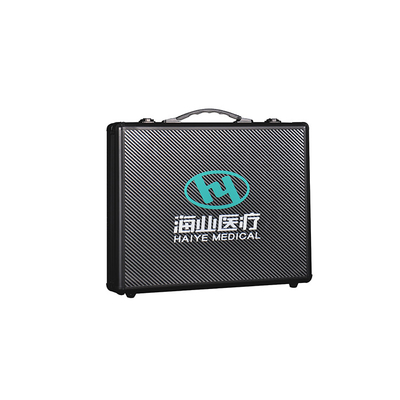

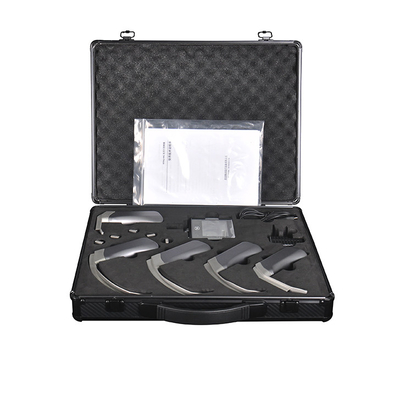

Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 1 blade.
