Product Details:
|
| Type: | First-Aid Devices | Certificate: | CE ISO:9001/ISO:13485 |
|---|---|---|---|
| Display: | 3 Inches Color Screen | Pixel: | 2 M |
| Resoultion: | 960*480 | Color: | Grey |
| Warranty: | 12 Months |
8GB Digital Surgical anesthesia used Adult sizes reusable Video laryngoscope

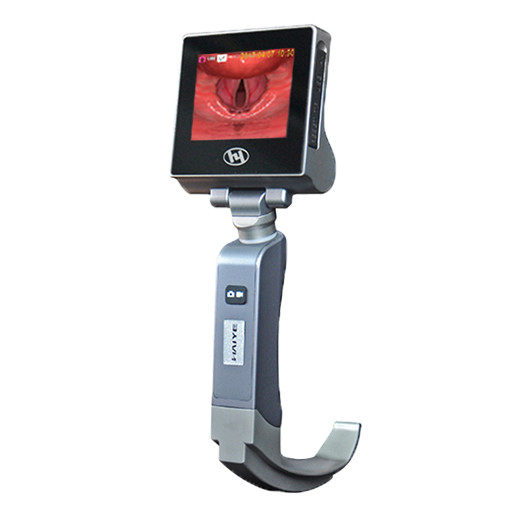

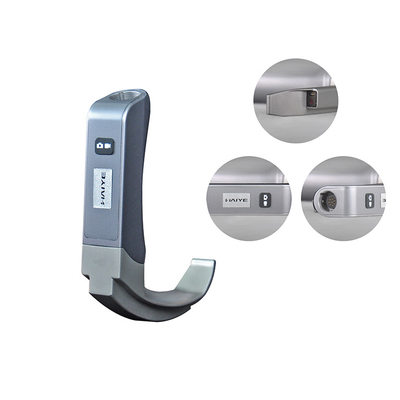

Product of video laryngoscope HYHJ-KC
Applications
1. Clinical endotracheal intubation.
2. Clinical teaching
3. Difficult airway intubation.
4. Anesthesiology, Emergency Diagnosis
5. ICU, Pediatrics and Ambulance
Main features of video laryngoscope HYHJ-KC
1. It has high precision all mold manufacturing technology, stainless steel reinforcement, not easy to damage, long service life.
2. The machine adopts imported large capacity lithium battery, which can last for more than 300 minutes.

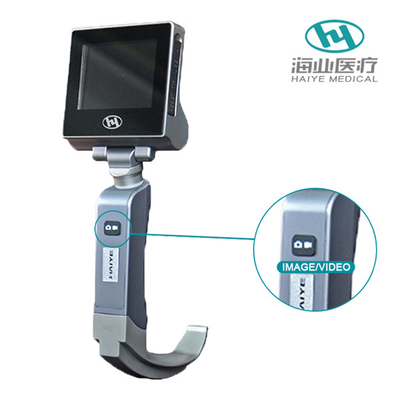

3. It has the functions of taking pictures, videos and freeze frames, and can store and export.
4. The unique anti fog function can be used normally after 3 minutes of warm up. There is no blind area.
5. This machine has four specifications, suitable for adult large, medium size, child type and newborn type.
6. The camera system is made of medical used 304 stainless steel and can be reused after disinfection.
7. Mature reliable and fully functional electronic solutions and high-definition digital camera system, with 3 "TFT colorful display screen, image restoration effect is good.
Specifications of video laryngoscope HYHJ-KC:
| Components | Parameter | Technical index |
| Screen | Size | 3.0" LCD screen |
| Resolution | 960*480 | |
| backlight | LED | |
| From front to rear the rotation angle | 0-150° | |
| From left to right the rotation angle | 0-270° | |
| Data output | Easy to create and save the file | |
| Video Output | External monitor, facilitate teaching and demonstration. | |
| Laryngoscope blades | Resolution | 2,000,000 |
| Power | ≤12V | |
| laryngoscope blade | Reusable blades(4 model) | |
| FOV | 70±2° | |
| Illumination | ≥3000LUX | |
| Battery | Type | Lithium-ion rechargeable battery |
| Voltage | 3.7V | |
| Capacity | 3000mAh | |
| Charging times | >800 times | |
| Charging time | <4 hours |
|
Specifications of video laryngoscope HYHJ-KC
Type: Anesthesia equipment&accessories Brand name:HAIYE
Model Number:HYHJ-KC Place of Origin: Shaanxi, China(Mainland)
Instrument classification: Class II Product name:Anti-fog video laryngoscope
Color:Silver black Size:Adult large, adult medium, children and neonate use
Certificate: CE, ISO9001, ISO13458 Material: Medical used stainless steel
Resolution:960*480 Pixel: 2M
Battery life:≥6h Battery power:3.7V
Screen Size: 3" TFT Time of endurance: More than 300 minutes
Field angles: 70° Atmospheric pressure: 860-1060pha
Depth of fields:3-100mm Anti-fog: Yes
Warranty: 12 months Memory capacity: 8GB
Application: emergency diagnosis, difficult airway intubation, pediatrics, ambulance clinical diagnosis,ICU, Department of anesthesiology
FAQ
Q: Are you Manufacturer?
A: We are professional manufacturer of video laryngoscope in China over 5 years, now we mainly produce video laryngoscope with disposable and reusable blade,welcome to visit our factory.
Q: What’s your MOQ and OEM service available?
A: 1 sets as sample can accept, we offer OEM service and print your logo as your requirement.
Q: Can we replace disposable and reusable blade?
A: Main machine is the same, you can match our disposable or reusable freely.
Q: Whats your warranty?
A: We offer 12 months warranty, within warranty change new machine, after warranty only pay produce cost.
