Product Details:
|
| Product Name: | Anesthesia Electronic Endoscope | Display: | 3 "TFT Color Screen |
|---|---|---|---|
| Resolution: | 960*480 | Pixel: | 2 Million |
| Carema: | CMOS, Double Anti Fog | Viewing Angle: | 70°± 2° |
| Depth Of Fields: | 3~100mm | Rotate Angle: | Front To Back: 0~135°, Left To Right: 0~275° |
| Blades: | Disposable, 3 Different Sizes | Battery Type: | Lithium Ion Battery |
| Warranty: | 1 Year | OEM Service: | Yes, Qty > 50 Units |
| High Light: | 32GB Anesthesia Electronic Endoscope,Disposable Electronic Video Laryngoscope,Electronic Fiber Optic Video Laryngoscope |
||

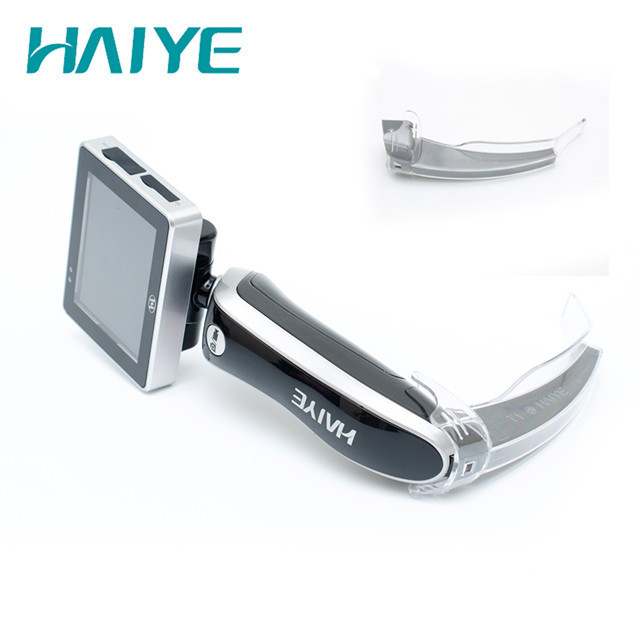

Disposable Fiber Optic Video Laryngoscope 32GB Anesthesia Electronic Endoscope
Main Features :
HYHJ-1330 Medical visual laryngoscope is the latest product of our company.The machine is novel in design, beautiful in appearance, small in portability, complete in function and simple in use,It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.
◆It has high precision and full mold production process, and has long service life.
◆ The machine adopts an imported large capacity lithium battery, which can be used for more than 350 minutes.

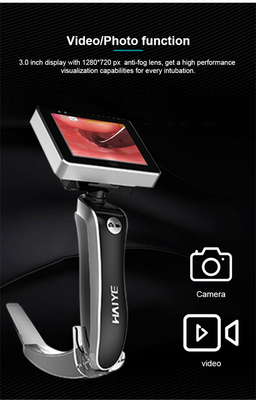

◆ It has the functions of photographing, video, freeze-frame and so on, and can be stored and exported;
◆ The special anti fogging function can be used normally for 3 minutes by opening the machine, and there is no blind zone in the intubation.

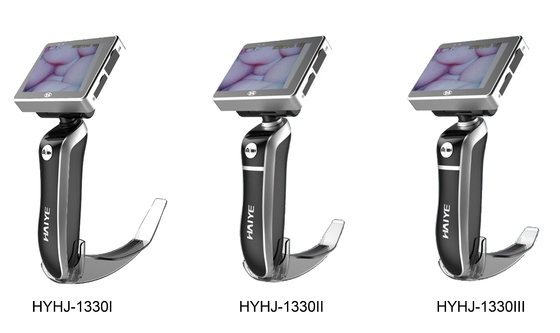

◆ The machine has three different specifications, corresponding to three types of camera, suitable for three different laryngoscope lenses, adults, children, infants and young children can be used.
◆ The laryngoscope blade is sterilized in one time to prevent cross infection.
◆ Mature and reliable electronic scheme and high definition digital camera system, with 3 "TFT color display screen, image reduction effect is good
Technical data
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| Blades | Suit for different oral structure,aseptic packaging for single use | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Scope of application
Why Choose Vedio Laryngoscope?
1. Any doctors familar with tradional laryngoscope can smoothly use it;
2. Showing the internal oral structure very clearly, easily capture the photo and vedio;
3. Keep distance between doctor and patient, greatly reduce the cross-infection possiblity;
4. Significantly improved glottic exposure grade, nearly 99% of the patients can reach grade I-II, and the grade of glottic exposure can be reduced by at least I grade;
5. Shorter the endotracheal intubation time , increase the success rate and also lower the esophageal intubation rate;
6. The forward view do not need three-axis line, the range of head and neck operation is small, Which is suitable for cervical spine injury cases;
7. Lighter operating force,less inquiry,and smoother hemodynamics.
Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: the U.S., French, Middle East, Australia, Korea, Russia, Pakistan...
Welcome to inquiry if you have any interests!
OEM order is acceptable.
