Product Details:
|
| Product Name: | Disinfection Video Laryngoscope | Display: | 3.0 Inch LCD Color Screen |
|---|---|---|---|
| Display Resolution: | 960 X 480 | Pixels: | 2 Million |
| Carema Resolution: | 1600 X 1200 | Viewing Angle: | 70 ± 2 Degree |
| Depth Of Field: | 3~100mm | Roatate Angle: | Front To Back: 135 º, Left To Right: 275 º |
| Blades: | 5 Reasuable Blades Suit For Different Oral Structure | Battery Type: | Lithium Ion Battery |
| Battery Working Time: | Continous Use ≥ 350 Mins | ||
| High Light: | Pediatric Disinfection Video Laryngoscope,Intubation Visual Endoscope,Visual Pediatric Video Laryngoscope |
||

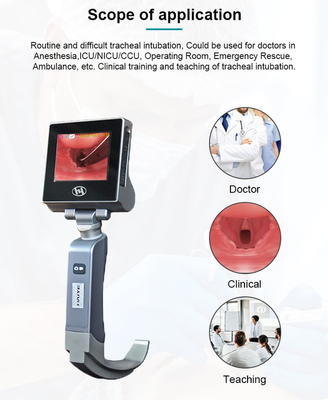

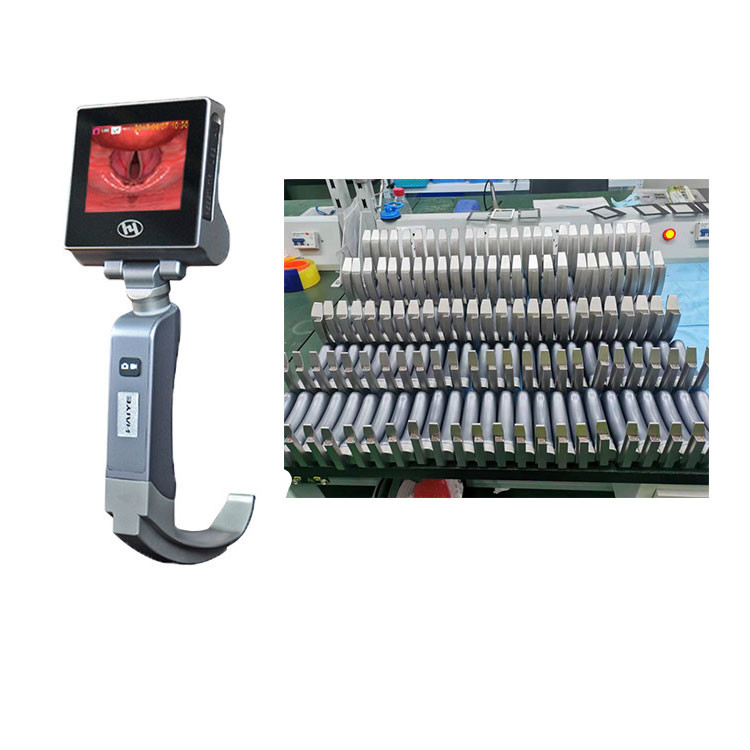

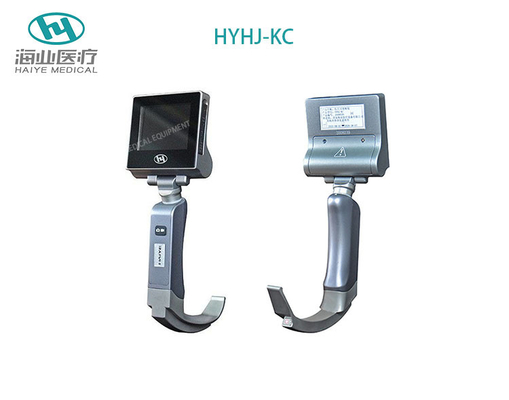

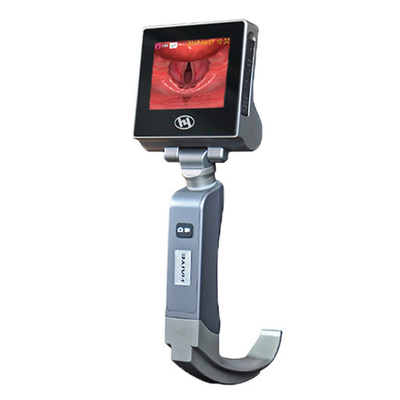

Disinfection Video Laryngoscope For Fast and Reliable Intubation Visual Endoscope
This machine has the advantages of novel design, beautiful appearance, small size, portability, complete function and simple use. This machine is a medical visual laryngoscope which integrates functions, portability, practicability, durability and high configuration, it is a tailor-made for people’s conscience! It is an ideal teaching tool for hospital first aid, clinical application and trachea intubation lead-in teaching.
1. With high precision, full mold manufacturing process, stainless steel reinforcement, not easy to damage, long service life;
2. With 3.0 inch TFT color display screen, large angle rotation up and down, left and right;
3. The machine adopts imported high-capacity lithium battery, lasts for more than 350 minutes;
4. With pictures, video, freeze and other functions, and can store and export;
5. Unique dual anti fog function, that is, open and use, no preheating, intubation without blind area;
6. With three different type of cameras, five different blades are available for adults, children and newborns..
7. Mature, reliable, full-featured electronic solutions and high-definition digital camera system, with 3 inch TFT color display screen, the image restoration effect is good.
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and vedio | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |

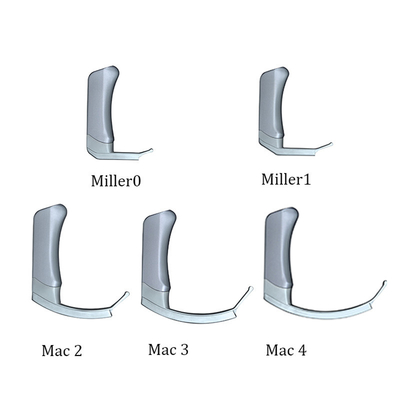

| laryngoscope | 5 reusable blades from infant to adult | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Double fog protection
Boot can be used, no need to preheat in advance, the house effect is obvious, intubation without blind area
One key freeze
In the process of use at any time to freeze the picture, and clinical operation and clinical teaching
Take pictures and video
One-click operation is convenient for clinical use
Data storage interface, collection and export
USB interface for charging and data collection, the standard large-capacity TF card for data removal and data export
Welcome to inquiry if you have any interests!
OEM order is acceptable.
