Product Details:
|
| Product Name: | Reusable Video Larygoscope | Material: | 316 Medical Stainless Steel |
|---|---|---|---|
| Display: | 3 "TFT Color Screen | Resolution: | 960*480 |
| Pixel: | 2 Million | Carema: | CMOS, Double Anti Fog |
| Viewing Angle: | 70°± 2° | Depth Of Fields: | 3~100mm |
| Warranty: | 1 Year | OEM Service: | Available |
| OEM QTY: | 50 Units | ||
| High Light: | Reusable Video Laryngoscope Set,5 Blades Pediatric Video Laryngoscope,Adult Reusable Video Laryngoscope |
||

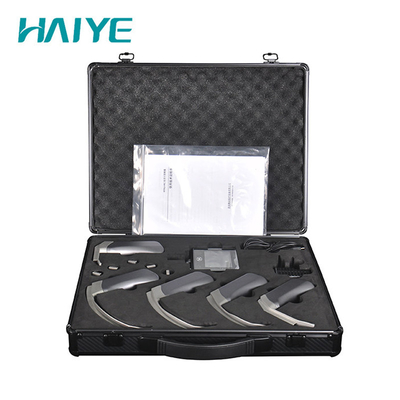

5 Blades Reusable Video Laryngoscope Set For Adult Pediatric OEM Service Available
Description of Products:
The product HYHJ-KC’s design fully takes into account the particularity of clinical use, It adopts a large number of medical grade metal materials and advanced processing technology; optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.
Product features:
simple and graceful, clear imaging, simple operation, complete specifications. Products with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions. The large-capacity battery lasts longer, and the display can rotate from front to back, left to right.
Product configuration:

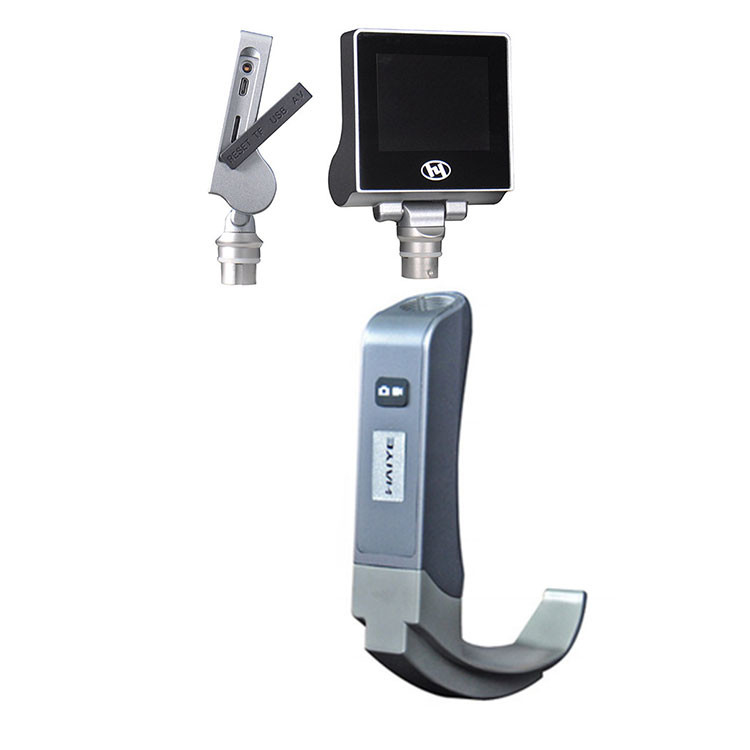

In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |

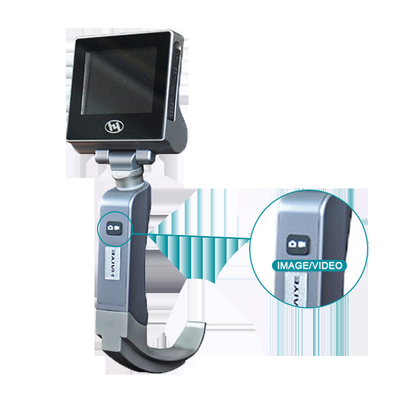

| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | Suit for different oral structure, aseptic packaging for single use | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Haiye is designed to produce practical, durable and easy to use portable video laryngoscope, the whole machine adopts a unique streamlined integrated design, in line with the principles of ergonomics, to minimize the damage to the mouth and throat, most difficult airway intubation can provide an effective solution.Our high standard dust-free assembly workshop, standardized aseptic production workshop, well-equipped laboratory and a high-quality, efficient entrepreneurial team, can provide you an effective solution for difficult airways intubation.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
