Product Details:
|
| Resolution: | 960*480 | Pixel: | 2 Millin |
|---|---|---|---|
| Display: | 3 "TFT Color Screen | Effective Depth Of Field: | 3～100mm |
| Field Angle: | 70±2º | Battery Cyclic Charging: | ＞800 Times |
| Blades: | Disposable, Different Sizes | Warranty: | 1 Year |
| Host Key: | Freeze Frame, Take Photo And Vedio | OEM Service: | Yes, Qty > 50 Units |
| High Light: | Usb Airway Laryngoscope,Integral LED Light Airway Laryngoscope,Airway Intubation Pediatric Video Laryngoscope |
||
Airway Laryngoscope For Intubation Freeze frame, take photo and video

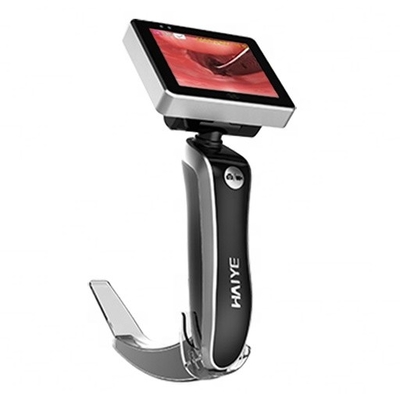

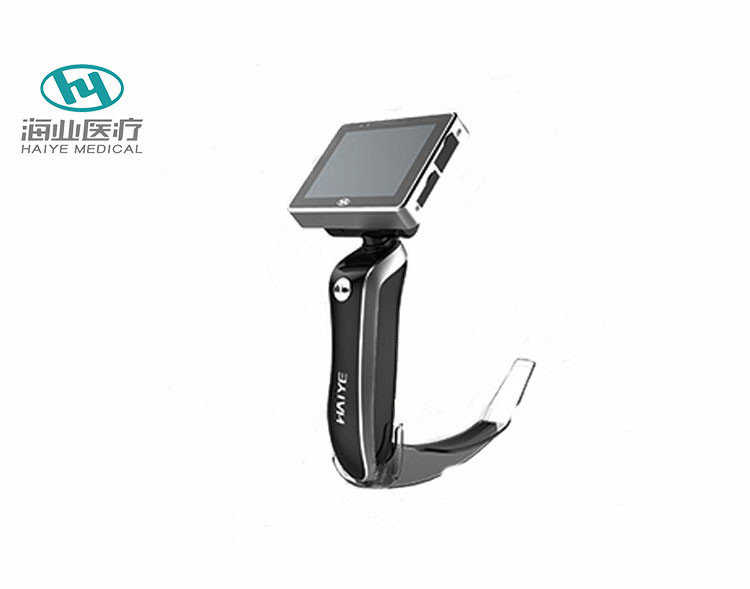

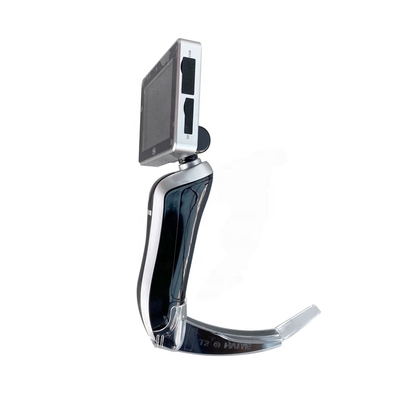

HYHJ-1330Ⅰ,Ⅱ,Ⅲ Medical Visual Laryngoscope
Main Features :
HYHJ-1330 Medical visual laryngoscope is the latest product of our company.The machine is novel in design, beautiful in appearance, small in portability, complete in function and simple in use,It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.
range of application:
pre-hospital emergency medicine resuscitation
anaesthesia difficult airway intensive care
◆It has high precision and full mold production process, and has long service life.
◆ The machine adopts an imported large capacity lithium battery, which can be used for more than 350 minutes.
◆ It has the functions of photographing, video, freeze-frame and so on, and can be stored and exported;
◆ The special anti fogging function can be used normally for 3 minutes by opening the machine, and there is no blind zone in the intubation.

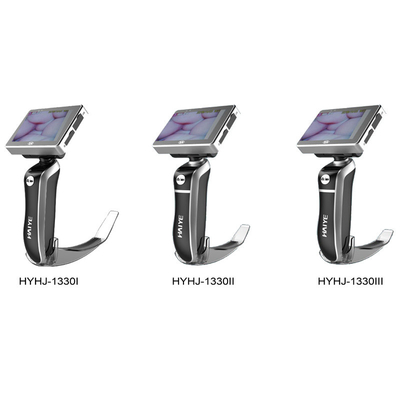

◆ The machine has three different specifications, corresponding to three types of camera, suitable for three different laryngoscope lenses, adults, children, infants and young children can be used.
◆ The laryngoscope blade is sterilized in one time to prevent cross infection.
◆ Mature and reliable electronic scheme and high definition digital camera system, with 3 "TFT color display screen, image reduction effect is good;
Technical Parameter:
◆ Resolution:960×480
◆ Pixel:200万
◆ Effective depth of field:3～100mm
◆ Field angle:70±2º
◆ Battery endurance:≥6h
◆ Charging time:≤4h
◆ Battery life:Cyclic charging＞800 times
◆ Display: 3 "TFT color display screen
◆ Angle of rotation before and after the display:0º～135º
Left and right angle of rotation:0º～275º
◆ Light source with high power waterproof LED light source, light illuminance:≥3000lux
Work Environment:
◆ Temperature:5℃～40℃
◆ Humidity:≤80%
◆ Atmospheric pressure:860hpa～1060hpa
◆ Charger input:100～240V,50/60Hz,0.35A
◆ Charger output:5V,2000mA
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Welcome to inquiry if you have any interests!
OEM order is acceptable.
