Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog

Certification
China Xian Haiye Medical Equipment Co.,Ltd certification
China Xian Haiye Medical Equipment Co.,Ltd certification
I'm Online Chat Now

Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog

Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog
Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog

Large Image :  Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog

Product Details:
Place of Origin: Shaanxi China
Brand Name: HAIYE MEDICAL
Certification: CE/FDA/ISO13485/ISO9001
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: >850/set
Packaging Details: cartoon/protective box
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 1000sets

Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog

Description
Material: Medical-grade Metal Camera: Digital Camera System
Blades: Reusable, Different Sizes Carema Resolution: 1600*1200
Display: 3 "TFT Color Screen Viewing Angle: 70°± 2°
Depth Of Field: 3~100mm Battery Working Time: Continous Use ≥ 350 Mins
Warranty: 1 Year OEM Service: Yes, Qty > 50 Units
High Light:

Usb Charge Pediatric Video Laryngoscope

,

Digital Camera System Pediatric Optical Laryngoscope

,

Double Anti Fog Flexible Video Laryngoscope

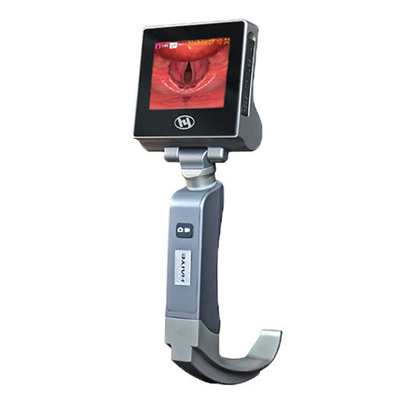

Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog



HAIYE HYHJ-KC

  • The shell of the whole machine is made of medical-grade metal material, the high-grade, atmospheric, thick, solid handle is comfortable to hold;
  • Product configuration is rich, up to five specifications of the camera system can be replaced between different patients, to achieve a multi-purpose machine;
  • Digital camera system with high - resolution display, make intubation easier;
  • The laryngoscope is made of medical grade stainless steel, which can be used repeatedly after disinfection which reduce the cost;
  • Photo, video, freeze frame, storage, external play, large capacity battery, complete function

Technical feature

Name Technical term Technical Index













Machine

Resolution 1600 x 1200
Pixels 2 million
Display 3 "TFT color screen
Viewing angle 70°± 2°
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
laryngoscope Suit for different oral structure



Power Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output



Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins



Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog 0



Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog 1Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog 2Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog 3

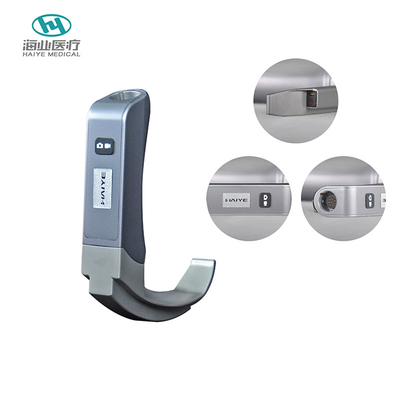

  • Powder Button: On/Off and freeze frame
  • Display module: 3’’ high definition display, image much clearer; metal alloy swing frame, can rotate large angle from left, right, front, and back
  • Alloy handle: Ergonomic design, more comfortable grip
  • Medical stainless steel: suitable for different ways of disinfection, reusable
  • USB port: charging and data transfer
  • Photo button/Shutter: Short press-take photo, long press-vedio recording
  • 200 million pixel double anti-fog carema system

Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog 4


Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are wiedly used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: U.S., Middle East, Australia, Korea, Russia, Pakistan...

Digital Camera System Usb Charge Pediatric Video Laryngoscope Double Anti Fog 5


Welcome to inquiry if you have any interests!

OEM order is acceptable.
