Cheap Price Good Quality 70 Degree Video Miler Adult And Pediatric Laryngoscope Convenient Operation Video Laryngoscope
The larynx is located deep in our throats with a complicated physiological structure. Serious complications, such as tracheal injuries, can be caused when challenging endotracheal intubation is involved. The CVL series video #laringoscopio can improve glottic exposure eyesight, shorten intubation time, and increase the success rate of endotracheal #intubación on the first attempt to achieve fewer complications, such as tracheal injuries resulting from difficult intubation, making intubation faster, more accurate, and kinder.
Planning for the difficult airway, expected or unexpected, is no longer a challenge when intubating a patient. Whether an adult or a child, with HAIYE , you are always prepared for the difficult airway.
HAIYE is designed to enable quick and easy intubation with its display providing a consistent clear real-time view of your patient’s airway. The single-use blades are available in 5 different sizes and offers the choice of two blade types, allowing you to keep your preferred intubation technique.
Get more of the light you want and less of light you don’t. Our video laryngoscopes deliver a high-resolution image powered by the latest advancements in lighting and camera technology, for enhanced airway views
Get the confidence of HAIYE whenever and wherever you need it. Intubate routine and difficult airways with the handheld, portable video laryngoscopy system designed for rapid, first-pass success.

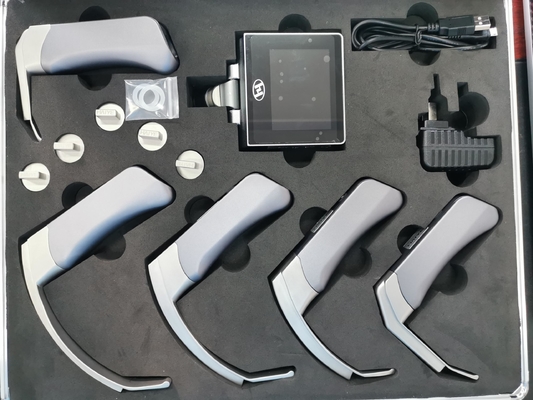

Haiye Video Laryngoscope is a handheld and user-friendly video laryngoscope. Designed to provide a consistent, clear, real-time view of the patient's airway and to assist physicians in obtaining faster, safer tracheal intubatrion.
Main Feature of video laryngoscope:
1. 3.0 inch Colorful LCD screen.
2. Camera Resolution: 2 M pixel.
3. Disposable blade and Reusable Blade:Aseptic packaging,strength,comfortable and reliable.
4. Compatible with blade perfect.
5. Video synchronous transmission to big monitor by AV cable.
6. Easy to input the tracheal tube by good view of glottis.
7. More curved blade angle makes it can cope with most difficult airway management.
8. Anti-fog,no need preheating.
| Parts |
Description |
Technical Index |
| Machine |
Screen |
3 inch LCD |
| Resolution |
960*480 (RGB) |
| Viewing angle |
≥70º |
| Power |
<2W |
| Display front and back rotation Angle |
0 º~175 º |
| Weight |
225g |
| Camera |
Illuminance |
≥3000 LUX |
| Resolution |
1280*720 px |
| Image/Video function |
Image/ Video function |
Yes |
| Output |
USB output, Easy to storage and establish image/video |
| Memory type |
Micro SD card 32GB |
| Battery |
Battery Type |
Rechargable lithium battery |
| Capacity |
3400mAh |
| Cycle life of battery |
>600 times |
| Battery working time |
>400min |
| Charging time |
<2(hrs) |
| Charging Port |
Micro USB |
| Power Adapter |
Input |
100-250V, 50 Hz. |
| Output |
5V1A |
Advantage of video laryngoscopes
*Anti-fog
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
Application of video laryngoscope
1. Clinical endotracheal intubation.
2. Simulation practice
3. Clinical teaching
4. Difficult airway intubation.
Xi'an Haiye Medical Equipment Co., Ltd., established in 2013, is a comprehensive medical equipment manufacturer integrating R&D, production, sales and service.We mainly research visual medical products.
