Product Details:
|
| Product Name: | Video Laryngoscope | Display: | 3″HD LCD Screen |
|---|---|---|---|
| Pixel: | 3 Million | DOF: | 3～100mm |
| Space Resolution: | ≥8lp/mm | Lux: | ≥2600 |
| Memory Space: | 16G Card，max 64G | Viewing Angle: | 70°± 9° |
| Blades: | 5+3 Disposable Laryngoscopes |

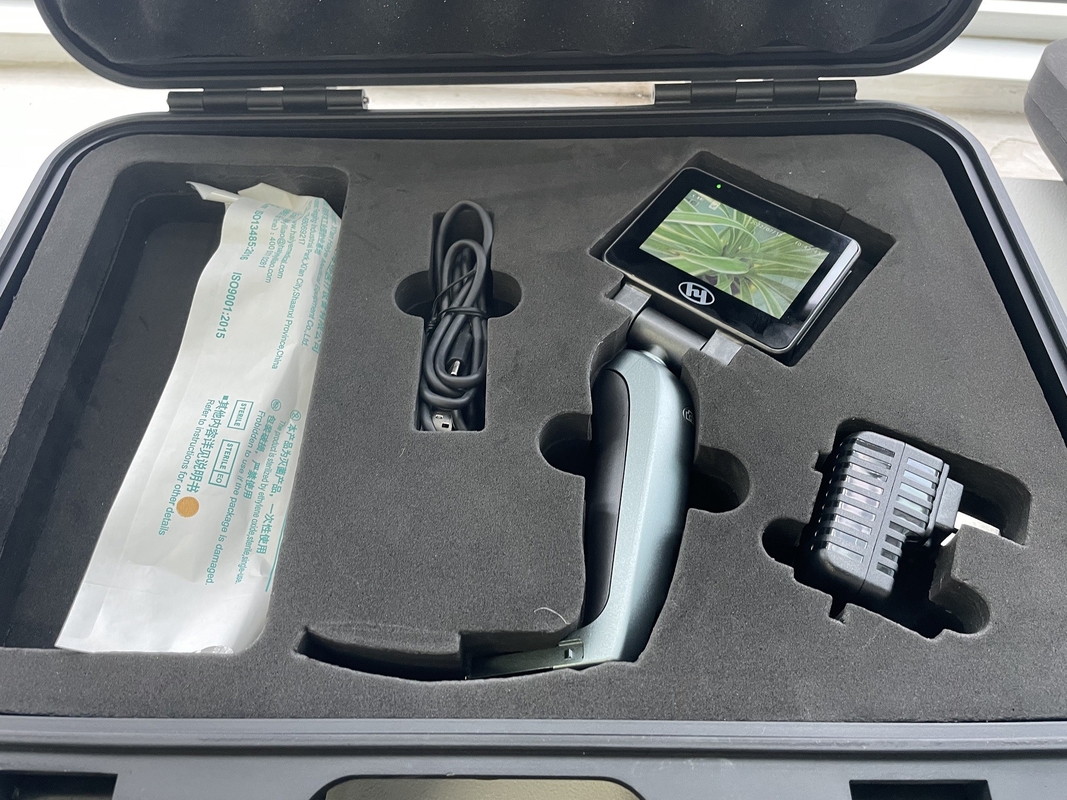

3 Million Pixel Display Video Laryngoscope 5+3 Disposable Blades Video Laryngoscope

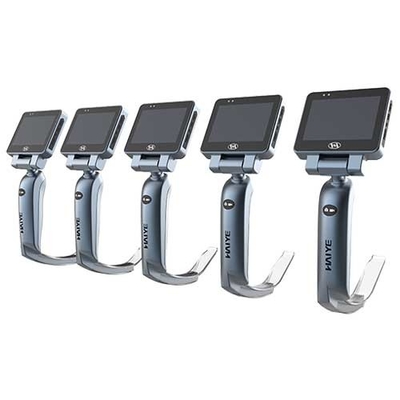

Two main units HYHJ-KM3 and HYHJ-KM5 video laryngoscope can carry 5+3 kinds of disposable laryngoscopes blades respectively
HYHJ-KM video laryngoscope is Type-C interface, can charge and output data, which battery content is: 3400mAh
Function tem.: -10～50℃, RH: ≤93% Store tem. -40～70℃, RH: ≤93%
Haiye-KM video laryngoscope 16G memory card + max 64G
HYHJ-KM video laryngoscope's video, photo, also can store and export function

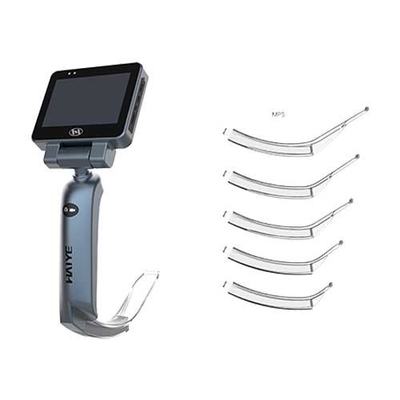

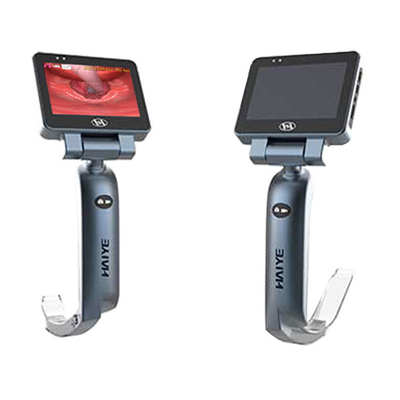

There are two model type: adult & child for HYHJ-KM Video Laryngoscope, 5 +3 disposable blades, can suit for all kinds of oral structure intubation
Adult model: 5 disposable blades; Child model: 3 disposable blades
Aseptic packaging for single use
Technical Data
| Name | Technical term | Technical Index |
|
Machine |
Resolution | 960 x 480 |
| Pixels | 3 million | |
| Display | 3.0 TFT color screen | |
| Viewing angle | 70°± 9° | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | Type-C | |
| laryngoscope | Suit for different oral structure,aseptic packaging for single use | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -10°~ 50°C |
| Relative humidity | ≤93% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 70°C |
| Relative humidity | ≤93% |
Display:3″HD LCD screen
Display pixel:3 million
Viewing angles:70º±9º
Depth of Field/DOF:3～100mm
Space Resolution:≥8lp/mm
Lux:≥2600
Rotation angle: front&back: 155°±10°,
left&right: 275°±10°

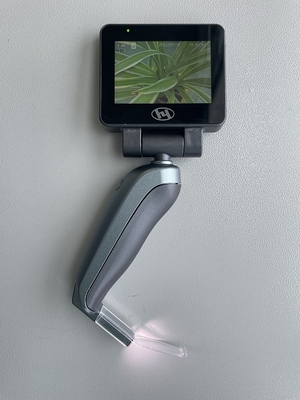

Unique double anti - fog function, quickly work out of the box, no need to preheating, can intubation without blind area
