Product Details:
|
| Product Name: | Rigid Handle Video Laryngoscope | Blades Type: | Disposable |
|---|---|---|---|
| Application: | Emergency Rescue | Display Resolution: | 960 X 480 |
| Camera: | Dual Anti-fog, Intubation Without Blind Area | Powder Input: | 100 - 240V 50/60Hz,0.35A |
| Powder Output: | 5V,2000mA, USB Output | Cycle Life Of Battery: | > 800 Times |
| Warranty: | 1 Year | ||
| High Light: | Rigid Handle Disposable Video Laryngoscope,Emergency Rescue Disposable Video Laryngoscope,Pediatric Rigid Endoscopes |
||

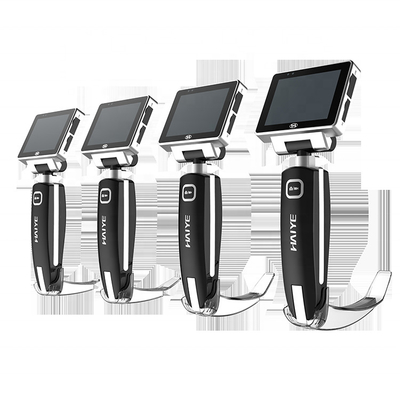

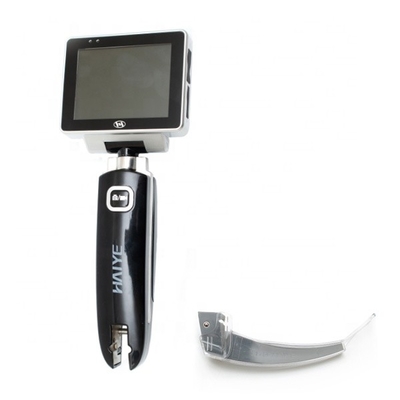

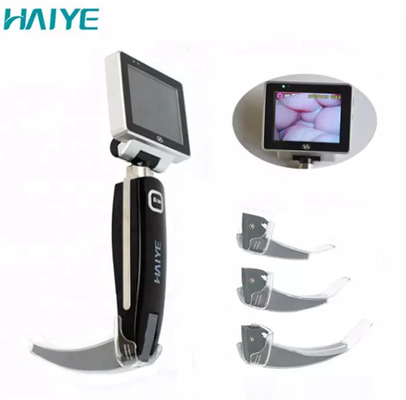

Rigid Handle Disposable Video Laryngoscope Endoscopes For Emergency Rescue
HYHJ-1320 Video laryngoscope can One key boot without pre heating
HYHJ-1320 Video laryngoscope's power key contains scale freezing function
HYHJ-1320 Video laryngoscope's standard 3 inch screen clarity high practiability
HYHJ-1320 Video laryngoscope's frame is made of medical 304 stainless steel with high strength and high hardness
HYHJ-1320 Video laryngoscope's Camera button of HYHJ-1320 Video laryngoscope's contaions the vedio function
HYHJ-1320 Video laryngoscope's Camera system with medical 304 stainless steel
HYHJ-1320 Video laryngoscope has Double anti fog, no blind area
HYHJ-1320 Video laryngoscope has Transparent laryngoscope blade
HYHJ-1320 Video laryngoscope's Different specifications meet various oral structure, asepsis packing a one –time use
Technical feature of HYHJ-1320 VIDEO LARYNGOSCOPE
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |

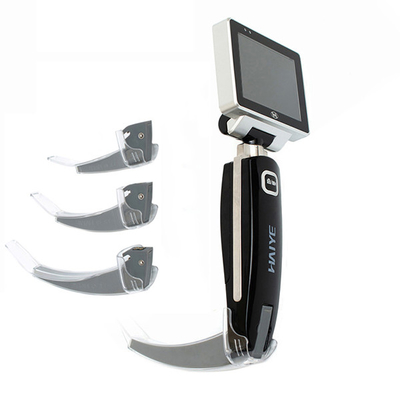

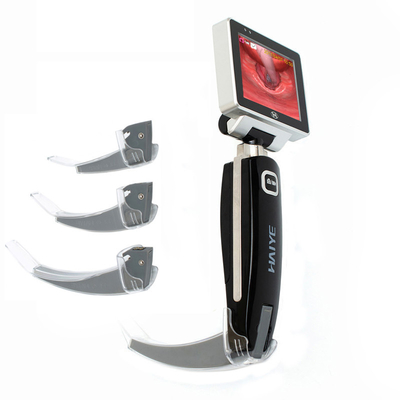

| Blades | 3 disposable blades suit for different oral structure | |
|

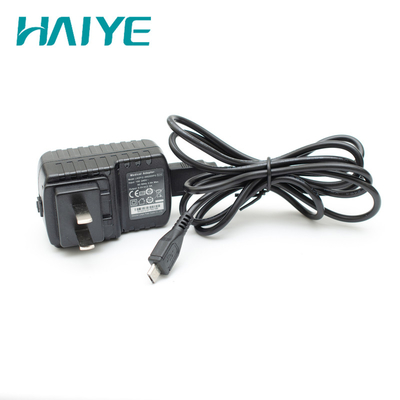

Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Application of HYHJ-1320 video laryngoscope
HYHJ-1320 Videolaryngoscope allowing the user to perform tracheal intubation under visual observation, often used to provoke the person's epiglottis to expose the glottis. OptimizE and improve the appearance and shape of the HYHJ-1320 video laryngoscope, make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract.
HYHJ-1320 Videolaryngoscopeis fit for medical tracheal intubation, simulated exercise, ICU/ pediatric department, clinical teaching and difficult airway intubation in anesthesiology department, emergency department,ambulance and other medical departments at all levels
