Product Details:
|
| Product Name: | Disposable Video Laryngoscope | Application: | Hospital ENT, ICM, Emergancy... |
|---|---|---|---|
| Suit People: | Adult, Children, Neonates | Blades Type: | Disposable Laryngoscope Tablets |
| Battery Type: | Lithium Ion Battery | Viewing Angle: | 70 ± 2 Degree |
| Depth Of Field: | 3~100mm | Charging Time: | <4h |
| High Light: | ENT Disposable Video Laryngoscope,Neonates Disposable Video Laryngoscope,Hospital Neonatal Video Laryngoscope |
||

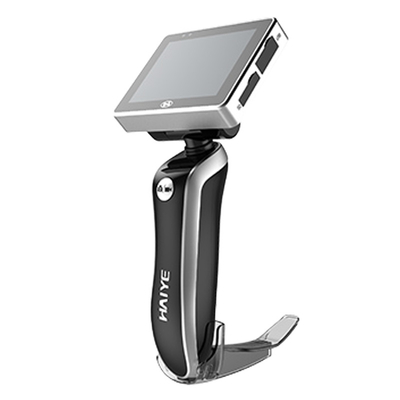

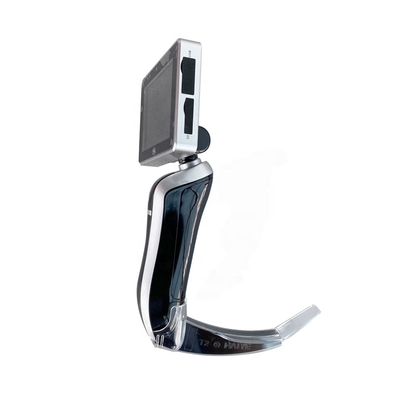

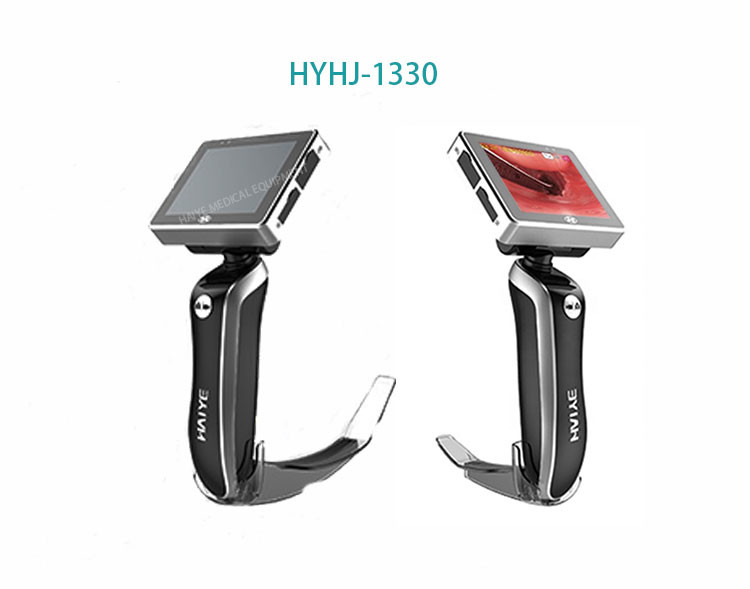

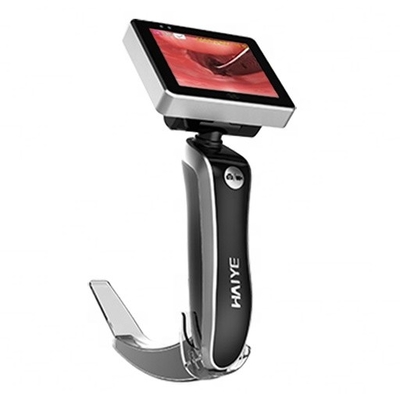

Hospital ENT Disposable Video Laryngoscope For Neonates
Product Features:
Intubation with high precision full mold manufacturing process, stainless steel reinforcement, not easy to damage, long service life;
The machine adopts imported large capacity lithium battery, which can be used for more than 300 minutes.
It has the functions of taking pictures, video recording, freeze frame and so on, and can be stored and exported;
Unique dual anti-fog function, ready to use, no preheating, intubation without blind area;
It is standard equipped with three cameras of different models, suitable for three different laryngoscopes, suitable for different people.
Disposable laryngoscope tablets are packaged and sterilized to prevent cross infection. Mature and reliable fully functional electronic scheme and HD digital camera system, with 3 "TFT color display screen, good effect of restoration.
Technical data
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Carema Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Roatate angle | front to back: 135 º, left to right: 275 º | |
| Blades | Suit for different oral structure,aseptic packaging for single use | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Why Choose Vedio Laryngoscope?
1. Any doctors familar with tradional laryngoscope can smoothly use it;
2. Showing the internal oral structure very clearly, easily capture the photo and vedio;
3. Keep distance between doctor and patient, greatly reduce the cross-infection possiblity;
4. Significantly improved glottic exposure grade, nearly 99% of the patients can reach grade I-II, and the grade of glottic exposure can be reduced by at least I grade;
5. Shorter the endotracheal intubation time , increase the success rate and also lower the esophageal intubation rate;
6. The forward view do not need three-axis line, the range of head and neck operation is small, Which is suitable for cervical spine injury cases;
7. Lighter operating force,less inquiry,and smoother hemodynamics.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
