Product Details:
|
| Product Name: | Digital Video Laryngoscope | Display: | 3"TFT Color Display |
|---|---|---|---|
| Resolution: | 960 X 480 | Pixels: | 2 Million |
| Viewing Angle: | 70 ± 2 Degree | Depth Of Field: | 3~100mm |
| Carema Resolution: | 1600 X 1200 | Material: | Medical Stainless Steel |
| Blades: | Mac Miller 5 Resuable Blades | OEM: | Yes |
| High Light: | Digital Pediatric Video Laryngoscope,5 Reusable Blades Neonatal Video Laryngoscope,Mac Miller Blades Pediatric Video Laryngoscope |
||

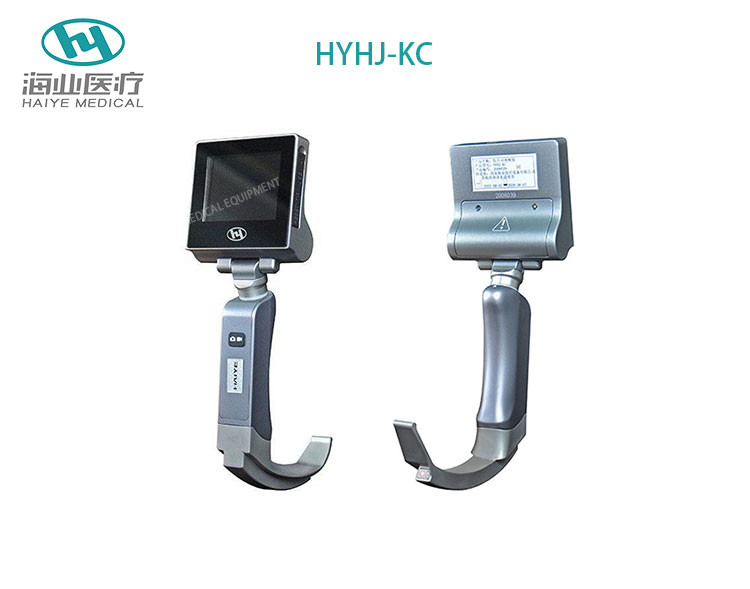

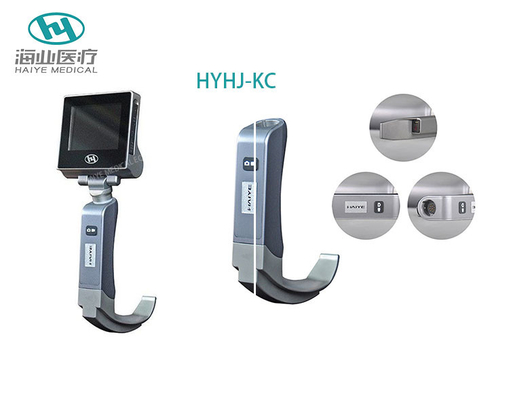

Digital Pediatric Video Laryngoscope With Mac Miller 5 Resuable Blades HYHJ-KC
HYHJ-KC Video laryngoscope:
The product HYHJ-KC video laryngoscope ’s design fully consider the feature of clinical use, the video laryngoscope advanced processing technology; optimized and improved the physical design, HD image and easy to operate w.
Advantage:
Clear idsplay, simple operation, cover specifications. HYHJ-KC Products freeze frame, photography, video shooying, USB output, data record. The battery lasts more than 350 mins, and the screen can rotate from front back, left, right.
HYHJ-KC Video laryngoscope configuration:

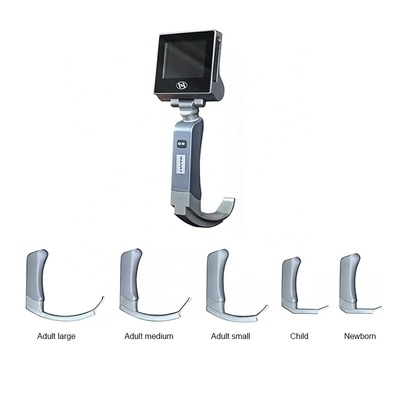

In order to enhance the convenience of video laryngoscope use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications of HYHJ-KC: adult large, adult medium, child, newborn, premature).
The out part of the video laryngoscpe is made by medical-grade parts, the high-grade, atmospheric, thick, solid shank is comfortable to carry;
Digital camera system with hd 960 x480 - resolution screen, make intubation easier;
Configuration of video laryngoscope is rich, up to five specifications of the camera system can be replaced between different patients, to achieve a multi-purpose machine;
Excellent performance of video laryngoscope: freeze frame, storage, Photo, video, external play, large capacity battery, complete function
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |

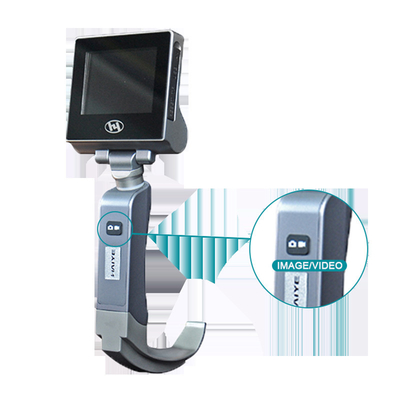

| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |

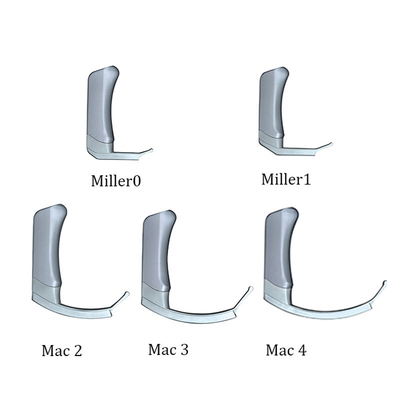

| Blades | 5 resuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Welcome to inquiry if you have any interests!
OEM order is acceptable.
