Product Details:
|
| Product Name: | Reusable Blades Video Laryngoscope | Display: | 3 "TFT Color Screen |
|---|---|---|---|
| Resolution: | 960*480 | Pixel: | 2 Million |
| Carema: | CMOS, Double Anti Fog | Carema Resolution: | 1280 X 720 |
| Viewing Angle: | 70°± 2° | Depth Of Fields: | 3~100mm |
| Warranty: | 1 Year | OEM Service: | Yes, Qty > 50 Units |
| Input: | 100 - 240V50/60Hz,0.35A Digtal Input | ||
| High Light: | 240V Pediatric Video Laryngoscope,Digital Reusable Blades Pediatric Video Laryngoscope,60hz Neonatal Video Laryngoscope |
||

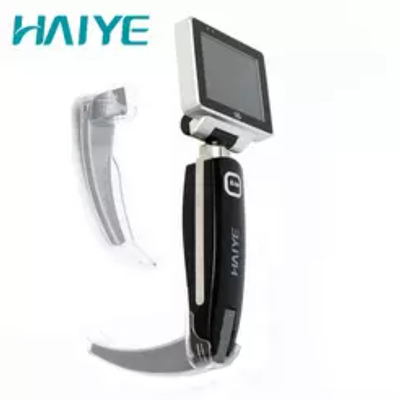

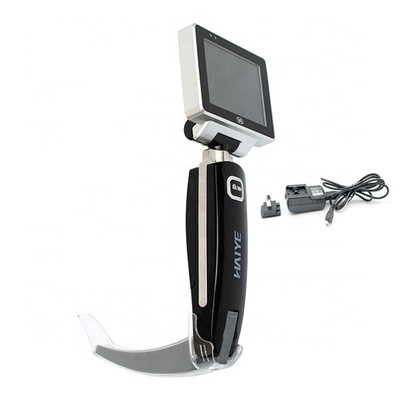

Digtal Input Reusable Blades Pediatric Video Laryngoscope 100 - 240V 50 / 60Hz 0.35A
Technical parameter
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70°± 2° | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |

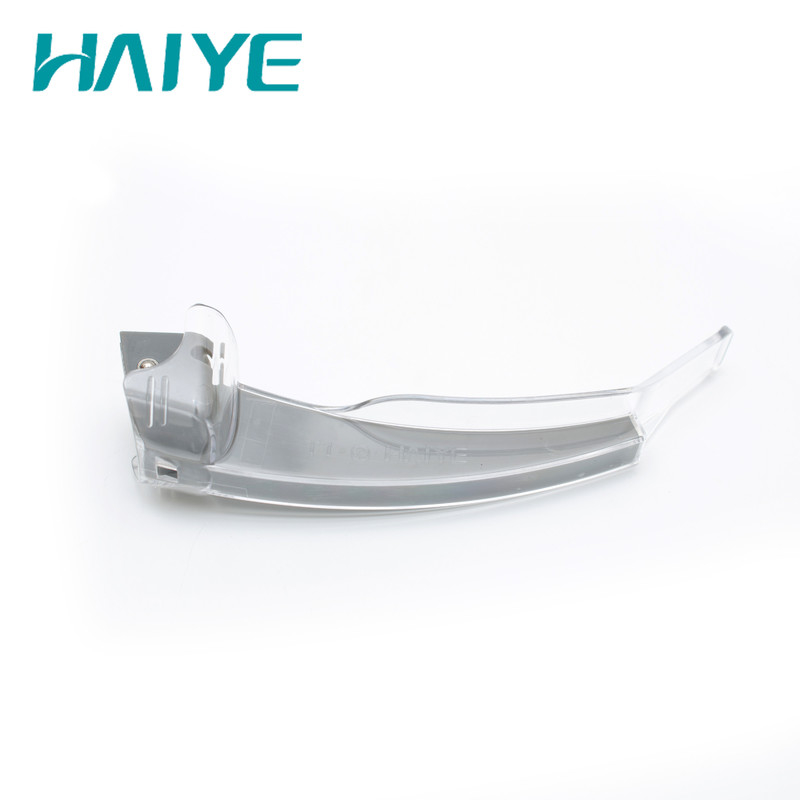

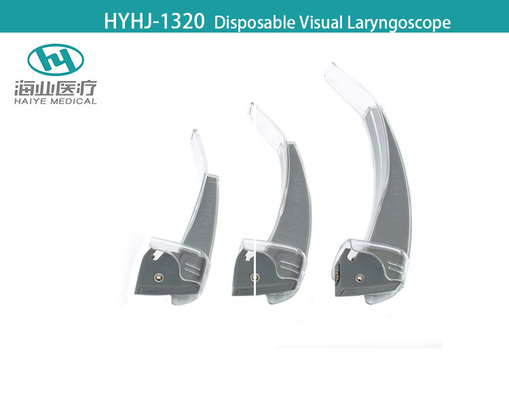

| Blades | 3 types disposable blades, aseptic packaging for single use | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Why Choose Vedio Laryngoscope?
1. Any doctors familar with tradional laryngoscope can smoothly use it;
2. Showing the internal oral structure very clearly, easily capture the photo and vedio;
3. Keep distance between doctor and patient, greatly reduce the cross-infection possiblity;
4. Significantly improved glottic exposure grade, nearly 99% of the patients can reach grade I-II, and the grade of glottic exposure can be reduced by at least I grade;
5. Shorter the endotracheal intubation time , increase the success rate and also lower the esophageal intubation rate;
6. The forward view do not need three-axis line, the range of head and neck operation is small, Which is suitable for cervical spine injury cases;
7. Lighter operating force,less inquiry,and smoother hemodynamics.
Haiye is designed to produce practical, durable and easy to use portable video laryngoscope, the whole machine adopts a unique streamlined integrated design, in line with the principles of ergonomics, to minimize the damage to the mouth and throat, most difficult airway intubation can provide an effective solution.

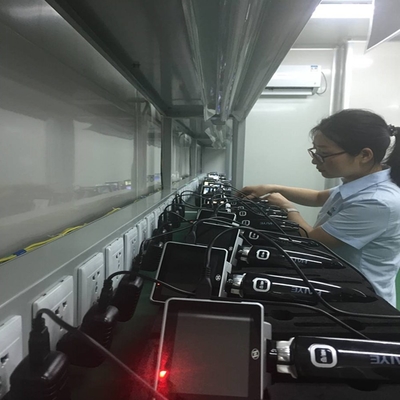

Our high standard dust-free assembly workshop, standardized aseptic production workshop, well-equipped laboratory and a high-quality, efficient entrepreneurial team, can provide you an effective solution for difficult airways intubation.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
