Product Details:
|
| Display: | 3 "TFT Color Screen | Resolution: | 960*480 |
|---|---|---|---|
| Pixel: | 2 Million | Depth Of Field: | 3～100mm |
| Field Angle: | 70±2º | Charing Time: | ≤4h |
| Stand-by Time: | ≥6h | Battery Life: | Recharge＞800times |
| WorkingTemperature: | 5℃～40℃ | Charger Input: | 100～240V，50/60Hz,0.35A |
| Charger Output: | 5V,2000mA | Blades: | Disposable, T1, T2,T3 |
| Warranty: | 1 Year | OEM MOQ: | ≥ 50 SETS |
| High Light: | 3.0 Inch Anesthesia Optical Laryngoscope,USB Optical Laryngoscope,Anesthesia Flexible Video Laryngoscope |
||
Main Features :

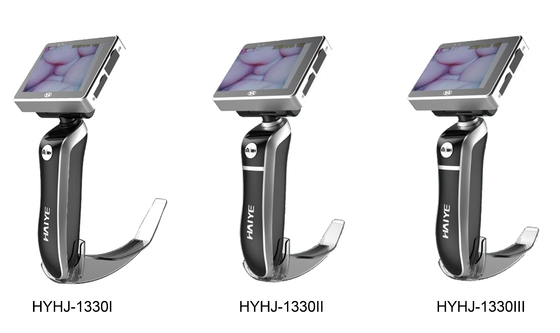

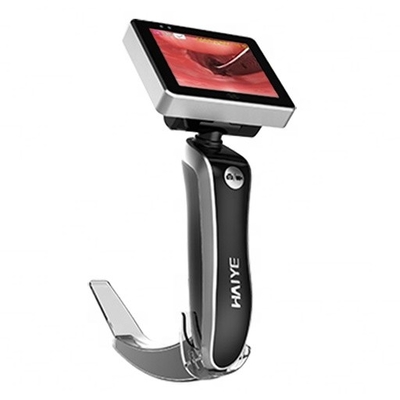

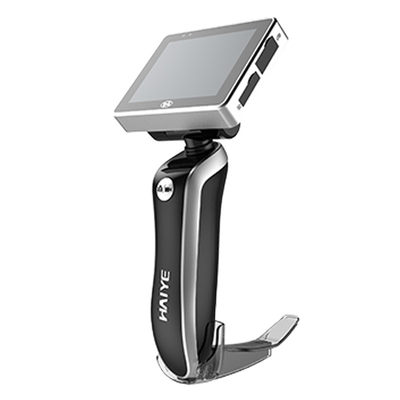

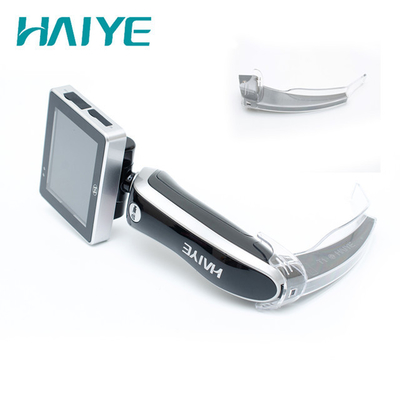

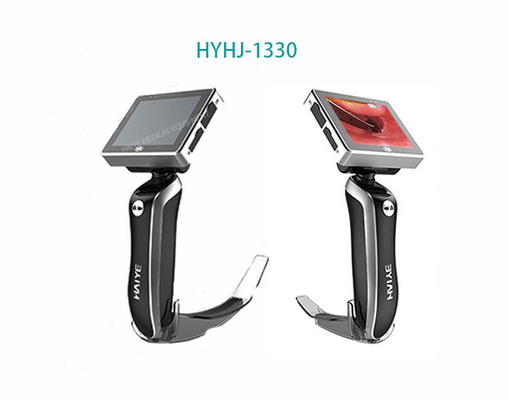

HYHJ-1330 Medical visual laryngoscope is a product that can be reused after being sterilized on the basis of HYHJ-1320 medical visual laryngoscope. The machine is novel in design, beautiful in appearance, small in portability, complete in function and simple in use,It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.
◆With high precision and full mold production process, stainless steel reinforcement, not easy to damage, long service life;
◆ The machine adopts an imported large capacity lithium battery, which can be used for more than 350 minutes.
◆ It has the functions of photographing, video, freeze-frame and so on, and can be stored and exported;
◆ The special anti fogging function can be used normally for 3 minutes by opening the machine, and there is no blind zone in the intubation.
◆ The machine has four kinds of specifications, which are suitable for adults, adult medium, children and newborns.
◆ The camera system is made of 304 stainless steel, which can be reused after disinfection, and the user can save the cost.
◆ Mature and reliable electronic scheme and high definition digital camera system, with 3 "TFT color display screen, image reduction effect is good;
Application
It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).
It is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU/ pediatric department, ambulance and other medical departments at all levels
Technical Feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| Blades | 3 Disposable blades, aseptic packaging for single use | |
|
Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: U.S., Middle East, Australia, Korea, Russia, Pakistan...
Welcome to inquiry if you have any interests!
OEM order is acceptable.
Attn: Kristen Shi
Contact Person: Mr. DHL
Tel: 19866128113
