Product Details:
|
| Material: | S/S | Reusable: | Yes |
|---|---|---|---|
| Application: | Endotracheal Intubation | Battery: | Li Rechargable |
| Screen Size: | 3 Inch Color Screen | Camera: | 2 Mega |
| Ant-fog: | Yes | Illuminance: | ≥3000 Lux |
| High Light: | Airway Rigid Video Laryngoscope,Rechargeable Rigid Video Laryngoscope,SS Portable Video Laryngoscope |
||

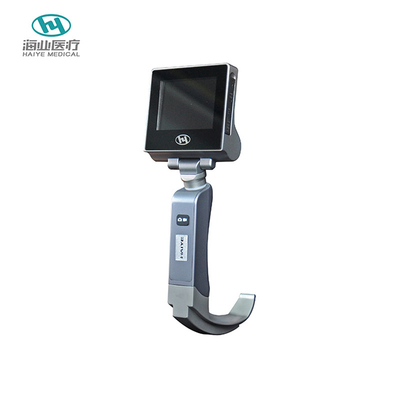

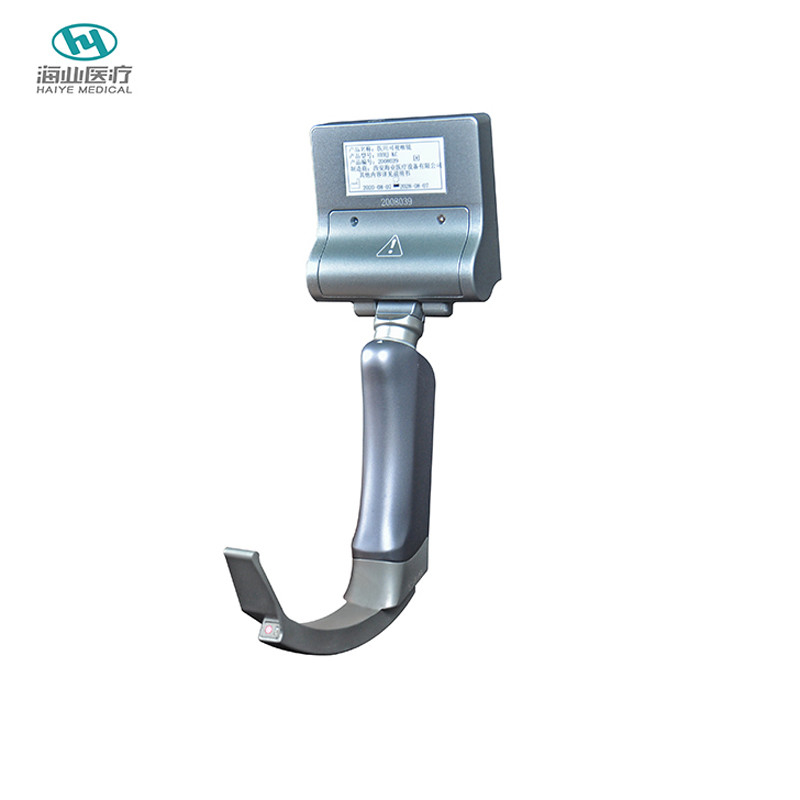

Remarkable Durable Rigid Video Laryngoscope for Difficult Airway Management
What is a rigid video laryngoscope?
What is VDL? Video laryngoscopy is a form of laryngoscopy whereby the clinician views the larynx indirectly. Images from VDLs are displayed on a monitor and can be recorded, while the magnification allows for a more detailed examination of the larynx. Video laryngoscopy is also used with rigid transoral laryngoscopy.
Direct Video Laryngoscope main features:
1. Clear view: Large depth of field, no blind area for intubation.
2. High resolution: 2 million pixels camera and 3" TFT clear color screen.
3. Intelligent: Built-in memory card is capable of data storage and output.
4. Faster: Unique anti-fog function, convenient and faster to use for tracheal intubation.
5. Durable: High precision process, ergonomic metal display screen frame and handle, long service life.
6. Convenient: Portable laryngoscope with taking pictures, video recording, and frame freezing function.
7. Reusable: A camera system in medical grade 304 S/S integrated with the handle could be sterilized and reusable.

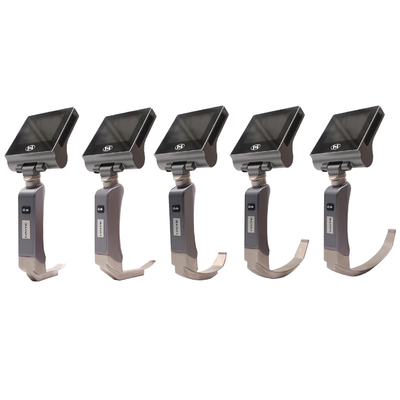

8. Versatile: Provides up to five different camera options. Apply for extreme airways, adult large, adult medium, pediatric and neonate patients.
| Description | |
| Product name | video laryngoscope |
| Power | <2W |
| Screen size | 3 inch LCD |
| Screen resolution | 960*480 pixels |
| Viewing angle | ≥70º |
| Screen tilt angle(back/forth) | 0 º~135 º |
| Screen rotation angle(left/right) | 0º～275º |
| Illuminance | ≥3000 Lux |
| Camera pixels | 2 million |
| Viewing angle | ≥70º |
| Depth of field | 3～100mm |
| Anti-fog | Yes |
| Image/ Video/ Freeze frame function | Yes |
| Output | USB & AV output |
| Memory type | 8GB Micro SD card |
| Battery Type | Rechargable Li-ion |
| Capacity | 3400 mAh |
| Charging cycles | >800 times |
| Charging time | <4 hrs |
| Continuous working time | ≥6 hrs |
| Charging Port | Micro USB |
| Input & output | 100-240V, 50 Hz./5V, 2000mA |
Medical Rigid Video Laryngoscope Package: High-strength protection box
Packaging Details: Standard export carton packing for a medical video laryngoscope
Package size: 415*110*345 cm
Gross weight: 3.20 kg

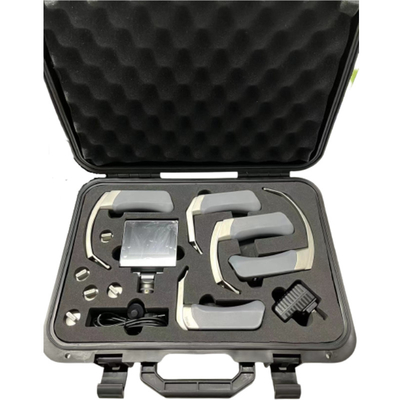

Rigid Video Laryngoscope Standard equipment contains:
1x Main machine
5x Camera systems
5x reusable stainless steel blades
1x Charger
1x Anti-drop suitcase with foam protect in carton
1x Operation manual and warranty card
