Product Details:
|
| Product Name: | Distinguished Rigid Video Laryngoscope | Alias: | Seeing Optical Stylet |
|---|---|---|---|
| Display: | 3 Inch Thin Film Transistor Color Display | Resolution: | 960 X 480 |
| Pixel: | 2 Million | Viewing Angle: | 70 ± 2 º |
| Depth Of Field: | 3~100mm | Roatate Angle: | Front To Back: 135 º, Left To Right: 275 º |
| Internal Electric Source: | Lithium Ion Battery，3.7V | ||
| High Light: | Optical Rigid Video Laryngoscope,Transistor Color Display Rigid Video Laryngoscope,Distinguished Medical Video Laryngoscope |
||

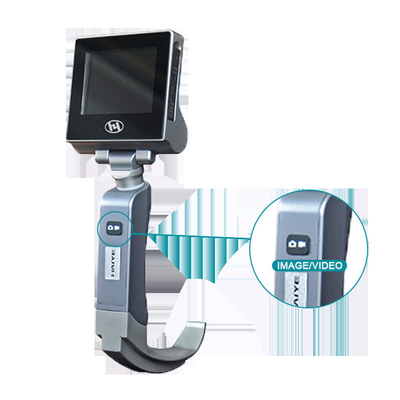

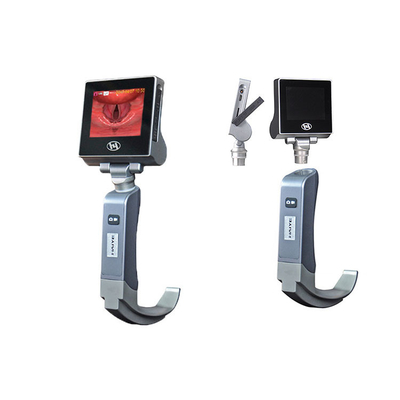

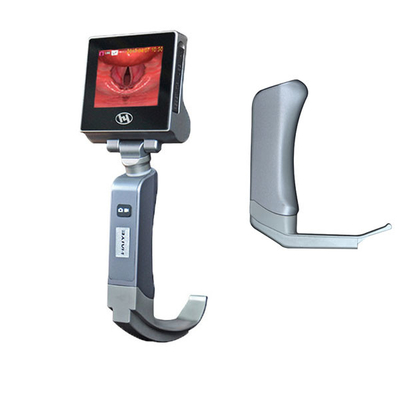

Distinguished Rigid Video Laryngoscope Seeing Optical Stylet with 3 Inch thin Film Transistor Color Display
HYHJ-KC video laryngosccope has 3.0-inch high-definition display with 3~100mm depth of field, close-up intubation imaging is clearer
HYHJ-KC video laryngosccope is easy to operate, one-button operation, anesthesiologists and nurses with experience in traditional laryngoscopy can quickly get started
HYHJ-KC video laryngosccope is medical-grade metal texture, ergonomically designed handle, comfortable to hold
HYHJ-KC video laryngosccope has long standby time, no need to wait for plug and play, no need to warm up in advance

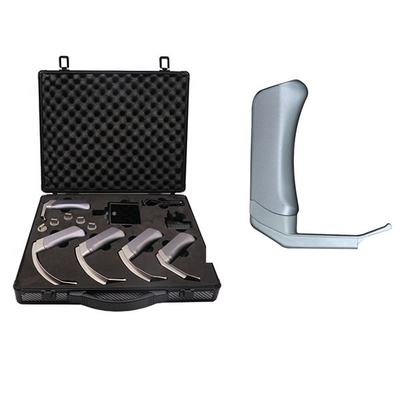

There is a variety of laryngeal lenses are available in different sizes for HYHJ-KC video laryngosccope, which is suitable for a variety of clinical emergency and tracheal intubation teaching cases
The HYHJ-KC video laryngosccope is widely used: all kinds of medical departments can be used: such as ICU, emergency department, anesthesiology, pediatrics, respiratory department, otolaryngology, dentistry and so on
Technical feature of HYHJ-KC video laryngosccope
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope blades | 5 reasuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
5 different sizes of HHYHJ-KC video laryngosccopes: adult large, adult medium, ADULT small and large children, children small and infant
Welcome to inquiry if you have any interests!
OEM order is acceptable.
