Product Details:
|
| Display: | 3 "TFT Color Screen | Material: | 316 Medical Stainless Steel |
|---|---|---|---|
| Resolution: | 960*480 | Carema: | CMOS,double Anti Fog |
| Light Source: | LED >/=3000lux | Battery Life: | Rechargeable>800 Times |
| Stand By: | Continous Use 6h | Working Tem: | -5°~ 40°C |
| Viewing Angle: | 70°± 2° | Depth Of Field: | 3~100mm |
| Warranty: | 1 Year | OEM Service: | Yes, Qty > 50 Units |
| High Light: | Handheld Visual Video Laryngoscope,5 Reusable Blades Handheld Video Laryngoscope,Medical Rigid Video Laryngoscope |
||
Hot Selling Medical Anesthesia Handheld Visual Video Laryngoscope with 5 Reusable Blades
Application

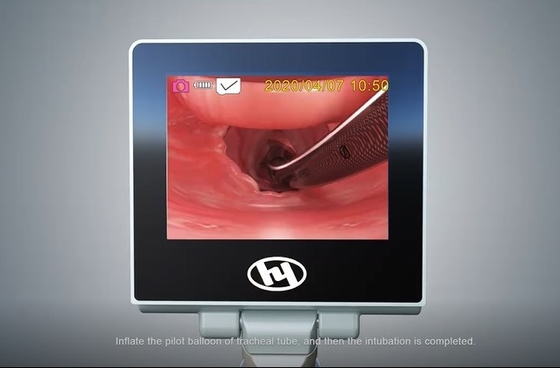

It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Carema Resolution | 1600 x 1200 | |
| Viewing angle | 70°± 2° | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| laryngoscope | 5 Reusable Blades applicable to all oral structure | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V, 2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are wiedly used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: U.S., Middle East, Australia, Korea, Russia, Pakistan...
Welcome to inquiry if you have any interests!
OEM order is acceptable.
