Product Details:
|
| Model Number: | HYHJ-1320 | Dispaly: | 3'' TFT Color Dispaly Screen |
|---|---|---|---|
| Warranty: | 1 Year | Resolution: | 960*480 |
| Battery Life: | ≥6hs | Type: | Anesthesia Equipments & Accesso |
| OEM Service: | Available | Packing: | Protective Box & Carton |
| Function: | Intubation,Endoscope For Diagnostic Equipments,Take Pictures And Videos | ||
| High Light: | Anti Fog Disposable Blade Video Laryngoscope,Circulating Charging Surgical Video Laryngoscope,Surgical Video Laryngoscopy |
||

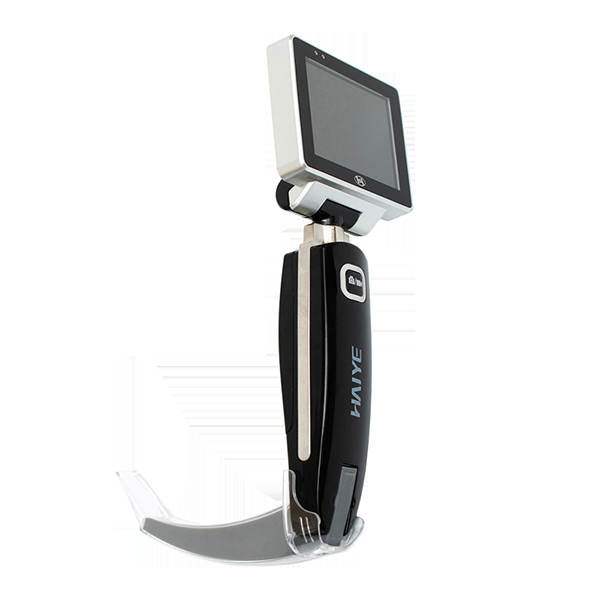

Video Laryngoscope Circulating Charging Anti Fog Ultra Clear Digital Camera System Disposable Blade
Characteristics of Video Laryngoscope
HYHJ-1320 medical A video laryngoscope is a kind of medical equipment for the throat and vocal cords.
It consists of a camera attached to a long thin pipe and a light source.
IA video laryngoscope can often be inserted into the patient's airway through the mouth or nostril, allowing physicians to better visualize the larynx and vocal cords.
Camera can send images to a display real-time, let the doctor can clearly see the throat and vocal cord.
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| Blades | 3 disposable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Product Features:
Reduce the risk of complications: Use of visual laryngoscopes can reduce the risk of complications during intubation and other airway procedures, such as bleeding, trauma, and vocal cord damage.
Provide a clear view: A video laryngoscope can provide a clear and detailed view of the larynx and vocal cords, allowing the doctor to better observe and diagnose.
It has the functions of taking pictures, video recording, freeze frame and so on, and can be stored and exported;
The camera sends images in real time to a monitor, allowing the doctor to have a clear view of the larynx and vocal cords.

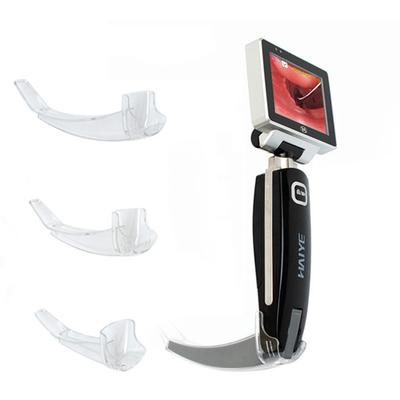

It is standard equipped with three cameras of different models, suitable for three different laryngoscopes, suitable for different people.
Improved efficiency: Video laryngoscopes allow rapid and accurate intubation, thus improving the efficiency of medical institutions.
We are a manufacturer of video laryngoscope in china more than 6 years, with our own R&D center and outstanding management, production and inspection process and professional pre-sales consulting and after sales service team.we always pursuity high quality and offer best service for our customer, our video laryngoscope export d to Middle East, Australia, Korea, Russia,Pakistan and other countries and regions
Welcome to inquiry if you have any interests!
OEM order is acceptable.
