Product Details:
|
Certificate: | CE ISO 13485 FDA | Type: | Professional Anesthesia Video Laryngoscope |
---|---|---|---|
Instrument Classification: | Class II | Warranty: | 1 Year |
Function: | Intubation,Take Pictures And Videos | Product Name: | Video Laryngoscope |
Pixel: | 2 Million | Material: | Stainless Steel |
High Light: | Anesthesiology Surgery Video Laryngoscope,32GB Card Surgical Laryngoscope,Stainless Steel Electronic Endoscope |
Video Laryngoscope Anesthesiology Surgery USB 32GB Stainless Steel TF High Speed Card

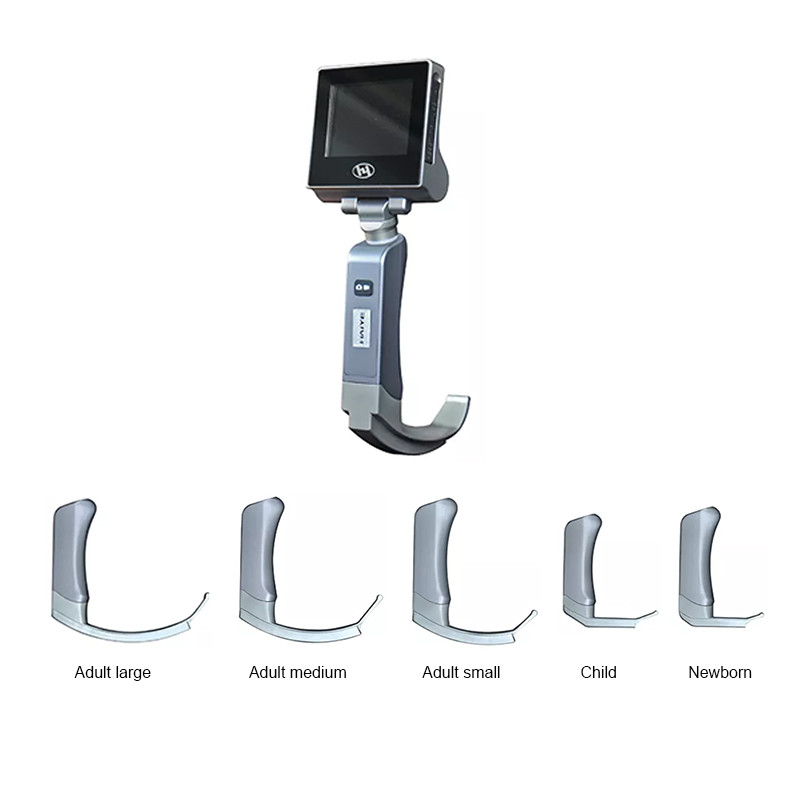

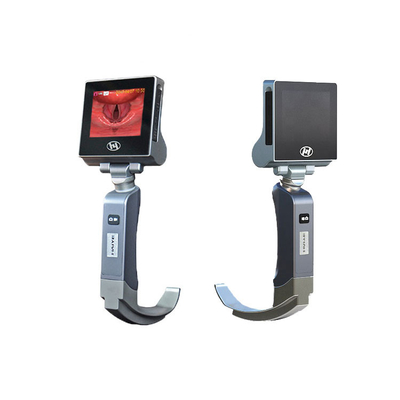

Haiye Video laryngoscope with reusable blades
A Video laryngoscope is a modern laryngoscope that uses optical lenses and a high-definition camera to transmit images of the inside of the larynx to a display screen, allowing doctors to have a clearer view of the patient's larynx.
The advantages of a video laryngoscope over a traditional laryngoscope are:
Shows clear: visual laryngoscope throat images can be transmitted to the screen, make the doctor can more clearly observe the patient's throat.
Simple operation: The traditional laryngoscope needs to be held by the doctor, which is relatively difficult to operate, while the visual laryngoscope can be operated through the bracket fixed on the patient's head, which makes the doctor more convenient.
To preserve: visual laryngoscope images can be stored in computers, allows doctors to observe and compare follow-up, to develop a more detailed treatment plan.
Advantages of Haiye Video laryngoscope
1.For patients with difficult airways: For those with difficult airways, such as obesity, sleep apnea, or abnormal anatomy, a video laryngoscope can be more easily intubated, increasing the success rate of intubation.
2.Reduce the risk of complications: Using a video laryngoscope reduces the risk of complications during intubation and other airway procedures, such as bleeding, trauma, and vocal cord injury.
3.Efficiency: visual laryngoscope intubation can quickly and accurately, so as to improve the efficiency of the medical institution.
4.For emergency situations: A video laryngoscope can be used in emergency situations, such as cardiac arrest, to quickly and accurately ensure airway patency.
Video laryngoscope Specification;
Components | Parameter | Technical index |
Screen | Size | 3.0" LCD screen |
Resolution | 960*480 | |
backlight | LED | |
From front to rear the rotation angle | 0-150° | |
From left to right the rotation angle | 0-270° | |
Data output | Easy to create and save the file | |
Video Output | External monitor, facilitate teaching and demonstration. | |
Laryngoscope blades | Resolution | 2,000,000 |
Power | ≤12V | |

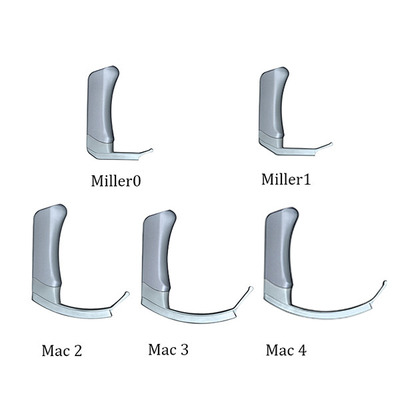

laryngoscope blade | Reusable blades(4 model) | |
FOV | 70±2° | |
Illumination | ≥3000LUX | |
Battery | Type | Lithium-ion rechargeable battery |
Voltage | 3.7V | |
Capacity | 3000mAh | |
Charging times | >800 times | |
Charging time | <4 hours |
