Product Details:
|
DISPLAY: | 3 INCH LCD SCREEN | Certificate: | CE ISO 13485 FDA |
---|---|---|---|
Pixel: | 2 Million | Type: | Professional Anesthesia Video Laryngoscope |
Instrument Classification: | Class II | Warranty: | 1 Year |
Function: | Intubation,Take Pictures And Videos | ||
High Light: | 5 Sizes Reusable Blades Video Laryngoscope,Video Assisted Endoscopic Surgical Instruments,3.7V Video Laryngoscope |
Video Laryngoscope 5 Sizes Of Reusable Blades For Endoscopic Surgical Instruments

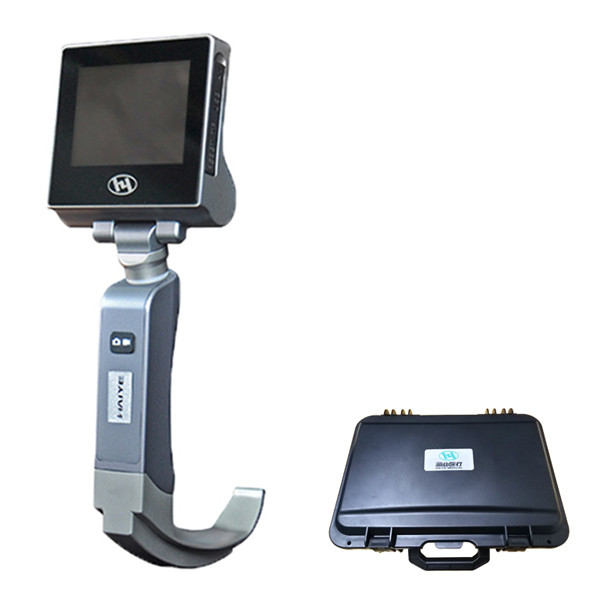

Haiye Video laryngoscope with reusable blades
Video Laryngoscope is a kind of modern laryngoscope, it through the optical lens and high definition camera to transmit laryngeal internal image to screen, make the doctor can more clearly observe the patient's throat.
Clear display: The video laryngoscope can transmit the throat image to the display screen, so that the doctor can more clearly observe the patient's throat condition.
Simple operation: The traditional laryngoscope needs to be held by the doctor, which is relatively difficult to operate, while the visual laryngoscope can be operated through the bracket fixed on the patient's head, which makes the doctor more convenient.
To preserve: visual laryngoscope images can be stored in computers, allows doctors to observe and compare follow-up, to develop a more detailed treatment plan.
Advantages of Haiye Video laryngoscope
1.Provide clear vision: visual laryngoscope can provide clear and detailed throat and vocal cord vision, let the doctor can better observation and diagnosis.
2.Reduce the risk of complications: use the visual laryngoscope can reduce the risk of complications, and other airway intubation program in such as bleeding, wounds, and vocal cord damage.
3.Video laryngoscope can be used in difficult airway situations, where traditional intubation methods may not work.
4.Camera can send images to a display real-time, let the doctor can clearly see the throat and vocal cord.
Video laryngoscope Specification;
Components | Parameter | Technical index |
Screen | Size | 3.0" LCD screen |
Resolution | 960*480 | |
backlight | LED | |
From front to rear the rotation angle | 0-150° | |
From left to right the rotation angle | 0-270° | |
Data output | Easy to create and save the file | |
Video Output | External monitor, facilitate teaching and demonstration. | |
Laryngoscope blades | Resolution | 2,000,000 |
Power | ≤12V | |
laryngoscope blade | Reusable blades(4 model) | |
FOV | 70±2° | |
Illumination | ≥3000LUX | |
Battery | Type | Lithium-ion rechargeable battery |
Voltage | 3.7V | |
Capacity | 3000mAh | |
Charging times | >800 times | |
Charging time | <4 hours |
