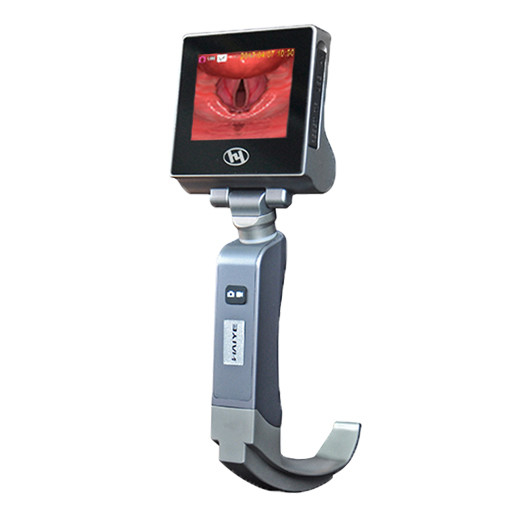

Digital Camera System Video Laryngoscope 3.0 Inch Touch Screen Anti Fog

Digital Camera System Video Laryngoscope 3.0 Inch Touch Screen Anti Fog
Digital Camera System Video Laryngoscope 3.0 Inch Touch Screen Anti Fog
Digital Camera System Video Laryngoscope 3.0 Inch Touch Screen Anti Fog Digital Camera System Video Laryngoscope 3.0 Inch Touch Screen Anti Fog Digital Camera System Video Laryngoscope 3.0 Inch Touch Screen Anti Fog

Large Image :  Digital Camera System Video Laryngoscope 3.0 Inch Touch Screen Anti Fog

Product Details:
Place of Origin: CHINA
Brand Name: HAIYE
Certification: CE ISO 13485 FDA
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 1000-1500 USD
Packaging Details: CARTON PACKAGE
Delivery Time: 5-8 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 1000 UNITS PER WEEK

Digital Camera System Video Laryngoscope 3.0 Inch Touch Screen Anti Fog

Description
Certificate: CE ISO 13485 FDA Type: Professional Anesthesia Video Laryngoscope
Instrument Classification: Class II Warranty: 1 Year
Function: Intubation,Take Pictures And Videos Product Name: Video Laryngoscope
Pixel: 2 Million Material: Stainless Steel
High Light:

Digital Camera System Video Laryngoscope

,

Anti Fog Video Assisted Laryngoscope

,

Touch Screen Video Laryngoscopy

Video Laryngoscope 3.0 Inch Touch Screen Anti Fog Digital Camera System



Haiye Video laryngoscope with reusable blades



Video laryngoscope provide clear and detailed vision of the larynx and vocal cords, allowing the doctor to better observe and diagnose.

Compared with traditional laryngoscope, visual laryngoscope has the following advantages:

Shows clear: visual laryngoscope throat images can be transmitted to the screen, make the doctor can more clearly observe the patient's throat.

Reduce the risk of complications: Use of visual laryngoscopes can reduce the risk of complications during intubation and other airway procedures, such as bleeding, trauma, and vocal cord damage.

usually inserted into the patient's airway through the mouth or nostrils, giving doctors a better view of the larynx and vocal cords.





Advantages of Haiye Video laryngoscope

1.Increased efficiency: Video laryngoscopes allow rapid and accurate intubation, thus increasing the efficiency of medical facilities.

2.Reduce the risk of complications: Using a video laryngoscope reduces the risk of complications during intubation and other airway procedures, such as bleeding, trauma, and vocal cord injury.

3.Shows clear: visual laryngoscope throat images can be transmitted to the screen, make the doctor can more clearly observe the patient's throat.

4.Reduce the risk of complications: use the visual laryngoscope can reduce the risk of complications, and other airway intubation program in such as bleeding, wounds, and vocal cord damage.



Video laryngoscope Specification;

Components Parameter Technical index
Screen Size 3.0" LCD screen
Resolution 960*480
backlight LED
From front to rear the rotation angle 0-150°
From left to right the rotation angle 0-270°
Data output Easy to create and save the file
Video Output External monitor, facilitate teaching and demonstration.
Laryngoscope blades Resolution 2,000,000
Power ≤12V
laryngoscope blade Reusable blades(4 model)
FOV 70±2°
Illumination ≥3000LUX
Battery Type Lithium-ion rechargeable battery
Voltage 3.7V
Capacity 3000mAh
Charging times >800 times
Charging time <4 hours
