Product Details:
|
| Model Number: | HYHJ-1320 | Dispaly: | 3'' TFT Color Dispaly Screen |
|---|---|---|---|
| Warranty: | 1 Year | Resolution: | 960*480 |
| Battery Life: | ≥6hs | Type: | Anesthesia Equipments & Accesso |
| OEM Service: | Available | Packing: | Protective Box & Carton |
| Function: | Intubation,Endoscope For Diagnostic Equipments,Take Pictures And Videos | ||
| High Light: | High Definition Screen Video Laryngoscope,2 Megapixel Video Laryngoscope,3 Inch Video Assisted Laryngoscope |
||

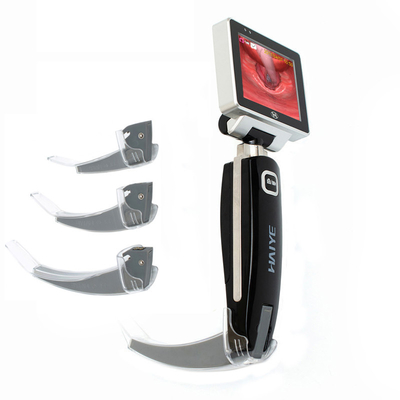

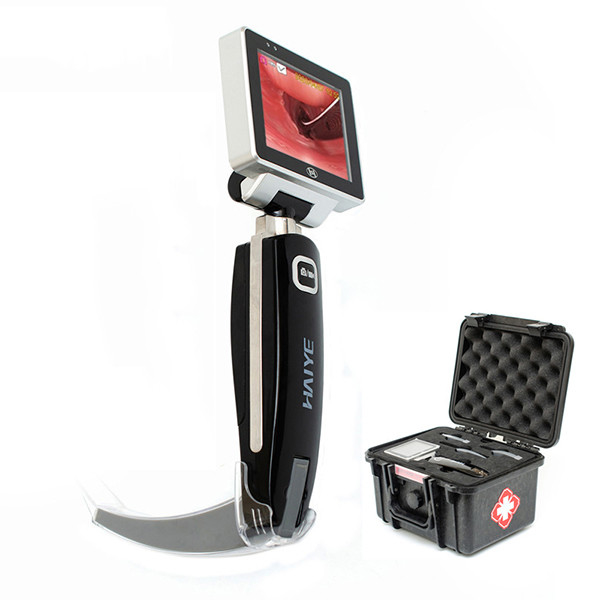

Video Laryngoscope 3-Inch 2 Megapixel High-Definition Screen Disposable Blade
Characteristics of Video Laryngoscope
Video Laryngoscope is a device that allows doctors to view the larynx and vocal cords during intubation.
Camera can send images to a display real-time, let the doctor can clearly see the throat and vocal cord.
HYHJ-1320 medical A video laryngoscope is a medical device used to visualize the larynx and vocal cords.
It consists of a camera and a light source, the camera is connected in a long, thin line.
The camera sends images in real time to a monitor, allowing the doctor to have a clear view of the larynx and vocal cords.
Clear display: The video laryngoscope can transmit the throat image to the display screen, so that the doctor can observe the patient's throat more clearly.
It can be used in difficult airway situations, where traditional intubation methods may not work.
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| Blades | 3 disposable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Product Features:
Suitable for patients with difficult airways: For those with difficult airways, such as those with obesity, sleep apnea, or abnormal anatomy, a video laryngoscope can be more easily intubated and increase the success rate of intubation.
Provide clear vision: visual laryngoscope can provide clear and detailed throat and vocal cord vision, let the doctor can better observation and diagnosis.
Reduce the risk of complications: use the visual laryngoscope can reduce the risk of complications, and other airway intubation program in such as bleeding, wounds, and vocal cord damage.
It has the functions of taking pictures, video recording, freeze frame and so on, and can be stored and exported;
A video laryngoscope is usually inserted into the patient's airway through the mouth or nostrils, giving doctors a better view of the larynx and vocal cords.
It is standard equipped with three cameras of different models, suitable for three different laryngoscopes, suitable for different people.
For patients with difficult airways: For those with difficult airways, such as obesity, sleep apnea, or abnormal anatomy, a video laryngoscope can be more easily intubated, increasing the success rate of intubation.
We are a manufacturer of video laryngoscope in china more than 6 years, with our own R&D center and outstanding management, production and inspection process and professional pre-sales consulting and after sales service team.we always pursuity high quality and offer best service for our customer, our video laryngoscope export d to Middle East, Australia, Korea, Russia,Pakistan and other countries and regions
Welcome to inquiry if you have any interests!
OEM order is acceptable.
