Product Details:
|
| Model Number: | HYHJ-1320 | Dispaly: | 3'' TFT Color Dispaly Screen |
|---|---|---|---|
| Warranty: | 1 Year | Resolution: | 960*480 |
| Battery Life: | ≥6hs | Type: | Anesthesia Equipments & Accesso |

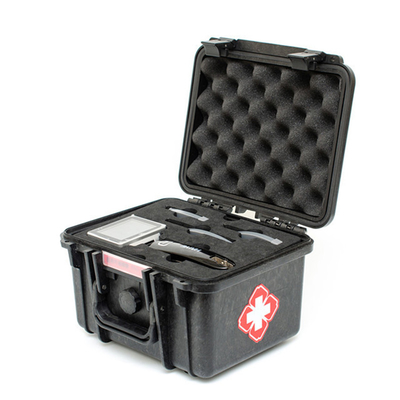

| OEM Service: | Available | Packing: | Protective Box & Carton |
| Function: | Intubation,Endoscope For Diagnostic Equipments,Take Pictures And Videos | ||
| High Light: | HD Digital Camera Video Laryngoscope,Video Laryngoscope Surgical Instrument,Anti Fog Surgical Video Assisted Laryngoscope |
||

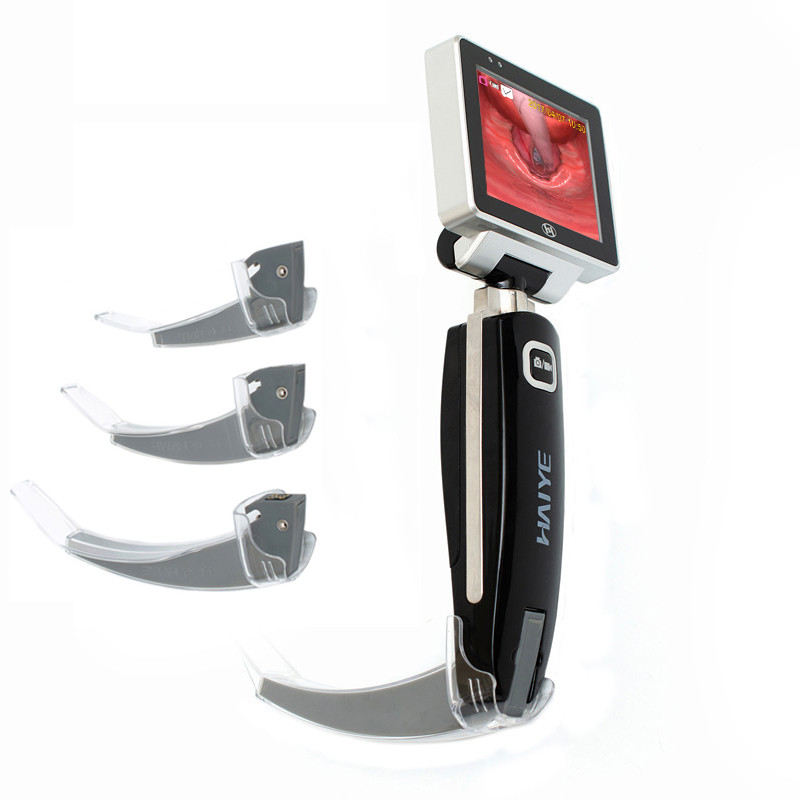

Video Laryngoscope Surgical Instrument Anti Fog HD Digital Camera System
Characteristics of Video Laryngoscope
Video laryngoscope is a modern laryngoscope, which transmits the image of the throat to the display screen through the optical lens and high definition camera, so that the doctor can observe the patient's throat more clearly.
HYHJ-1320 medical A video laryngoscope is a medical device used to visualize the larynx and vocal cords.
It consists of a camera and a light source, the camera is connected in a long, thin line.
The camera sends images in real time to a monitor, allowing the doctor to have a clear view of the larynx and vocal cords.
Clear display: The video laryngoscope can transmit the throat image to the display screen, so that the doctor can observe the patient's throat more clearly.
It can be a flexible or rigid, in order to adapt to different situations and needs.
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |

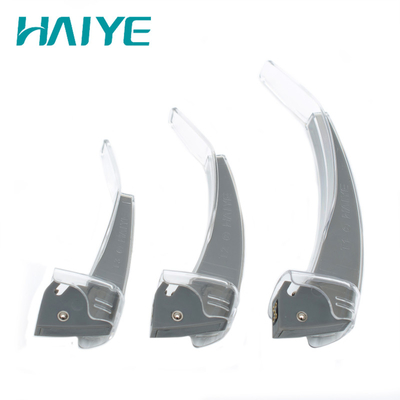

| Blades | 3 disposable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Product Features:
Suitable for patients with difficult airways: For those with difficult airways, such as those with obesity, sleep apnea, or abnormal anatomy, a video laryngoscope can be more easily intubated and increase the success rate of intubation.
A video laryngoscope is a medical device used to visualize the larynx and vocal cords.
Provide a clear view: A video laryngoscope can provide a clear and detailed view of the larynx and vocal cords, allowing the doctor to better observe and diagnose.
It has the functions of taking pictures, video recording, freeze frame and so on, and can be stored and exported;
Video laryngoscopes are often available in different sizes and shapes to accommodate patients of different ages and body sizes.
It is standard equipped with three cameras of different models, suitable for three different laryngoscopes, suitable for different people.
For emergency situations: A video laryngoscope can be used in emergency situations, such as cardiac arrest, to quickly and accurately ensure airway patency.
We are a manufacturer of video laryngoscope in china more than 6 years, with our own R&D center and outstanding management, production and inspection process and professional pre-sales consulting and after sales service team.we always pursuity high quality and offer best service for our customer, our video laryngoscope export d to Middle East, Australia, Korea, Russia,Pakistan and other countries and regions
Welcome to inquiry if you have any interests!
OEM order is acceptable.
