Product Details:
|
| Model Number: | HYHJ-1320 | Dispaly: | 3'' TFT Color Dispaly Screen |
|---|---|---|---|
| Warranty: | 1 Year | Resolution: | 960*480 |
| Battery Life: | ≥6hs | Type: | Anesthesia Equipments & Accesso |
| OEM Service: | Available | Packing: | Protective Box & Carton |
| Function: | Intubation,Endoscope For Diagnostic Equipments,Take Pictures And Videos | ||
| High Light: | Anesthesia Electronic Endoscope,Disposable Blades Electronic Endoscope,Handheld Electronic Video Laryngoscope |
||

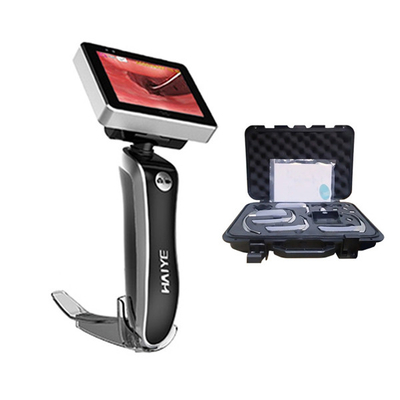

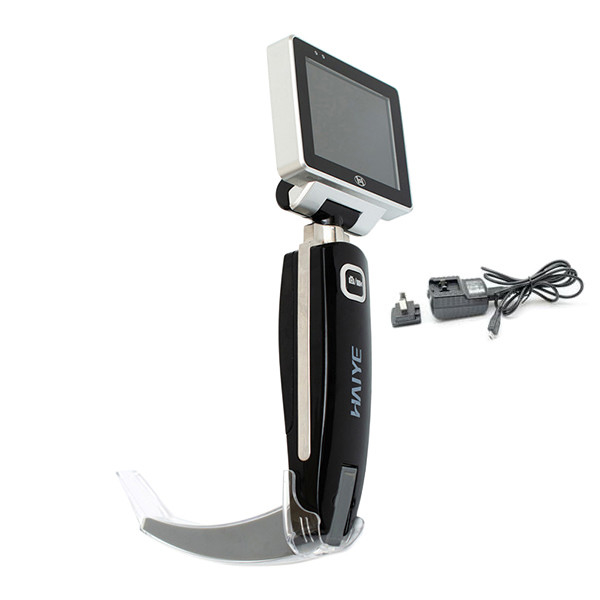

Video Laryngoscope Portable Handheld Medical Instruments Anesthesia Electronic Endoscope Disposable Blades
Characteristics of Video Laryngoscope
HYHJ-1320 medical Video Laryngoscope It consists of a camera and a light source that are attached to a long, thin, flexible or rigid tube.
The camera sends real-time images to a monitor, allowing the doctor to see the larynx and vocal cords.
A Video Laryngoscope is a device that allows doctors to view the larynx and vocal cords during intubation.
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| Blades | 3 disposable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Product Features:
Intubation with high precision full mold manufacturing process, stainless steel reinforcement, not easy to damage, long service life;
The machine adopts imported large capacity lithium battery, which can be used for more than 300 minutes.
It has the functions of taking pictures, video recording, freeze frame and so on, and can be stored and exported;
Unique dual anti-fog function, ready to use, no preheating, intubation without blind area;
It is standard equipped with three cameras of different models, suitable for three different laryngoscopes, suitable for different people.
Disposable laryngoscope tablets are packaged and sterilized to prevent cross infection. Mature and reliable fully functional electronic scheme and HD digital camera system, with 3 "TFT color display screen, good effect of restoration.
We are a manufacturer of video laryngoscope in china more than 6 years, with our own R&D center and outstanding management, production and inspection process and professional pre-sales consulting and after sales service team.we always pursuity high quality and offer best service for our customer, our video laryngoscope export d to Middle East, Australia, Korea, Russia,Pakistan and other countries and regions
Welcome to inquiry if you have any interests!
OEM order is acceptable.
