Product Details:
|
Certificate: | CE ISO 13485 FDA | Type: | Professional Anesthesia Video Laryngoscope |
---|---|---|---|
Instrument Classification: | Class II | Warranty: | 1 Year |
Function: | Intubation,Take Pictures And Videos | Product Name: | Video Laryngoscope |
Pixel: | 2 Million | Material: | Stainless Steel |
High Light: | Touch Screen Video Laryngoscope,3.0 Inch Video Laryngoscope,Video Endoscopic Surgical Instruments |

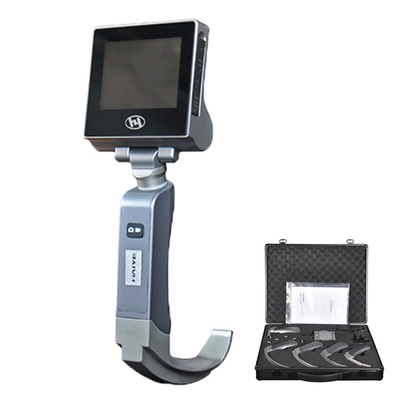

Video Laryngoscope Endoscopic Surgical Instruments 3.0 Inch Touch Screen

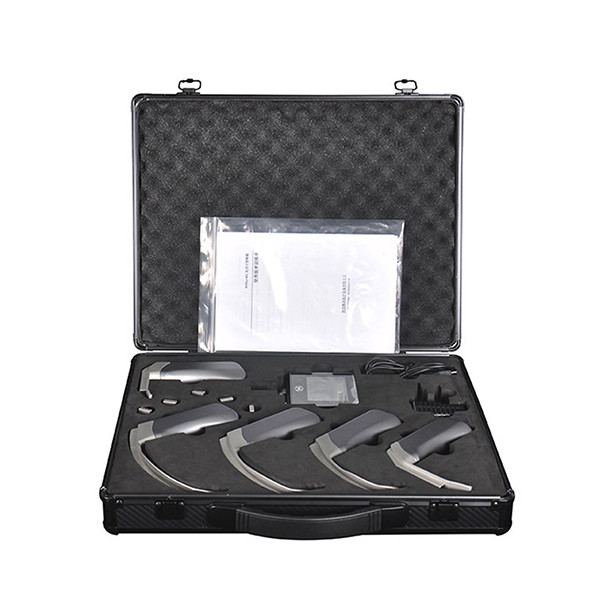

Haiye Video laryngoscope with reusable blades
Video laryngoscope is a kind of modern laryngoscope, it through the optical lens and high definition camera to transmit laryngeal internal image to screen, make the doctor can more clearly observe the patient's throat.
Compared with the traditional laryngoscope, the visual laryngoscope advantage:
Simple operation: The traditional laryngoscope needs to be held by the doctor, which is relatively difficult to operate, while the visual laryngoscope can be operated through the bracket fixed on the patient's head, which makes the doctor more convenient.
To preserve: visual laryngoscope images can be stored in computers, allows doctors to observe and compare follow-up, to develop a more detailed treatment plan.
Advantages of Haiye Video laryngoscope
1.Provide clear vision: visual laryngoscope can provide clear and detailed throat and vocal cord vision, let the doctor can better observation and diagnosis.
2.Reduce the risk of complications: Using a video laryngoscope reduces the risk of complications during intubation and other airway procedures, such as bleeding, trauma, and vocal cord injury.
3.For emergency situations: A video laryngoscope can be used in emergency situations, such as cardiac arrest, to quickly and accurately ensure airway patency.
4.Provide a better surgical field of view: For patients who need surgery, a video laryngoscope can provide a better surgical field of view, thus increasing the success rate of surgery.
Video laryngoscope Specification;
Components | Parameter | Technical index |
Screen | Size | 3.0" LCD screen |
Resolution | 960*480 | |
backlight | LED | |
From front to rear the rotation angle | 0-150° | |
From left to right the rotation angle | 0-270° | |
Data output | Easy to create and save the file | |
Video Output | External monitor, facilitate teaching and demonstration. | |
Laryngoscope blades | Resolution | 2,000,000 |
Power | ≤12V | |

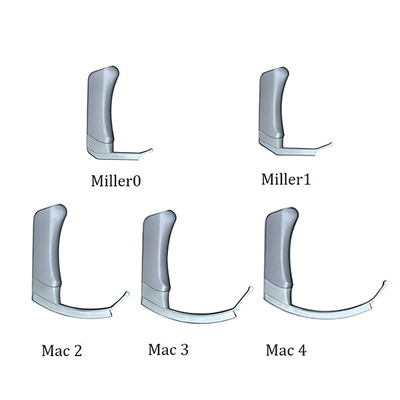

laryngoscope blade | Reusable blades(4 model) | |
FOV | 70±2° | |
Illumination | ≥3000LUX | |
Battery | Type | Lithium-ion rechargeable battery |
Voltage | 3.7V | |
Capacity | 3000mAh | |
Charging times | >800 times | |
Charging time | <4 hours |
