Product Details:
|
Certificate: | CE ISO 13485 FDA | Type: | Professional Anesthesia Video Laryngoscope |
---|---|---|---|
Instrument Classification: | Class II | Warranty: | 1 Year |
Function: | Intubation,Take Pictures And Videos | Product Name: | Video Laryngoscope |
Pixel: | 2 Million | Material: | Stainless Steel |
High Light: | Hospital Reusable Blade Video Endoscope,HD Camera System Video Endoscope,Electronic Surgical Endoscope |

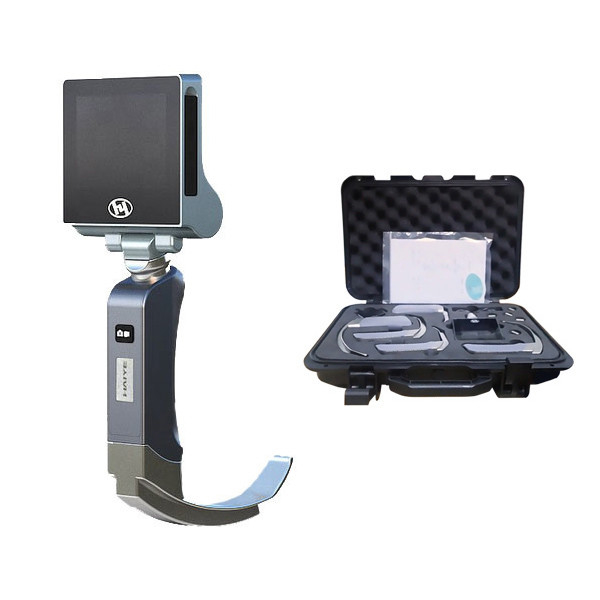

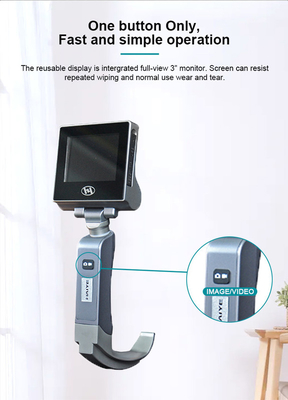

Video Laryngoscope HD Camera System Endoscope Reusable Blade Hospital Surgical Instruments
Haiye Video laryngoscope with reusable blades
Video laryngoscope is a modern laryngoscope, which transmits the image of the throat to the display screen through the optical lens and high definition camera, so that the doctor can observe the patient's throat more clearly.Compared with the traditional laryngoscope, the advantages of the visual laryngoscope are:
Clear display: The video laryngoscope can transmit the throat image to the display screen, so that the doctor can more clearly observe the patient's throat condition.
Simple operation: The traditional laryngoscope needs to be held by the doctor, which is relatively difficult to operate, while the visual laryngoscope can be operated through the bracket fixed on the patient's head, which makes the doctor more convenient.
Easy to save: the video laryngoscope can save the image in the computer, which is convenient for the doctor to observe and compare, so as to formulate a more detailed treatment plan.
Advantages of Haiye Video laryngoscope
1.Provide a clear view: A video laryngoscope can provide a clear and detailed view of the larynx and vocal cords, allowing the doctor to better observe and diagnose.
2.Reduce the risk of complications: Use of visual laryngoscopes can reduce the risk of complications during intubation and other airway procedures, such as bleeding, trauma, and vocal cord damage.
3.Increased efficiency: Visual laryngoscopes allow rapid and accurate intubation, thus improving the efficiency of healthcare facilities.
4.Used for emergency: visual laryngoscope can be used in an emergency, such as cardiac arrest, in order to quickly and accurately to ensure that the airway patency.
Video laryngoscope Specification;
Components | Parameter | Technical index |
Screen | Size | 3.0" LCD screen |
Resolution | 960*480 | |
backlight | LED | |
From front to rear the rotation angle | 0-150° | |
From left to right the rotation angle | 0-270° | |
Data output | Easy to create and save the file | |
Video Output | External monitor, facilitate teaching and demonstration. | |
Laryngoscope blades | Resolution | 2,000,000 |
Power | ≤12V | |
laryngoscope blade | Reusable blades(4 model) | |
FOV | 70±2° | |
Illumination | ≥3000LUX | |
Battery | Type | Lithium-ion rechargeable battery |
Voltage | 3.7V | |
Capacity | 3000mAh | |
Charging times | >800 times | |
Charging time | <4 hours |
