Product Details:
|
| Certificate: | CE ISO 13485 FDA | Type: | Professional Anesthesia Video Laryngoscope |
|---|---|---|---|
| Instrument Classification: | Class II | Warranty: | 1 Year |
| Function: | Intubation,Take Pictures And Videos | Product Name: | Video Laryngoscope |
| High Light: | 2 Megapixel Video Laryngoscopy,High Definition Screen Surgical Endoscope,Hospital Surgical Video Assisted Laryngoscope |
||

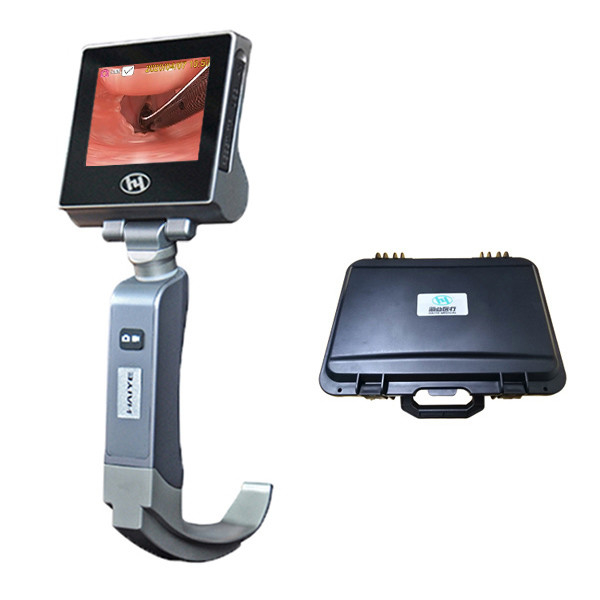

Video Laryngoscope 2 Megapixel High-Definition Screen For Hospital Surgical Instruments
Haiye Video laryngoscope with reusable blades
A Video laryngoscope is a modern laryngoscope that uses optical lenses and a high-definition camera to transmit images of the inside of the larynx to a display screen, allowing doctors to have a clearer view of the patient's larynx.Compared with the traditional laryngoscope, the advantages of the visual laryngoscope are:
Clear display: Visual laryngoscope can transmit laryngeal image to the display screen, so that doctors can more clearly observe the patient's laryngeal condition.
Simple operation: The traditional laryngoscope needs to be held by the doctor, which is relatively difficult to operate, while the visual laryngoscope can be operated through the bracket fixed on the patient's head, which makes the doctor more convenient.
To preserve: visual laryngoscope images can be stored in computers, allows doctors to observe and compare follow-up, to develop a more detailed treatment plan.
Advantages of Haiye Video laryngoscope
1.Provide a clear view: A video laryngoscope can provide a clear and detailed view of the larynx and vocal cords, allowing the doctor to better observe and diagnose.
2.Reducing the risk of complications: Using a video laryngoscope can reduce the risk of complications during intubation and other airway procedures, such as bleeding, trauma and vocal cord injury.
3.Provide a better surgical field of view: For patients requiring surgery, visual laryngoscopes can provide a better surgical field of view, thus increasing the success rate of surgery.
4.Efficiency: visual laryngoscope intubation can quickly and accurately, so as to improve the efficiency of the medical institution.
Video laryngoscope Specification;
| Components | Parameter | Technical index |
| Screen | Size | 3.0" LCD screen |
| Resolution | 960*480 | |
| backlight | LED | |
| From front to rear the rotation angle | 0-150° | |
| From left to right the rotation angle | 0-270° | |
| Data output | Easy to create and save the file | |
| Video Output | External monitor, facilitate teaching and demonstration. | |
| Laryngoscope blades | Resolution | 2,000,000 |
| Power | ≤12V | |
| laryngoscope blade | Reusable blades(4 model) | |
| FOV | 70±2° | |
| Illumination | ≥3000LUX | |
| Battery | Type | Lithium-ion rechargeable battery |
| Voltage | 3.7V | |
| Capacity | 3000mAh | |
| Charging times | >800 times | |
| Charging time | <4 hours | |
