Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485

Certification
China Xian Haiye Medical Equipment Co.,Ltd certification
China Xian Haiye Medical Equipment Co.,Ltd certification
I'm Online Chat Now

Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485

Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485
Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485
Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485 Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485 Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485 Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485

Large Image :  Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485

Product Details:
Place of Origin: CHINA
Brand Name: HAIYE
Certification: CE ISO 13485 FDA
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 1000-1500 USD
Packaging Details: CARTON PACKAGE
Delivery Time: 5-8 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 1000 UNITS PER WEEK

Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485

Description
Certificate: CE ISO 13485 FDA Type: Professional Anesthesia Video Laryngoscope
Instrument Classification: Class II Warranty: 1 Year
Function: Intubation,Take Pictures And Videos Product Name: Video Laryngoscope
High Light:

2 Megapixel Anesthesia Video Laryngoscope

,

ISO 13485 Video Laryngoscope

,

LCD Screen Surgical Laryngoscope

Video Laryngoscope 2 Megapixel High-Definition Screen For Hospital Surgical Instruments

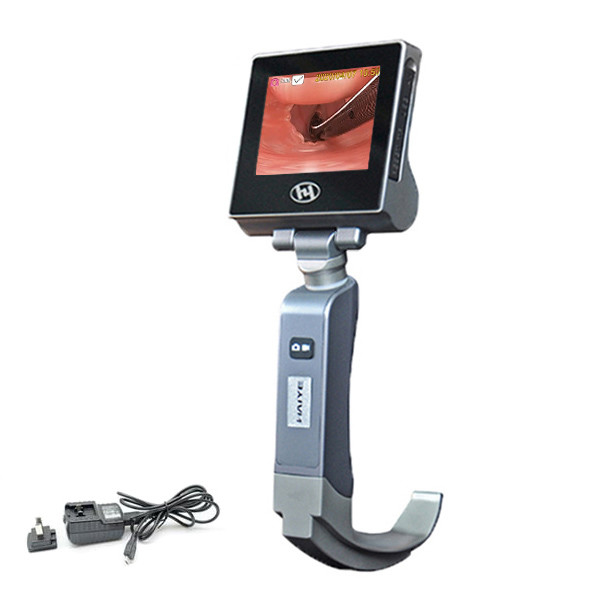

Haiye Video laryngoscope with reusable blades



Video laryngoscope is a modern laryngoscope, which transmits the image of the inside of the throat to the display screen through optical lenses and high definition cameras, so that the doctor can more clearly observe the condition of the patient's throat.

Shows clear: visual laryngoscope throat images can be transmitted to the screen, make the doctor can more clearly observe the patient's throat.

Simple operation: The traditional laryngoscope needs to be held by the doctor, which is relatively difficult to operate, while the visual laryngoscope can be operated through the bracket fixed on the patient's head, which makes the doctor more convenient.

To preserve: visual laryngoscope images can be stored in computers, allows doctors to observe and compare follow-up, to develop a more detailed treatment plan.



Advantages of Haiye Video laryngoscope

1.Provide a clear view: A video laryngoscope can provide a clear and detailed view of the larynx and vocal cords, allowing the doctor to better observe and diagnose.

2.Reducing the risk of complications: Using a video laryngoscope can reduce the risk of complications during intubation and other airway procedures, such as bleeding, trauma and vocal cord injury.

3.Provide a better surgical field of view: For patients requiring surgery, visual laryngoscopes can provide a better surgical field of view, thus increasing the success rate of surgery.

4.Efficiency: visual laryngoscope intubation can quickly and accurately, so as to improve the efficiency of the medical institution.



Video laryngoscope Specification;

Components Parameter Technical index
Screen Size 3.0" LCD screen
Resolution 960*480
backlight LED
From front to rear the rotation angle 0-150°
From left to right the rotation angle 0-270°
Data output Easy to create and save the file
Video Output External monitor, facilitate teaching and demonstration.
Laryngoscope blades Resolution 2,000,000
Power ≤12V

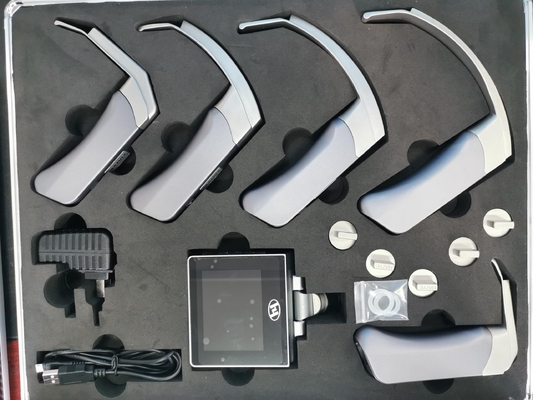

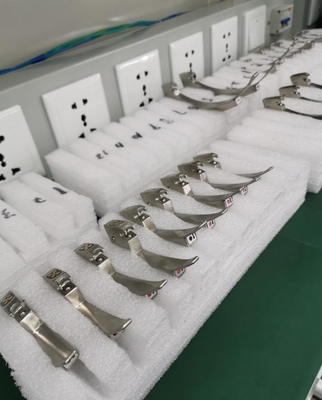

laryngoscope blade Reusable blades(4 model)
FOV 70±2°
Illumination ≥3000LUX
Battery Type Lithium-ion rechargeable battery
Voltage 3.7V
Capacity 3000mAh
Charging times >800 times
Charging time <4 hours

Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485 0

Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485 1Hospital Surgical Anesthesia Video Laryngoscope 3.0" LCD screen ISO 13485 2
