Product Details:
|
| Product Name: | Video Laryngoscope | Resolution: | 960 X 480 |
|---|---|---|---|
| Pixels: | 3 Million | Display: | 3.0 TFT Color Screen |
| Viewing Angle: | 70°± 9° | Depth Of Field: | 3~100mm |
| Power Input: | 100 - 240V50/60Hz,0.35A | Power Output: | 5V,2000mA, USB Output |
| Interface: | Type-C | OEM Service: | Yes |
| High Light: | Type C Interface Pediatric Laryngoscope,3 Million Pixels Pediatric Laryngoscope,HD Display Video Laryngoscope |
||

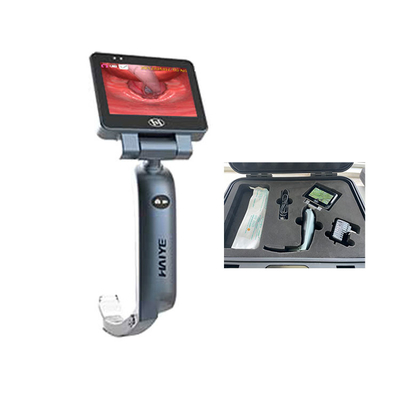

Type-C Interface Pediatric Laryngoscope 3 million Pixels HD Display Video Laryngoscope
HYHJ-KM video laryngoscope key parameter
Configuration & Function of video laryngoscpes
Standard equipped 16G memory card,maximum 64G,for photo and video store;
photo, video and freeze frame, and can be stored and exported
Hd output function, can synchronizable display with the external display.

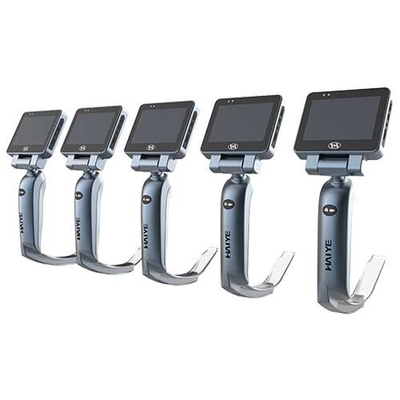

Two hosts can respectively carry 5+3 kinds of disposable laryngoscopes respectively
Interfacing connection Type-C,Charge and export data lithium battery:3400mAh
Work Environment:-10～50℃,relative humidity:≤93%
Storage condition:-40～70℃,relative humidity:≤93%
KM’s advantages towards the previous video laryngoscope:
Higher Carema Pixels;
Higher Carema Resolution;
Larger rotation angle;
Can match all sizes of disposable blades;
Type-C interface,faster charging and transfer;
Better adaptability to working environment and storage environment
Technical Data of video laryngoscope
| Name | Technical term | Technical Index |
|
Machine |
Resolution | 960 x 480 |
| Pixels | 3 million | |
| Display | 3.0 TFT color screen | |
| Viewing angle | 70°± 9° | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | Type-C | |
| laryngoscope | Suit for different oral structure,aseptic packaging for single use | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -10°~ 50°C |
| Relative humidity | ≤93% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 70°C |
| Relative humidity | ≤93% |
Haiye KM video laryngoscope is Anesthesia video laryngoscope with advanced digital technology, under the guidance of high-definition video image, make it easier to intubation, the whole operation process more accurate, intuitive. The product has the characteristics of compact, portable and easy to operate.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
