Product Details:
|
| Product Name: | Visual Laryngoscope Video Laryngoscope | Display: | 3.0 Inch LCD Color Screen |
|---|---|---|---|
| Display Resolution: | 960 X 480 | Pixels: | 2 Million |
| Camera Resolution: | 1600 X 1200 | Viewing Angle: | 70 ± 2 Degree |
| Depth Of Field: | 3~100mm | Rotate Angle: | Front To Back: 135 º, Left To Right: 275 º |
| Battery Working Time: | Continues Use ≥ 350 Mins | Warranty: | 1 Year |
| High Light: | Medical Surgical Visual Laryngoscope,2 Million Pixels Visual Laryngoscope,100mm Medical Surgical Endoscope |
||
Visual Laryngoscope conform to structural characteristics of human upper respiratory tract
Visual laryngoscope is a device used for taking photos and video disinfection of the larynx. It is suitable for clinical endotracheal intubation, simulation exercises, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU, pediatrics, ambulance and other medical departments at all levels.
Easy to operate, one-button operation, anesthesiologists and nurses with traditional laryngoscope operation experience, can quickly learn; 3.0-inch HD display, with 3-100mm depth of field, close-up intubation imaging clearer;

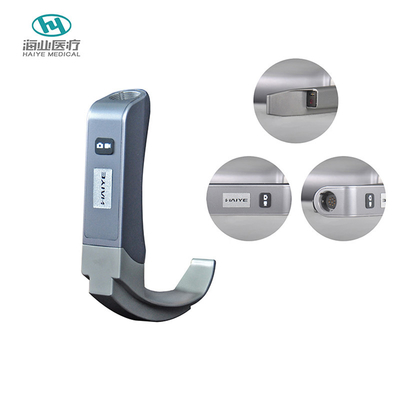

Medical grade metal texture, ergonomic design of the handle, comfortable grip
It is often used to provoke patients' epiglotitis to expose the glottis and allow users to perform endotracheal intubation visually. Further optimization and improvement of visual laryngoscope's appearance will make the visual laryngoscope more consistent with the structural characteristics of human upper respiratory tract (especially the difficult airway).
Technical feature of HYHJ-KC video laryngosccope
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |

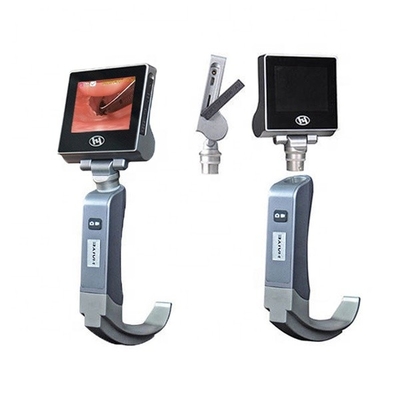

| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope blades | 5 resuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V, 2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continous use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |

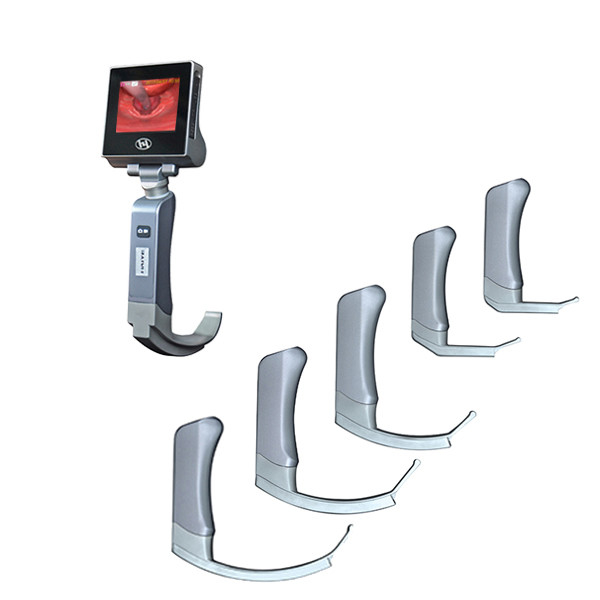

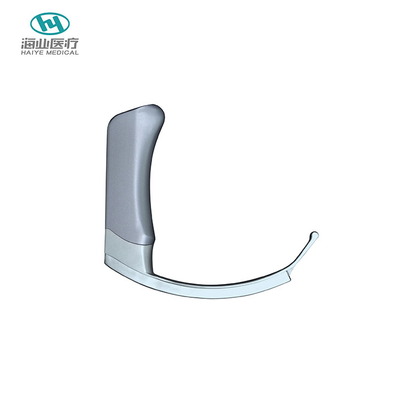

Specification & Dimension (5 KC Resuable Blades)
Tip Size(mm)
L, H, W, Max W, Min W
Mac4:Large Adult
153, 54.5, 29.23, 22.41, 14.37
Mac3:Medium Adult
140, 49, 29.23, 21.37, 14.46
Mac2:Small Adult & Large Child
122, 34, 29.23, 21.4, 13.56
Miller1:Medium Child
77.4, 22.74, 8.55, 14.5, 10.34
Miller0:Small Child & Infant
59.9, 17.46, 18.55, 14.7, 10.6
Welcome to inquiry if you have any interests!
OEM order is acceptable.
