Product Details:
|
| Product Name: | Video Laryngoscope | Screen Resolution: | 960*480 |
|---|---|---|---|
| Screen: | 3.0 Inch | Pixel: | 2 Million Pixel |
| Image /Video: | Yes | Depth Of Field: | 3-100mm |
| Field Angle: | 70+2 | Battery: | Rechargeable Lithium Battery |
| Camera Resolution: | 1200*1600 | Battery Capacity: | 3400mA |

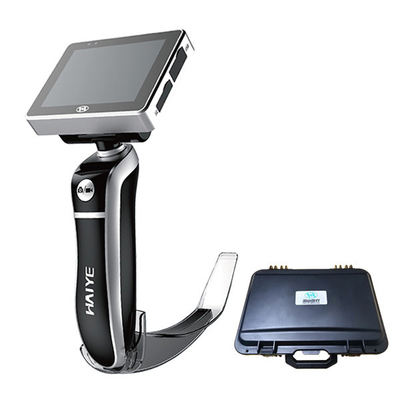

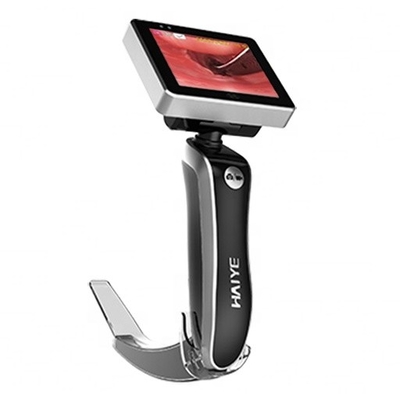

Portable Adult Disposable Blade Video Laryngoscope
Video Laryngoscope factory
Specifications for the Video Laryngoscope
|
PARTS
|
Description
|
Technical Index
|
|
Machine
|
Screen
|
3 inch LCD
|
|
Resolution
|
960*480 (RGB)
|
|
|
Viewing angle
|
≥70º
|
|
|
Power
|
<2W
|
|
|
Display front and back rotation Angle
|
0 º~175 º
|
|
|
Weight
|
225g
|
|
|
Camera
|
Illuminance
|
≥3000 LUX
|
|
Resolution
|
1200*1600 px
|
|
|
Image/Video function
|
Image/ Video function
|
Yes
|
|
Output
|
USB output, Easy to storage and establish image/video
|
|
|
Memory type
|
Micro SD card 32GB
|
|
|
Battery
|
Battery Type
|
Rechargable lithium battery
|
|
Capacity
|
3400mAh
|
|
|
Cycle life of battery
|
>600 times
|
|
|
Battery working time
|
>400min
|
|
|
Charging time
|
<2(hrs)
|
|
|
|
Charging Port
|
Micro USB
|
|
Power Adapter
|
Input
|
100-250V, 50 Hz.
|
|
Output
|
5V1A
|
|
|
Working
Condition |
Temperature
|
-5℃~+50℃
|
|
Humidity
|
10%~90%
|
|
|
Air Pressure
|
860~1060hpa
|
|
|
Transport / Storage
Condition |
Temperature
|
-10℃~50℃
|
|
Humidity
|
≤93%
|
|
|
Air Pressure
|
500~1060hpa
|
Applications
1. Clinical endotracheal intubation.
2. Simulation practice
3. Clinical teaching
4. Difficult airway intubation.
Main Features:
1. 3.0 inches colorful LCD screen.
2. Camera resolution: 2M pixel.
3. Disposable blade and reusable blade:Aseptic packaging,strength,comfortable and reliable.
4. Compatible with blade perfect.
5. Video synchronous transmit to big monitor by AV cable.
6. Easy to input the tracheal tube by good view of glottis.
7. More curved blade angle makes it can cope with most difficult airway management.
8. Anti-fog,no need to preheating.
Company Profile
Xi'an HAIYE Medical Equipment Co., Ltd. is a high-tech medical Equipment manufacturer. We integrate science and technology, research and development, design, manufacture and sales.
Own our R&D center and Technical personnel, sterile production workshop, advanced production and inspection equipment. strict production management and inspection process, We always put "the pursuit of quality" in the first place, striving to implement the quality core value of "Quality Comes From Research and Development", so accurate analysis and control are strictly taken in each link of the research and design. Meanwhile, we exactly conform to the management system during the process of production, and bring the quality awareness into each procedure of product manufacture. For each detail from raw material, production integration and packaging to delivery, we have built strict quality standards and implemented them in effect
We produce high quality video laryngoscope as a perfect solution for doctor in Anesthesia, ICU, Operation Room, and Emergency Rescue to handle all kinds of airway management problems.
Our company spares no effort in innovation, pursues our goal of "manufacture the product that can meet the demand of different customers", persists in the concept of "medical device internationalization", actively conforms to the modern enterprise management, enhances the management, pursues outstanding achievement, and elaborately creates the HAIYE brand. Our company attaches great importance to quality, insists on honesty, and tries our best to manufacture and design advanced and applicable medical products of excellent quality.
Certifications
The company has obtained CE, FDA, ISO 13485 and ISO 9001 Certification Certificates.
Packaging&Delivery
Packaging Details : Carton, Standard export packing for video laryngoscope

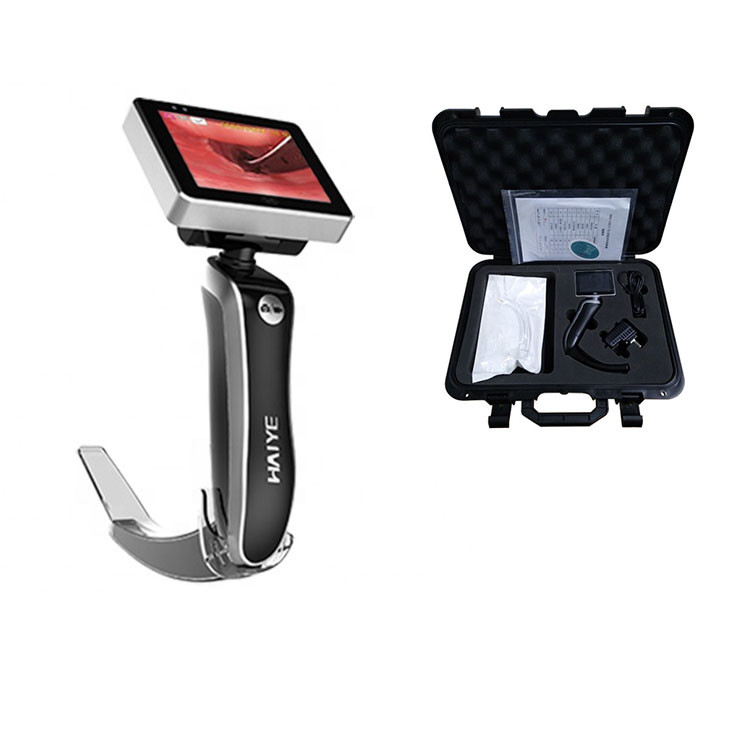

Standard equipment contain :
1x Main machine
3x Camera systems
3x Disposable laryngoscope blades
1x Charger
1x Suit case
1x Operation manual and warranty card
Delivery Time :Shipped in 5-7 days after payment
Shipping terms :by express /by air/by sea
