Product Details:
|
| Resolution: | 960*480 | Effective Pixels: | 2 Million |
|---|---|---|---|
| Display: | 3 "TFT Color Screen | Viewing Angle: | 70°± 2° |
| Depth Of Fields: | 3~100mm | Light Source: | High Waterproofing LED Light |
| Camera: | Double Anti Fog, On Blind Area For Intubation | Blade: | 5 Types Made By Medical-grade Metal |

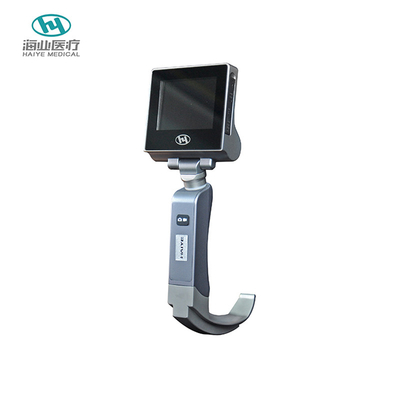

HYHJ-KC Medical-Grade Metal Material Digital Anti Fog Camera System Video Laryngoscope
XI'AN HAIYE has been devoted to the R&D and production of products in the visual medical field since its founding, and has developed successively many kinds and full series of products, such as anesthesia laryngoscopes, video laryngoscopes, video rigid endoscopes, video flexible endoscopes, disposable uroscopes, disposable hysteroscopes.
Why Choose Vedio Laryngoscope?
1. Anyone familar with tradional direct laryngoscope can successfully use the video laryngoscope;

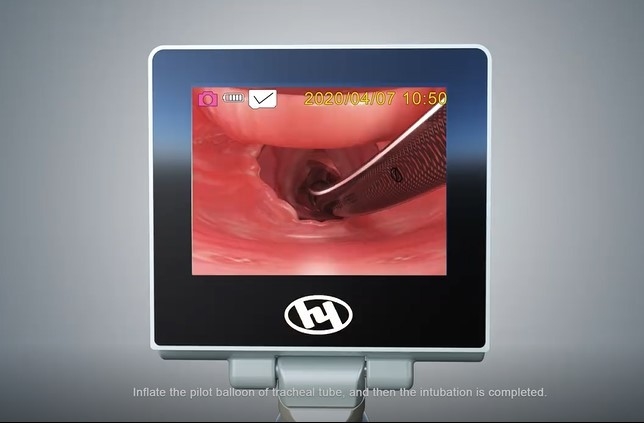

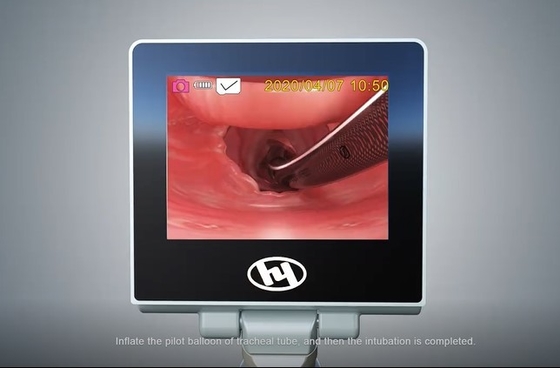

2. Video laryngoscope can very clearly show the oral structure and easily take photo, video;
3. Doctor can keep distance between patient by using video laryngoscope, the cross-infection possiblity greatly reduce;
4. Significantly improved glottic exposure grade, use video laryngoscope, about 99 percent patients can reach grade I-II , glottic exposure grade reduced by at least grade I ;
5. Video laryngoscope increase the success rate, and also lower the esophageal intubation rateShorter the endotracheal intubation time;
6. The range of neck and head operation is small towards video laryngoscope, fit for cervical spine injury;
7. Video laryngoscope can cause Lighter less inquiry, smoother hemodynamics and operating force.
HYHJ-KC Video Laryngoscope------- The most hot selling video laryngoscope in HAIYE
Choose HAIYE, Choose Professional!
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 5 resuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V, 2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Welcome to inquiry if you have any interests!
OEM order is acceptable.
