Product Details:
|
| Product Name: | Haiye Video Laryngoscope | Display: | 3″ 3.5'' HD LCD Screen |
|---|---|---|---|
| Display Pixel: | 3 Million | Viewing Angles: | 70±9º |
| Space Resolution: | ≥8lp/mm | DOF: | 3～100mm |
| Lux: | ≥ 2600 Lux | Rotation Angle: | Front&back155±10°, Left&right: 275±10° |
| Lithium Battery: | 3400mAh | Blades: | 5+3 Kinds Of Disposable Laryngoscopes |
| OEM Service: | Yes |

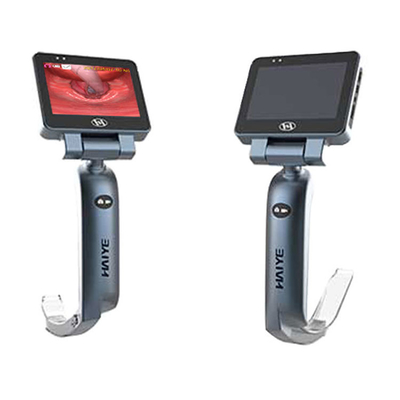

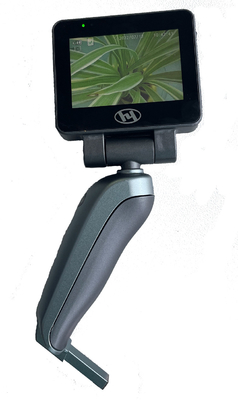

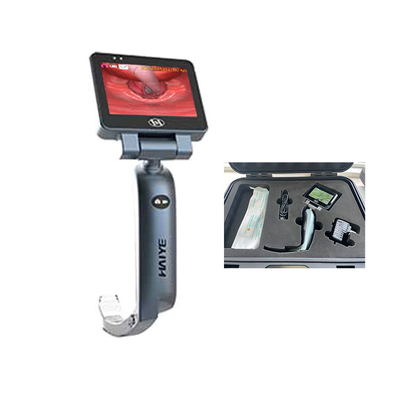

3400mAh Large Lithium Battery Type-C Interface Haiye Video Laryngoscope Factory Price
Configuration & Function
Higher image output, no intubation blind area
HYHJ-KM Video Laryngoscope Display:3″HD LCD screen
HYHJ-KM Video Laryngoscope Display pixel:300 million, Higher Carema Pixels
HYHJ-KM Video Laryngoscope Viewing angles:70º±9º
HYHJ-KM Video Laryngoscope Depth of Field/DOF:3～100mm
HYHJ-KM Video Laryngoscope Space Resolution:≥8lp/mm
HYHJ-KM Video Laryngoscope is More comfortable light for intubation :Lux ≥2600
HYHJ-KM Video Laryngoscope Work Environment:-10～50℃,relative humidity:≤93%
HYHJ-KM Video Laryngoscope Storage condition:-40～70℃,relative humidity:≤93%
HYHJ-KM Video Laryngoscope Larger rotation angle: front&back: 155°±10°, left&right: 275°±10°
HYHJ-KM Video Laryngoscope Faster charging and transfer: Interfacing connection Type-C
HYHJ-KM Video Laryngoscope Large working life: Charge and export data lithium battery: 3400mAh
HYHJ-KM Video Laryngoscope Better adaptability to working environment and storage environment
HYHJ-KM Video Laryngoscope Large storage space: Standard equipped 16G memory card,maximum 64G,for photo and video store
Blades: 5+3 disposable blades
respectively carry kinds of disposable laryngoscopes
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Resolution | 960 x 480 |
| Pixels | 300 million | |
| Display | 3.0 3.5 inch TFT color screen | |
| Viewing angle | 70°± 9° | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | Type-C | |
| laryngoscope blades | Suit for different oral structure, aseptic packaging for single use | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -10°~ 50°C |
| Relative humidity | ≤93% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 70°C |
| Relative humidity | ≤93% |
Welcome to inquiry if you have any interests!
OEM order is acceptable.
