No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant

Certification
China Xian Haiye Medical Equipment Co.,Ltd certification
China Xian Haiye Medical Equipment Co.,Ltd certification
I'm Online Chat Now

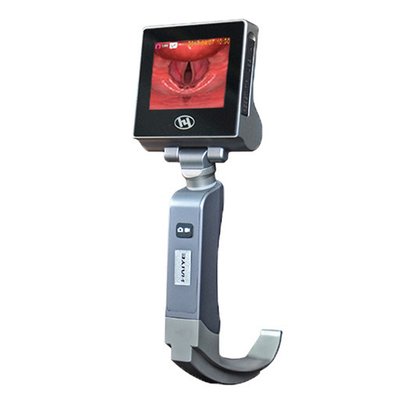

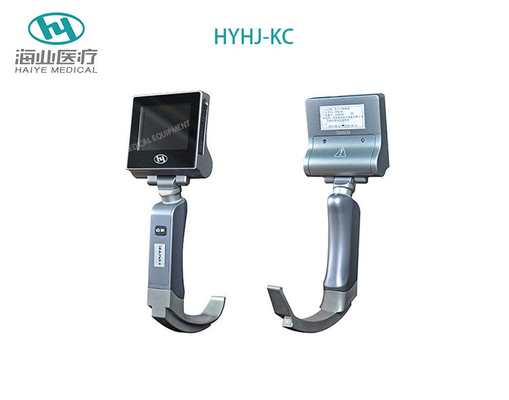

No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant

No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant
No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant

Large Image :  No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant

Product Details:
Place of Origin: XI'AN CHINA
Brand Name: HAIYE MEDICAL
Certification: CE/FDA/ISO13485/ISO9001
Model Number: HYHJ-KC
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 900-1500USD/SET
Packaging Details: cartoon/protective box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 5000sets

No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant

Description
Product Name: Video Borescope Video Laryngoscope Material: 316 Medical Stainless Steel
Display: 3 "TFT Color Screen Resolution: 960*480
Pixels: 2 Million Charging Time: <4h
Battery Type: Lithium Ion Battery Battery Working Time: Continous Use ≥ 350 Mins
Light Source: Built-in High Power Waterproof LED Light Source Camera: Dual Anti-fog, Intubation No Blind Area
Warranty: 1 Year OEM Service: Yes, Qty > 50 Units
Target User: Adult, Children, Infant
High Light:

Haiye Video Laryngoscope Camera

,

No Blind Area Video Borescope

,

Infant Haiye Video Laryngoscope

No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant

  • Powder Button: On/Off and freeze frame
  • Alloy handle: Ergonomic design, more comfortable grip
  • USB port: charging and data transfer
  • Medical stainless steel: suitable for different ways of disinfection, reusable
  • Photo button/Shutter: Short press-take photo, long press-vedio recording
  • 2 million pixel double anti-fog carema system
  • Display module: 3’’ high definition display, image much clearer; metal alloy swing frame, can rotate large angle from left, right, front, and back

Technical feature

Name Technical term Technical Index













Machine

Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Roatate angle front to back: 135 º, left to right: 275 º
laryngoscope blades 5 reasuable blades suit for different oral structure



Powder Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output



Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins



Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%


No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant 0No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant 1

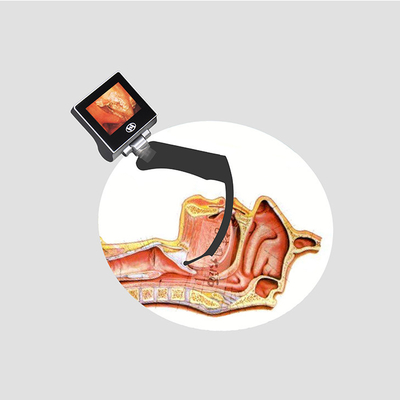

Application of reusable video laryngoscope

Further optimization and improvement of the appearance and shape of the HYHJ-KC ivideo laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway). Reusable video laryngoscope HYHJ-KC is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation.



It is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU/ pediatric department, ambulance and other medical departments at all levels

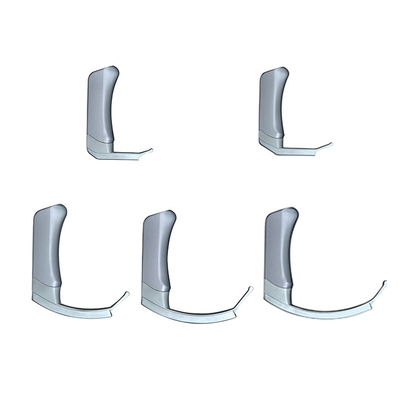

(5 KC Resuable Blades video laryngoscope)

No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant 2


Why Choose VIDEO LARYNGOSCOPE?



1. Any doctors familar with tradional laryngoscope can smoothly use it;



2. Video laryngoscope showing the internal oral structure very clearly, easily capture the photo and vedio;



3. Video laryngoscope keep distance between doctor and patient, greatly reduce the cross-infection possiblity;



4. Video laryngoscope significantly improved glottic exposure grade, nearly 99% of the patients can reach grade I-II, and the grade of glottic exposure can be reduced by at least I grade;



5. Haiye Video laryngoscope shorter the endotracheal intubation time , increase the success rate and also lower the esophageal intubation rate;



6. HYHJ-KC Video laryngoscope forward view do not need three-axis line, the range of head and neck operation is small, Which is suitable for cervical spine injury cases;



7. Lighter operating force,less inquiry,and smoother hemodynamics.No Blind Area Camera Haiye Video Laryngoscope Borescope For Adult Children Infant 3



Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: the U.S., French, Middle East, Australia, Korea, Russia, Pakistan...


Welcome to inquiry if you have any interests!

OEM order is acceptable.
