Product Details:
|
| Product Name: | Video Laryngoscopes Endoscopes | Display Resolution: | 960 X 480 |
|---|---|---|---|
| Pixels: | 2 Million | Viewing Angle: | 70 ± 2 Degree |
| Material: | Medical Stainless Steel | Battery Type: | Lithium Ion Battery |
| Roatate Angle: | Front To Back: 135 º, Left To Right: 275 º | Host Key: | Freeze Frame, Take Photo And Video |
| Warranty: | 1 Year | OEM Service: | Yes, Qty > 50 Units |
| High Light: | Rescue Video Flexible Endoscopes,Portable Emergency Haiye Video Laryngoscope,AV Output Flexible Endoscopes |
||
Haiye AV Output Portable Emergency Rescue Video Flexible Laryngoscopes Endoscopes
HYHJ-1330 video laryngoscope is an teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.
HYHJ-1330 video laryngoscope is full mold production processed, and has high precision and long service life.
HYHJ-1330 video laryngoscope is the newest product of our company. The video laryngoscope is fresh in design, small in portability, beautiful in appearance, simple in use, complete in function. HYHJ-1330 video laryngoscope is a practical, portable, functional, durable and highly configured medical visual laryngoscope.
◆HYHJ-1330 video laryngoscope play equipped imported 3.7V lithium battery, which can be used for more than 350 minutes.
◆ HYHJ-1330 video laryngoscope can video, photographing, freeze-frame, USB stored and exported
◆ Double anti fogging Carema, no blind zone during the intubation.
◆ HYHJ-1330 video laryngoscope has 3 model tapes, match to 3 cameras, which outfit three laryngoscope blades, adults to infants, can suit for different oral structure.

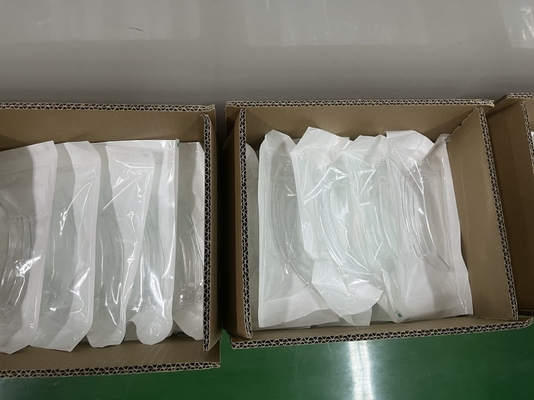

◆ The alone packed sterilized video laryngoscope blade of HYHJ-1330 can prevent cross infection.

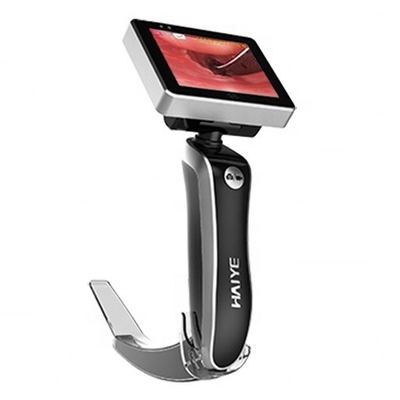

◆ HYHJ-1330 video laryngoscope holds mature and reliable electronic scheme, its 3 inch color display screen have better glottis vision.
Technical Feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope blades | 3 Disposable blades, aseptic packaging for single use | |
|
Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
