Product Details:
|
| Product Name: | Handheld Video Laryngoscope | Resolution: | 960 X 480 |
|---|---|---|---|
| Display: | 3.0 Inch High Definition Screen | Glottis Visualization: | Glottic Visualization |
| Depth Of Focus: | 3~100mm | Roatate Angle: | Front To Back: 135 º, Left To Right: 275 º |
| Powder Input: | 100 - 240V 50/60Hz,0.35A | Powder Output: | 5V,2000mA, USB Output |
| Battery Type: | Lithium Ion Battery | Warranty: | 1 Year |
| OEM: | Yes | ||
| High Light: | Hyperangulated Glottis Visualization Intubation Endoscope,CMOS Intubation Handheld Video Laryngoscope,70 Degree Pediatric Video Laryngoscope |
||

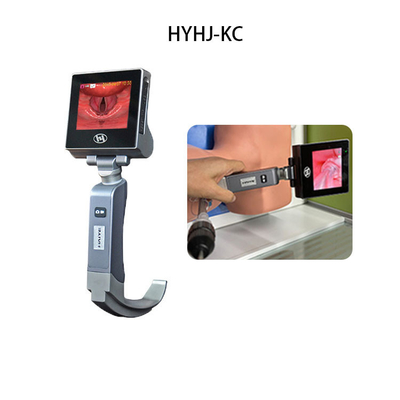

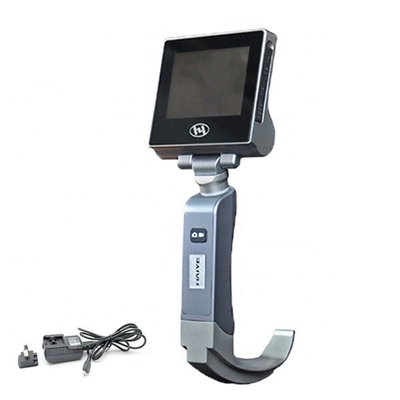

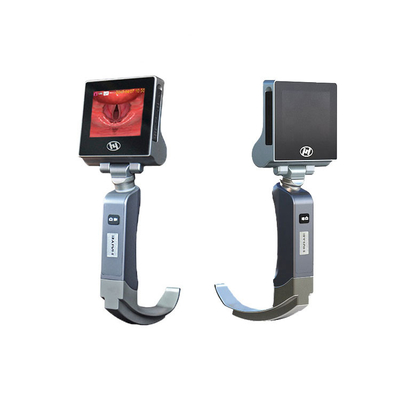

CMOS Intubation Endoscope Handheld Video Laryngoscope with 70º Hyperangulated Glottis Visualization
Product configuration of HYHJ-KC video laryngoscope:
In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).
Description of HYHJ-KC video laryngoscope:
The product HYHJ-KC video laryngoscope’s design fully takes into account the particularity of clinical use, HYHJ-KC video laryngoscope adopts a large number of medical grade metal materials and advanced processing technology; optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.
Product features of HYHJ-KC video laryngoscope:
HYHJ-KC video laryngoscope is simple and graceful, clear imaging, simple operation, complete specifications. Products with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions.HYHJ-KC video laryngoscope's large-capacity battery lasts longer, and the display can rotate from front to back, left to right.
Technical feature of HYHJ-KC video laryngosccope
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |

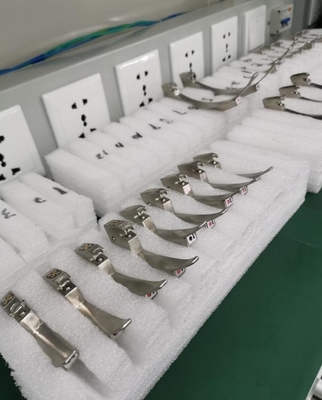

| laryngoscope blades | 5 resuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Welcome to inquiry if you have any interests!
OEM order is acceptable.
