Product Details:
|
| Product Name: | Video Assisted Laryngoscope | Blades Type: | Disposable, 3 Different Size |
|---|---|---|---|
| Display Resolution: | 960 X 480 | Pixels: | 2 Million |
| Viewing Angle: | 70 ± 2 Degree | Roatate Angle: | Front To Back 135 º, Left To Right: 275 º |
| Warranty: | 1 Year | OEM Service: | Yes |
| High Light: | Lithium Ion Battery Video Assisted Laryngoscope,Rechargeable Video Assisted Portable Laryngoscope |
||
3.7V Lithium Ion Battery Rechargeable Disposable Video Assisted Laryngoscope
All-in-one streamlined design, no installation required, ready to use
More than 6 hours of standby time, can be rotated widely
3 kinds of medical 3P materials are individually packaged for disposable laryngeal blades to reduce the risk of cross infection

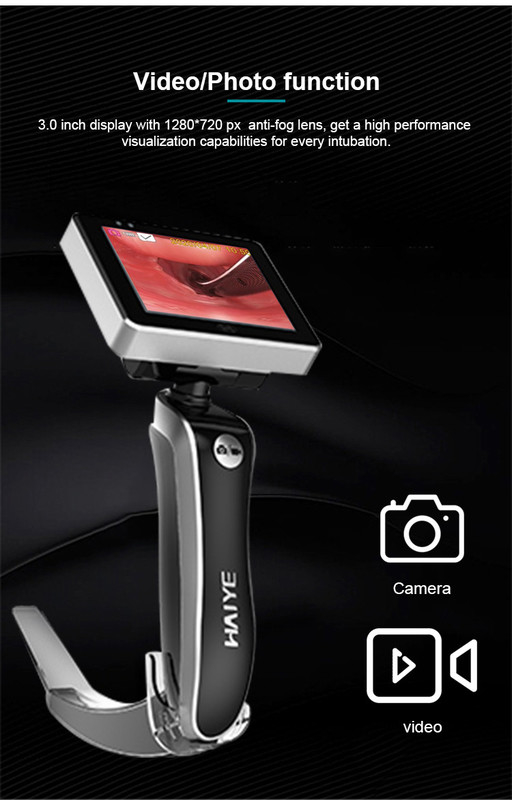

The product has complete functions, and can take photos, freeze frames, and video with one button.
3~100mm depth of field, high-definition color display, clearer image

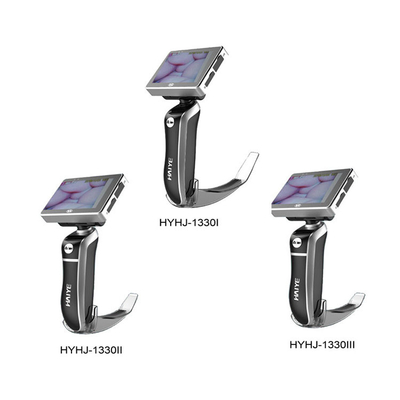

HYHJ-1330 Medical visual laryngoscope is the latest product of our company. HYHJ-1330 video laryngoscope is complete in function and simple in use,novel in design, beautiful in appearance, small in portability. It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.
Video laryngoscope Application: Emergency department, ICU, pediatrics, ENT, dentistry, anesthesiology, respiratory and other departments can be used
Technical data of video laryngoscope:
Pixel:2million
Resolution:960×480
Battery endurance:≥6h
Effective depth of field:3～100mm
Field angle:70±2º
Battery life:Cyclic charging＞800 times
Charging time:≤4h
Angle of rotation before and after the display:0º～135º
Display: 3 "TFT color display screen
Left and right angle of rotation:0º～275º
Light source with high power waterproof LED light source, light illuminance:≥3000lux
Technical Index of disposable video laryngoscope
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| Blades | 3 different types disposable blades, aseptic packaging for single use | |
| Adapter | Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
Welcome to inquiry if you have any interests!
OEM order is acceptable.
