Product Details:
|
| Product Name: | Portable Video Laryngoscope | Material: | Medical Grade Steel |
|---|---|---|---|
| Display: | 3"TFT Color Display | Resolution: | 960 X 480 |
| Pixels: | 2 Million | Viewing Angle: | 70 ± 2 Degree |
| Depth Of Field: | 3~100mm | Cycle Life Of Battery: | > 800 Times |
| Battery Working Time Continous Use: | ≥ 350 Mins | Warranty: | 1 Year |
| OEM Service: | Yes, Qty > 50 Units | ||
| High Light: | Emergency Rescue Handheld Video Laryngoscope,Anesthetist Portable Video Laryngoscope,Respiratory Physician Visual Laryngoscope |
||

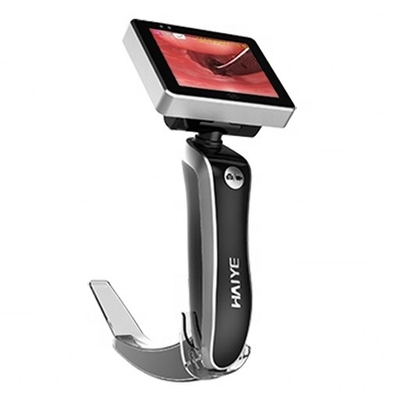

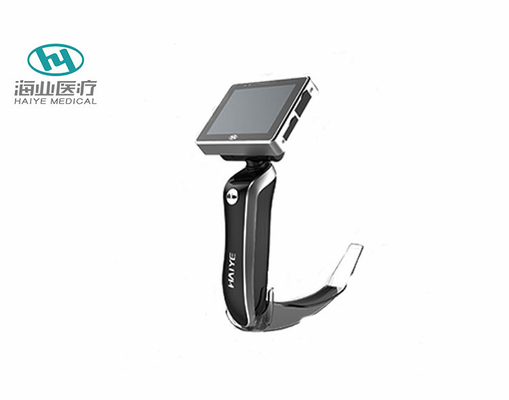

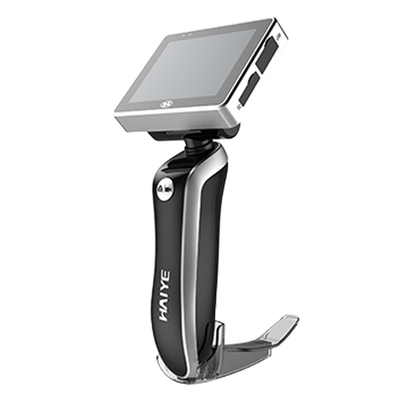

Emergency Rescue Portable Video Laryngoscope for Anesthetist & Respiratory Physician
Main Features :
One-click start, no warm-up required
The power button contains a scaling function
Standard 3-inch screen clarity and high practicality
The frame is made of medical 304 stainless steel, which has high strength and high hardness
The camera button contains a recording function
The camera system is made of medical 304 stainless steel
Double anti-fog, no blind spots
Transparent laryngeal lenses
Different specifications meet various oral structures, aseptic packaging for single use
3.0-inch LCD screen, can turn back and forth at large angles, disposable laryngoscope piece has blade guide slot design, so that intubation is simple and effective
Technical Index
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Ratate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 3 different types disposable blades,aseptic packaging for single use | |
| Adapter | Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |

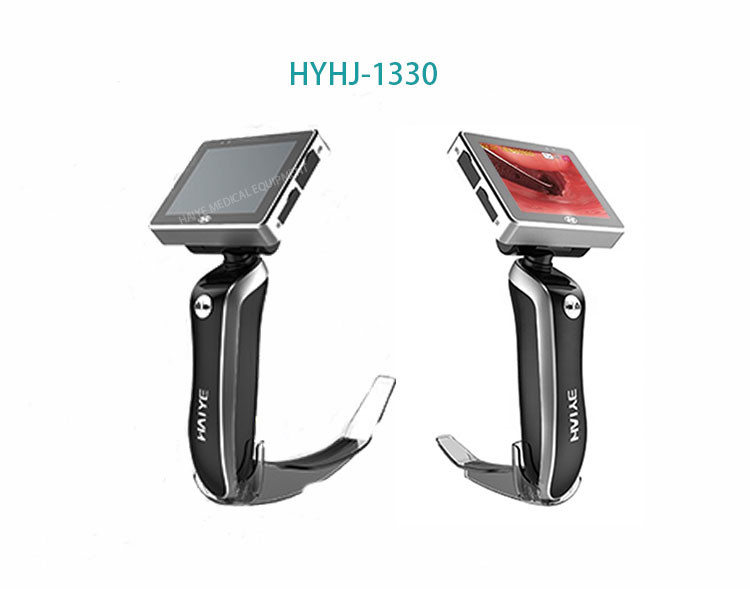

The HYHJ1330 offers unique anti-fog capability with a rechargeable lithium-ion battery for extended use time. Fully ergonomically designed. The high-resolution view laryngoscope provides a more complete display of the glottis, greatly reducing the likelihood of difficult intubation
The camera system display of the machine is integrated and does not require manual installation; It has three camera sizes that can be adapted to different sizes of oral structures, and each camera system is equipped with disposable sterile packaging of medical PC to prevent cross-infection

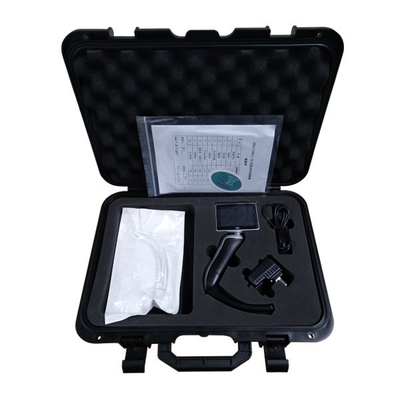

Imported special medical material, smooth surface without reflection, fuselage free fall is not easy to damage, medical waterproof aviation professional connection design, to ensure high quality image transmission; High quality protective box, handle laryngoscope integrated design, light and dexterous
