Medical Video Laryngoscope Camera Set For Diffcult Intubation

Certification
China Xian Haiye Medical Equipment Co.,Ltd certification
China Xian Haiye Medical Equipment Co.,Ltd certification
I'm Online Chat Now

Medical Video Laryngoscope Camera Set For Diffcult Intubation

Medical Video Laryngoscope Camera Set For Diffcult Intubation
Medical Video Laryngoscope Camera Set For Diffcult Intubation Medical Video Laryngoscope Camera Set For Diffcult Intubation

Large Image :  Medical Video Laryngoscope Camera Set For Diffcult Intubation

Product Details:
Place of Origin: China
Brand Name: Haiye
Certification: ISO13485, CE
Model Number: HYHJ-1320
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 500~900 Set

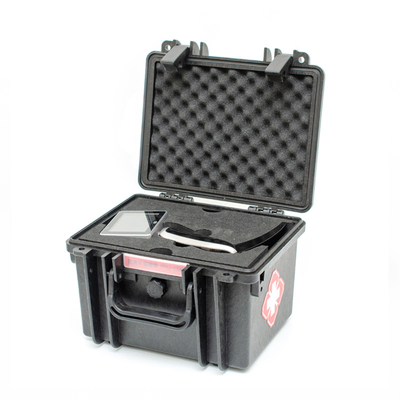

Packaging Details: High strength protection box
Delivery Time: 5-8 work days
Payment Terms: Western Union, T/T
Supply Ability: 1000 set per month

Medical Video Laryngoscope Camera Set For Diffcult Intubation

Description
Type: Anesthesia Equipments & Accessories Power Source: Electricity
Warranty: 1 Year Instrument Classification: Class II
Pixel: 2 Million Application: ICU/Operating Room /emergency Room
Field Angle: 70±2 Battery Power: 3.7V
After-sale Service: Online Technical Support Battery Life: ≥6hs
High Light:

Medical Video Laryngoscope Camera

,

Intubation Disposable Video Laryngoscope

,

Disposable Video Laryngoscope Equipment

2022 Hot Selling Medical Use Set Camera Video Laringoscopio Video Laryngoscope For Diffcult Intubation​







Planning for the difficult airway, expected or unexpected, is no longer a challenge when intubating a patient. Whether an adult or a child, with HAIYE ,  you are always prepared for the difficult airway.

HAIYE is designed to enable quick and easy intubation with its display providing a consistent clear real-time view of your patient’s airway. The single-use blades are available in 5 different sizes and offers the choice of two blade types, allowing you to keep your preferred intubation technique.



For fast and reliable intubation, nothing is more important than the best view of the glottis - with a bright and sharp image. This is true for every intubation – and even more so for difficult, unforeseen situations. HYHJ-1320 provides 2 million pixal resolution.



Get more of the light you want and less of light you don’t. Our video laryngoscopes deliver a high-resolution image powered by the latest advancements in lighting and camera technology, for enhanced airway views



Get the confidence of HAIYE whenever and wherever you need it. Intubate routine and difficult airways with the handheld, portable video laryngoscopy system designed for rapid, first-pass success.



Main Feature of video laryngoscope:
1. 3.0 inch Colorful LCD screen.
2. Camera Resolution: 2 M pixel.

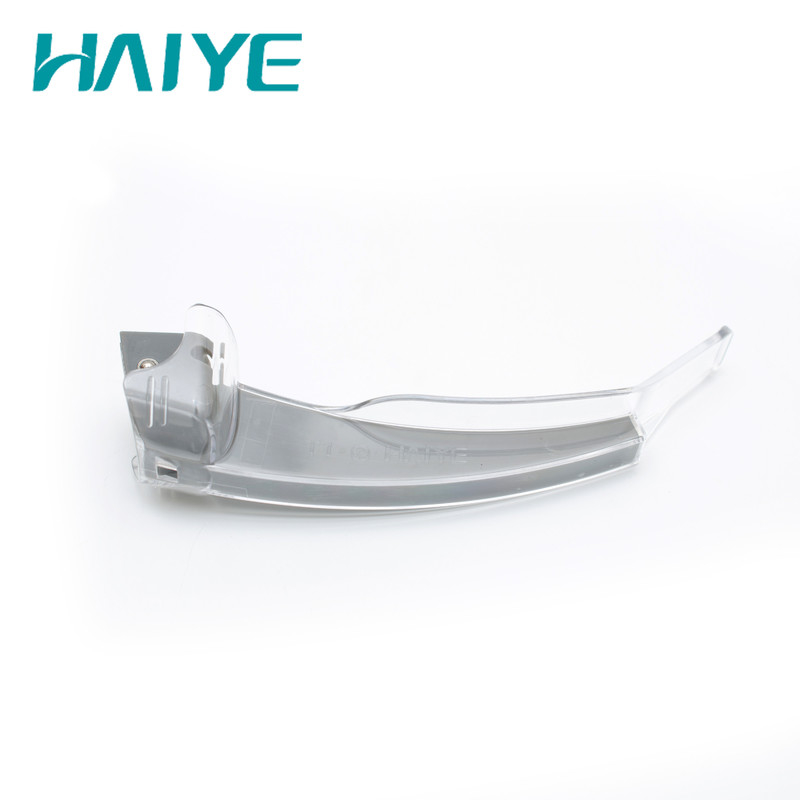

3. Disposable blade and Reusable Blade:Aseptic packaging,strength,comfortable and reliable.
4. Compatible with blade perfect.
5. Video synchronous transmission to big monitor by AV cable.
6. Easy to input the tracheal tube by good view of glottis.
7. More curved blade angle makes it can cope with most difficult airway management.
8. Anti-fog,no need preheating.

Medical Video Laryngoscope Camera Set For Diffcult Intubation 0

Parts Description Technical Index
Machine Screen 3 inch LCD
Resolution 960*480 (RGB)
Viewing angle ≥70º
Power <2W
Display front and back rotation Angle 0 º~175 º
Weight 225g
Camera Illuminance ≥3000 LUX
Resolution 1280*720 px
Image/Video function Image/ Video function Yes
Output USB output, Easy to storage and establish image/video
Memory type Micro SD card 32GB
Battery Battery Type Rechargable lithium battery
Capacity 3400mAh
Cycle life of battery >600 times
Battery working time >400min
Charging time <2(hrs)
Charging Port Micro USB
Power Adapter Input 100-250V, 50 Hz.
Output 5V1A



Advantage of video laryngoscopes
*Anti-fog
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation

Application of video laryngoscope
1. Clinical endotracheal intubation.
2. Simulation practice
3. Clinical teaching
4. Difficult airway intubation.
Medical Video Laryngoscope Camera Set For Diffcult Intubation 1
Medical Video Laryngoscope Camera Set For Diffcult Intubation 2


We are manufacturer of video laryngoscope, the advantages are as below:

* Expert in video laryngoscope for 8 years;

* Focus on reusable video laryngoscope and disposable video laryngoscope;

* Obtained certificates: CE, ISO 13485 and ISO 9001 and FDA;

* We offer OEM service and print logo as your requirement;

* High standard Lab research and test.
