Product Details:
|
| Product Name: | Video Laryngoscope | Resolution: | 960*480 |
|---|---|---|---|
| Screen: | 3.0 Inch | Pixel: | 2 Million Pixel |
| Image /Video: | Yes | Depth Of Field: | 3-100mm |
| Field Angle: | 70+2 | Battery: | Rechargeable Lithium Battery |

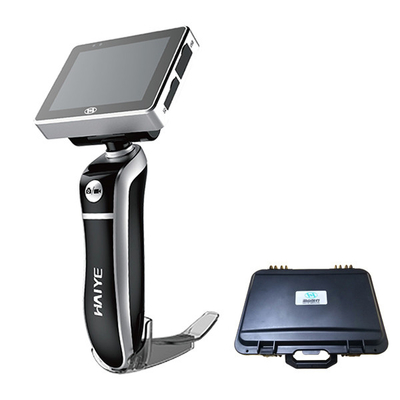

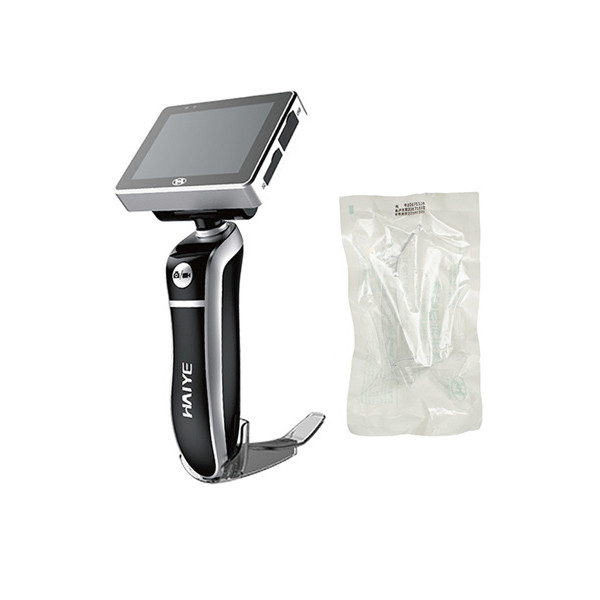

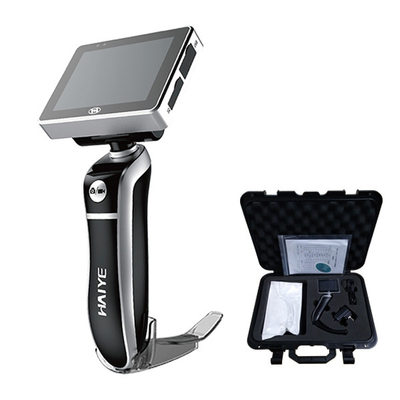

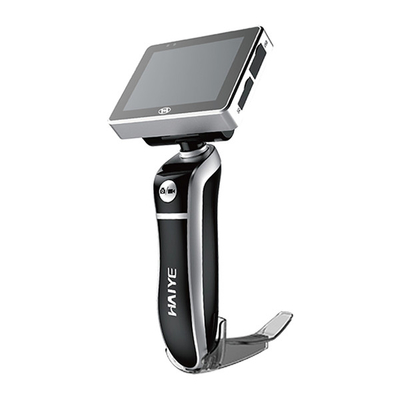

2022 2 Million Pixel Rechargeable Handheld Video Laryngoscope With Disposable Blade
Company Overview:
Product of video laryngoscope HYHJ-1330 III
Production Capacity:
Specifications for the Video Laryngoscope
|
PARTS
|
Description
|
Technical Index
|
|
Machine
|
Screen
|
3 inch LCD
|
|
Resolution
|
960*480 (RGB)
|
|
|
Viewing angle
|
≥70º
|
|
|
Power
|
<2W
|
|
|
Display front and back rotation Angle
|
0 º~175 º
|
|
|
Weight
|
225g
|
|
|
Camera
|
Illuminance
|
≥3000 LUX
|
|
Resolution
|
1280*720 px
|
|
|
Image/Video function
|
Image/ Video function
|
Yes
|
|
Output
|
USB output, Easy to storage and establish image/video
|
|
|
Memory type
|
Micro SD card 16GB
|
|
|
Battery
|
Battery Type
|
Rechargable lithium battery
|
|
Capacity
|
3400mAh
|
|
|
Cycle life of battery
|
>600 times
|
|
|
Battery working time
|
>400min
|
|
|
Charging time
|
<2(hrs)
|
|
|
|
Charging Port
|
Micro USB
|
|
Power Adapter
|
Input
|
100-250V, 50 Hz.
|
|
Output
|
5V1A
|
|
|
Working
Condition |
Temperature
|
-5℃~+50℃
|
|
Humidity
|
10%~90%
|
|
|
Air Pressure
|
860~1060hpa
|
|
|
Transport / Storage
Condition |
Temperature
|
-10℃~50℃
|
|
Humidity
|
≤93%
|
|
|
Air Pressure
|
500~1060hpa
|
Features:
*Anti fog coating on distal lens
*Video/Photo function
*Battery rechargeable
*One button Only, Fast and simple operation
*360 °All sight LCD, no blind spot
*Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
Clinical training and teaching of tracheal intubation.
Portable
Light weight, main unit is less than 350g. Disposable blade is vacuum packing. Excellent body design, easy to install or remove. It's ready to use in no time.
Packing Size :260*230*185mm
Package Type :Carton ,Standard Export Packing for Ansthesia Video Laryngoscope With 1 blade.
Specifications of video laryngoscope HYHJ-1330
| Parts | Description | Technical Index |
| Machine | Screen | 3 inch LCD |
| Resolution | 960*480 (RGB) | |
| Viewing angle | ≥70º | |
| Power | <2W | |
| Display front and back rotation Angle | 0 º~175 º | |
| Weight | 225g | |
| Camera | Illuminance | ≥3000 LUX |
| Resolution | 1280*720 px | |
| Image/Video function | Image/ Video function | Yes |
| Output | USB output, Easy to storage and establish image/video | |
| Memory type | Micro SD card 32GB | |
| Battery | Battery Type | Rechargable lithium battery |
| Capacity | 3400mAh | |
| Cycle life of battery | >600 times | |
| Battery working time | >400min | |
| Charging time | <2(hrs) | |
| Charging Port | Micro USB | |
| Power Adapter | Input | 100-250V, 50 Hz. |
| Output | 5V1A |
FAQ
Q: Are you Manufacturer?
A: We are professional manufacturer of video laryngoscope in China over 5 years, now we mainly produce video laryngoscope with disposable and reusable blade,welcome to visit our factory.
Q: What’s your MOQ and OEM service available?
A: 1 sets as sample can accept, we offer OEM service and print your logo as your requirement.
Q: Can we replace disposable and reusable blade?
A: Main machine is the same, you can match our disposable or reusable freely.
Q: Whats your warranty?
A: We offer 12 months warranty, within warranty change new machine, after warranty only pay produce cost.
