Product Details:
|
| Product Name: | Endotracheal Intubation Video Laryngoscope | Material: | 316 Medical Stainless Steel |
|---|---|---|---|
| Display: | 3 "TFT Color Screen | Resolution: | 960*480 |
| Pixel: | 2 Million | Viewing Angle: | 70°± 2° |
| Depth Of Field: | 3~100mm | Rotate Angle: | Front To Back: 0~135°, Left To Right: 0~275° |
| Light Source: | Waterproof LED Illumination：≥3000lux | Battery Cyclic Charging: | ＞800 Times |
| Warranty: | 1 Year | Battery Endurance: | 6 Hours Long |
| OEM Service: | Yes, Qty > 50 Units | ||
| High Light: | Endotracheal Intubation Video Laryngoscope Set,Handheld Intubation Video Laryngoscope,Waterproof Handheld Video Laryngoscope |
||

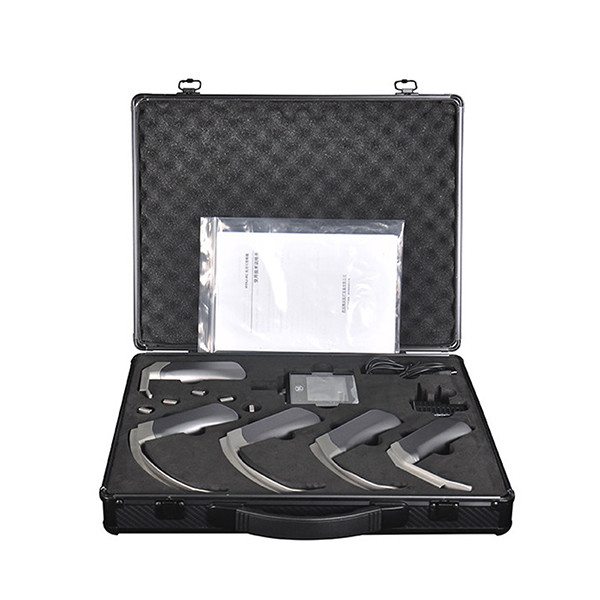

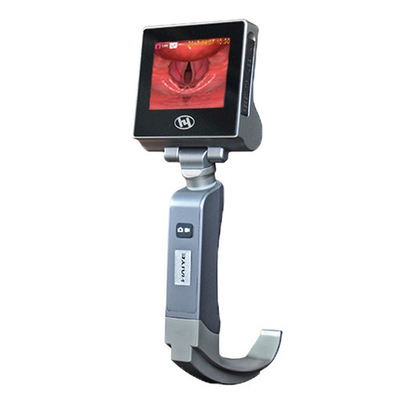

Endurance Endotracheal Intubation Video Laryngoscope Set 6 Hours Long Battery
Technical parameter
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | Suit for different oral structure, aseptic packaging for single use | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |

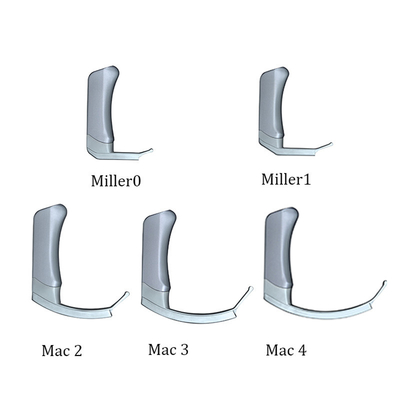

5 KC Resuable Blades
| Specification & Dimension | ||||||
| Tip Size(mm) | L | H | W | Max W | Min W | |
| 1 | Mac4:Large Adult | 153 | 54.5 | 29.23 | 22.41 | 14.37 |
| 2 | Mac3:Medium Adult | 140 | 49 | 29.23 | 21.37 | 14.46 |
| 3 | Mac2:Small Adult & Large Child | 122 | 34 | 29.23 | 21.4 | 13.56 |
| 4 | Miller1:Medium Child | 77.4 | 22.74 | 18.55 | 14.5 | 10.34 |
| 5 | Miller0:Small Child & Infant | 59.9 | 17.46 | 18.55 | 14.7 | 10.6 |
Application
XI'AN HAIYE has been devoted to the R&D and production of products in the visual medical field since its founding, and has developed successively many kinds and full series of products, such as anesthesia laryngoscopes, video laryngoscopes, video rigid endoscopes, video flexible endoscopes, disposable uroscopes, disposable hysteroscopes.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
