Product Details:
|
| Product Name: | Reusable Video Larygoscope | Display: | 3 "TFT Color Screen |
|---|---|---|---|
| Resolution: | 960*480 | Pixels: | 2 Million |
| Viewing Angle: | 70°± 2° | Depth Of Fields: | 3~100mm |
| Rotate Angle: | Front To Back: 0~135°, Left To Right: 0~275° | Powder Input: | 100 - 240V50/60Hz,0.35A |
| Powder Output: | 5V,2000mA, USB Output | Cycle Life Of Battery: | > 800 Times |
| Charging Time: | <4h | Warranty: | 1 Year |
| OEM Service: | Yes, Qty > 50 Units | ||
| High Light: | ENT Instruments Rigid Laryngoscope,Rigid Anesthesia Video Laryngoscope Set,Handheld Rigid Video Laryngoscope |
||

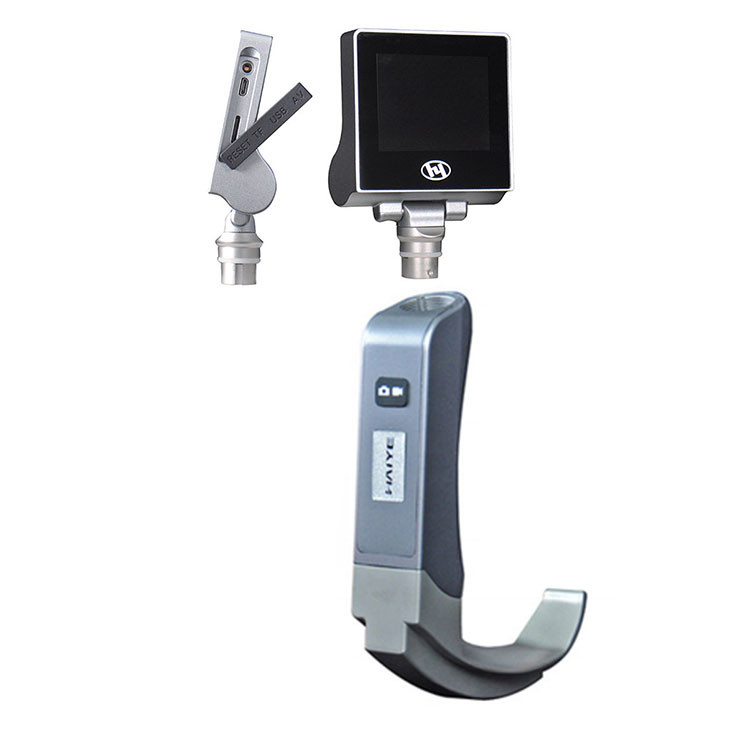

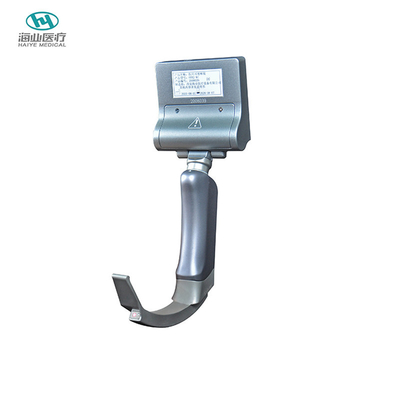

USB Output Rigid Anesthesia Video Laryngoscope Set ENT Instruments
Description of Products:
The product HYHJ-KC’s design fully takes into account the particularity of clinical use, It adopts a large number of medical grade metal materials and advanced processing technology; optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.
Product features:

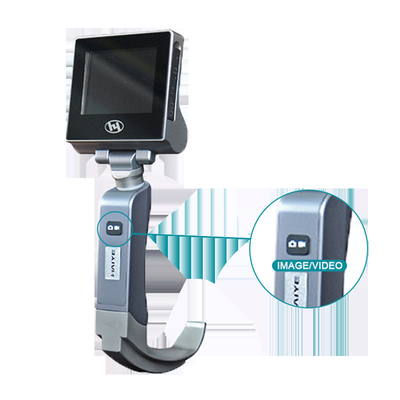

simple and graceful, clear imaging, simple operation, complete specifications. Products with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions. The large-capacity battery lasts longer, and the display can rotate from front to back, left to right.
Product configuration:

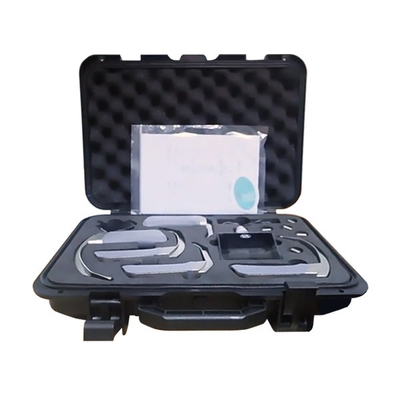

In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 5 resuable medical stainless steel blades, suit for different oral structure | |
|
Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Xi 'an Haye Medical Equipment Co., LTD., founded in 2013, with Ding Hailiang as its legal representative, is a high-tech enterprise integrating science, industry and trade. Since its establishment, the company has been focusing on the visual medical field, and committed to the professional development and production of video laryngoscope, developed common laryngoscope, video hard mirror, video hard tube mirror, video soft mirror and other series of products.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
