Product Details:
|
| Product Name: | Anesthesia Video Larygoscope | Material: | 304 Stainless, Plastic |
|---|---|---|---|
| Display: | 3 "TFT Color Screen | Resolution: | 960*480 |
| Pixels: | 2 Million | Viewing Angle: | 70°± 2° |
| Depth Of Fields: | 3~100mm | Rotate Angle: | Front To Back: 0~135°, Left To Right: 0~275° |
| Warranty: | 1 Year | OEM Service: | Yes |
| OEM Qty: | 50 Units | ||
| High Light: | 70 Degree Viewing Angle Video Laryngoscope,Disposable Anesthesia Video Laryngoscope Equipment,SS304 Disposable Video Laryngoscope |
||

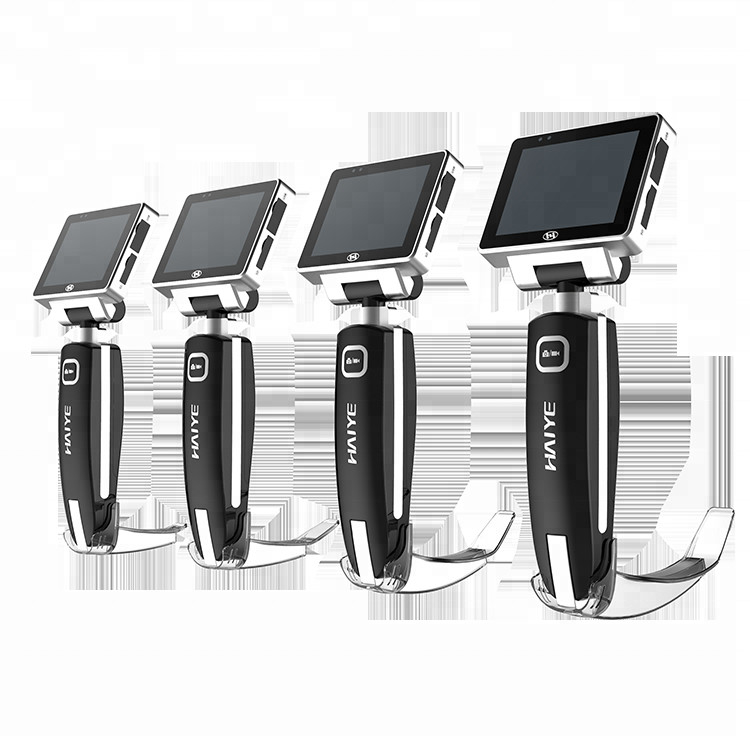

SS304 Disposable Anesthesia Video Laryngoscope 70 Degree Viewing Angle
Product Features:
Intubation with high precision full mold manufacturing process, stainless steel reinforcement, not easy to damage, long service life;
The machine adopts imported large capacity lithium battery, which can be used for more than 300 minutes.
It has the functions of taking pictures, video recording, freeze frame and so on, and can be stored and exported;
Unique dual anti-fog function, ready to use, no preheating, intubation without blind area;

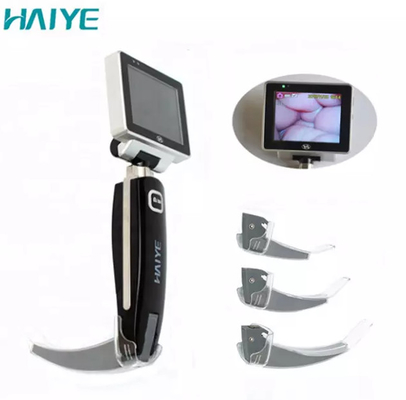

It is standard equipped with three cameras of different models, suitable for three different laryngoscopes, suitable for different people.

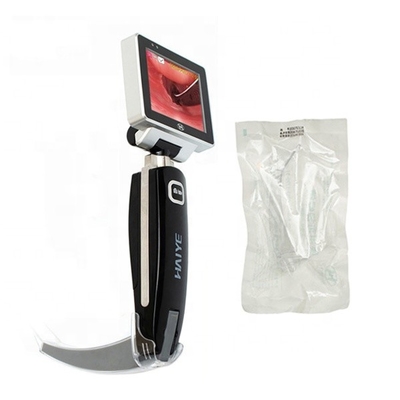

Disposable laryngoscope tablets are packaged and sterilized to prevent cross infection. Mature and reliable fully functional electronic scheme and HD digital camera system, with 3 "TFT color display screen, good effect of restoration.
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |

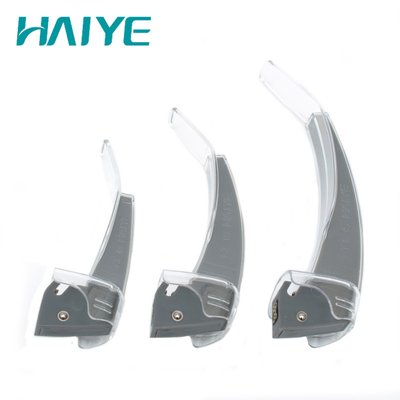

| Blades | Suit for different oral structure,aseptic packaging for single use | |
|

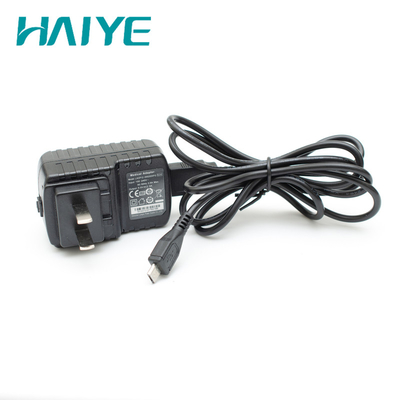

Power Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |

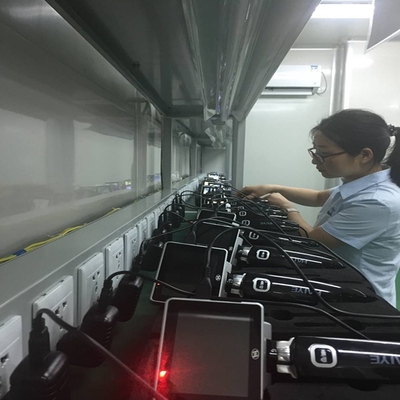

Haiye is designed to produce practical, durable and easy to use portable video laryngoscope, the whole machine adopts a unique streamlined integrated design, in line with the principles of ergonomics, to minimize the damage to the mouth and throat, most difficult airway intubation can provide an effective solution.Our high standard dust-free assembly workshop, standardized aseptic production workshop, well-equipped laboratory and a high-quality, efficient entrepreneurial team, can provide you an effective solution for difficult airways intubation.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
