Product Details:
|
Product Name: | Disposable Video Larygoscope | Display: | 3 "TFT Color Screen |
---|---|---|---|
Resolution: | 960*480 | Viewing Angle: | 70 Degree |
Depth Of Fields: | 3~100mm | Charging Time: | <5h |
Material: | Stainless Steel, Plastic | OEM Service: | Available |
OEM Quantity: | 50 Units | ||
High Light: | Pediatric Emergency Video Laryngoscope,316 Stainless Steel Medical Surgical Endoscope,70 Degree Medical Video Endoscope |

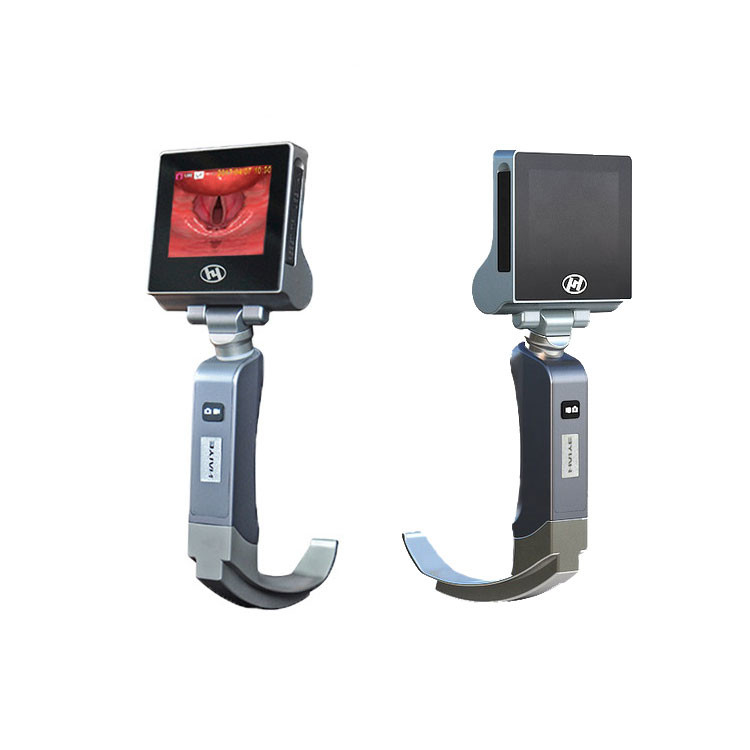

70 Degree Medical Video Endoscope For Miler Adult And Pediatric Emergency
Description of Products:
The product HYHJ-KC’s design fully takes into account the particularity of clinical use, It adopts a large number of medical grade metal materials and advanced processing technology; optimized and improved the structure design, imaging quality and convenience of use which perfectly combines the appearance and use together.
Product features:

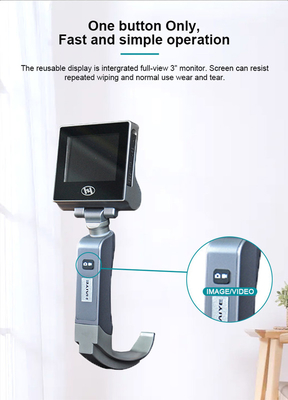

simple and graceful, clear imaging, simple operation, complete specifications. Products with photography, freeze frame, video recording, HD output, data storage, large capacity export and other functions. The large-capacity battery lasts longer, and the display can rotate from front to back, left to right.
Product configuration:

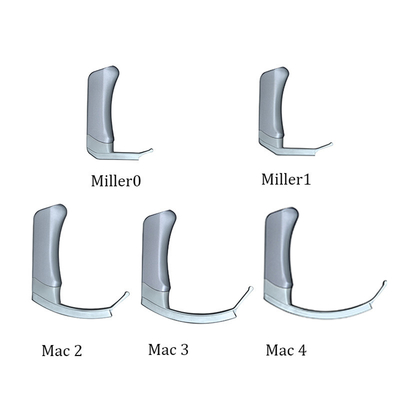

In order to enhance the convenience of use, the display screen can be connected with any size of the handle, the product can be reused and one-time use (5 specifications: adult large, adult medium, child, newborn, premature).
Technical feature
Name | Technical term | Technical Index |
Machine |
Display Resolution | 960 x 480 |
Pixels | 2 million | |
Camera Resolution | 1600 x 1200 | |
Viewing angle | 70 ± 2 degree | |
Depth of field | 3~100mm | |
Host key | Freeze frame, take photo and video | |
Material | Medical Stainless Steel | |
Light source | Built-in high power waterproof LED light source | |
Camera | Dual anti-fog, intubation without blind area | |
Interface | USB,TF(Hot plug) | |
Rotate angle | front to back: 135 º, left to right: 275 º | |
laryngoscope blades | 5 resuable blades suit for different oral structure | |
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
Output | 5V,2000mA, USB output | |
Battery |
Charging time | <4h |
Cycle life of battery | > 800 times | |
Battery type | lithium ion battery | |
Battery working time | continues use ≥ 350 mins | |
Working Condition |
Environment tem | -5°~ 40°C |
Relative humidity | ≤80% | |
atmosphere pressure | 860hpa~1060hpa | |
internal electric source | lithium ion battery,3.7V | |
Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
Relative humidity | ≤93% |
Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: the U.S., French, Middle East, Australia, Korea, Russia, Pakistan...
Welcome to inquiry if you have any interests!
OEM order is acceptable.
