Product Details:
|
| Product Name: | Led Video Laryngoscope | Display: | 3 "TFT Color Screen |
|---|---|---|---|
| Resolution: | 960*480 | Carema: | CMOS, Double Anti Fog |
| Charging Time: | ≤4h | Battery Working Time: | Continous Use ≥ 350 Mins |
| Pixel: | 2 Million | Interface: | USB，TF(Hot Plug) |
| Roatate Angle: | Front To Back: 135 º, Left To Right: 275 º | OEM Service: | Yes |
| OEM Quantity: | 50 Units | Warranty: | 1 Year |
| High Light: | CMOS Handheld Video Laryngoscope,Double Anti Fog Optical Laryngoscope,3.0'' Display Optical Video Laryngoscope |
||

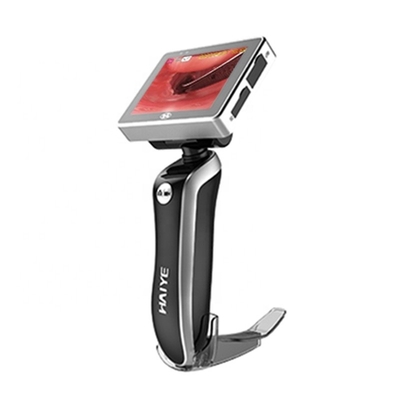

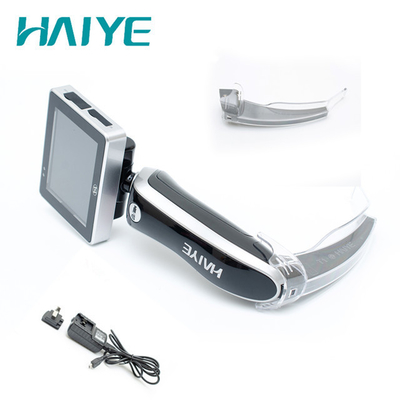

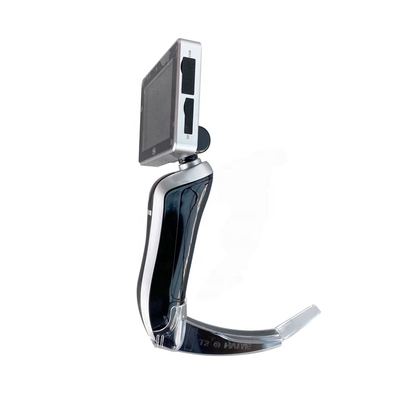

Double Anti Fog Optical Video Laryngoscope 3.0'' Display Led CMOS

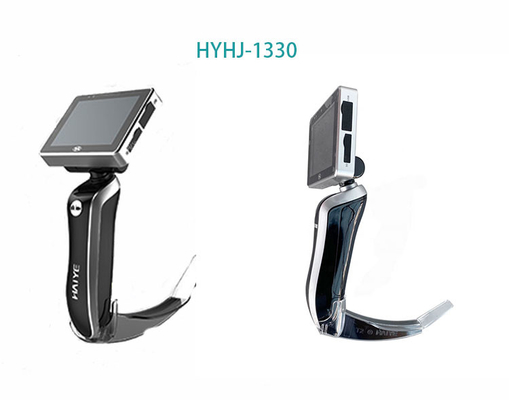

HYHJ-1330
The machine is novel in design, beautiful in appearance, small in portability, complete in function and simple in use,It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.
Application
It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).
It is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU/ pediatric department, ambulance and other medical departments at all levels
Technical Index
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | disposable blades, aseptic packaging for single use | |
|
Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continuesuse ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Haiye is designed to produce practical, durable and easy to use portable video laryngoscope, the whole machine adopts a unique streamlined integrated design, in line with the principles of ergonomics, to minimize the damage to the mouth and throat, most difficult airway intubation can provide an effective solution.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
