Product Details:
|
| Display: | 3 "TFT Color Screen | Resolution: | 960*480 |
|---|---|---|---|
| Pixel: | 2 Million | Depth Of Field: | 3～100mm |
| Field Angle: | 70±2º | Stand-by Time: | ≥6h |
| Battery Life: | Recharge＞800times | Charger Input: | 100～240V，50/60Hz,0.35A |
| Charger Output: | 5V,2000mA | Illuminance: | ≥3000lux |
| Blades: | Disposable, T1, T2,T3 | Warranty: | 1 Year |
| OEM MOQ: | 50SETS | ||
| High Light: | Simulation Disposable Video Laryngoscope,3 " TFT Screen Disposable Video Laryngoscope,5V Portable Video Laryngoscope |
||

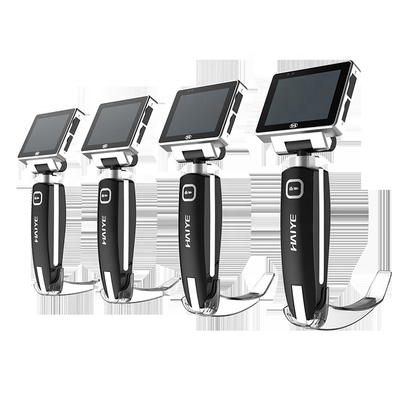

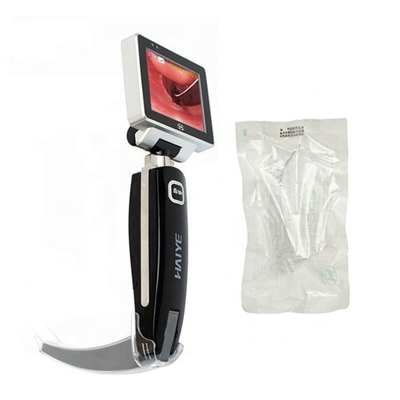

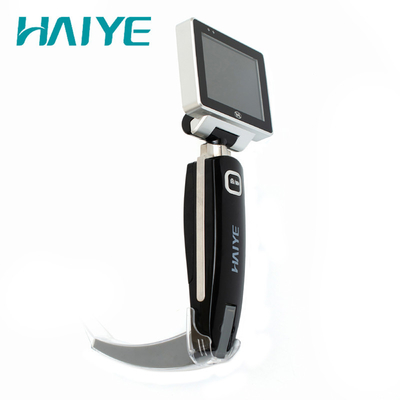

3 "TFT Color Screen HYHJ-1320 Disposable Video Laryngoscope Simulation Practice Portable Laryngoscope

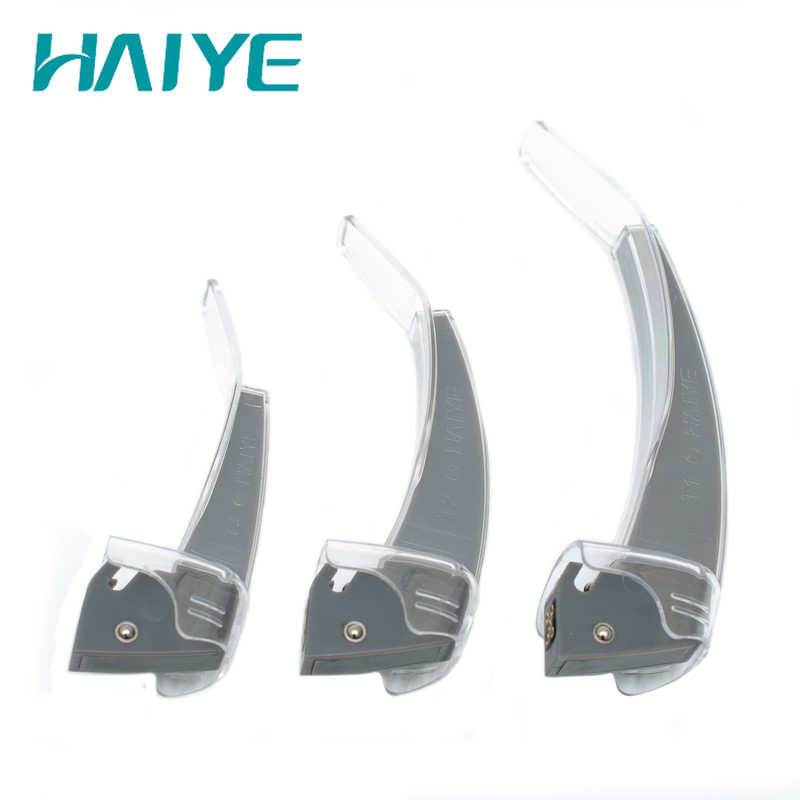

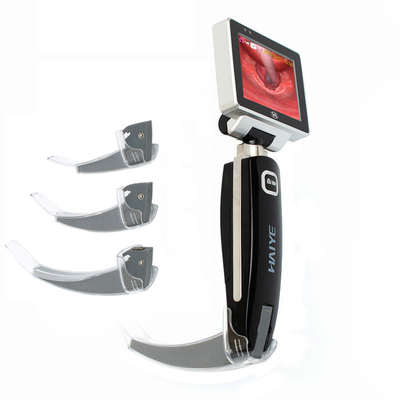

Blades Types
HYHJ-1320 has 3 different sizes of carema for clients to choose, which can suit for various oral structures; the large carema is for adult, medium for children while the small for the newborns. Each camera system has its own disposable laryngoscope blade to match with:
1. Large carema: HYHJ-1320-T1
2. Medium carema: HYHJ-1320-T2
3. Small carema: HYHJ-1320-T3
Parameters of laryngoscope
Large: ≤ 35mm, medium: ≤ 32mm; small: ≤ 28mm
Large: 119mm, medium: 95mm; small: 78mm
Large/ Medium/ Small: ≤ 10mm
Large: 41, medium: 35; small: 19
HYHJ-1330 Medical visual laryngoscope is the latest product of our company.The machine is novel in design, beautiful in appearance, small in portability, complete in function and simple in use,It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.
Technical Feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| Blades | 3 Disposable bladeds, aseptic packaging for single use | |
|

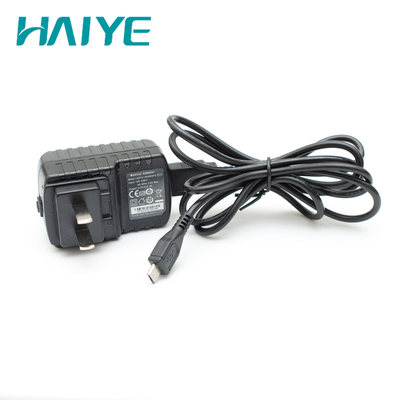

Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: U.S., Middle East, Australia, Korea, Russia, Pakistan...
Welcome to inquiry if you have any interests!
OEM order is acceptable.
