Product Details:
|
| Product Name: | Vedio Laryngoscope | Material: | 316 Medical Stainless Steel |
|---|---|---|---|
| Resolution: | 960*480 | Display: | 3"TFT Color Display |
| Pixel: | 2million | Carema Resolution: | 1600*1200 |
| Depth Of Field: | 3～100mm | Field Angle: | 70±2º |
| Stand-by Time: | ≥6h | Charing Time: | ≤4h |
| Roatate: | Front To Right：0º～135º；left To Right：0º～275º | Blades: | Reusable, 5 Different Sizes |
| Warranty: | 1 Year | ||
| High Light: | 220v Reusable Visual Laryngoscope,Respiratory Anesthesiology Department Medical Surgical Endoscope,Digital Visual Laryngoscope |
||

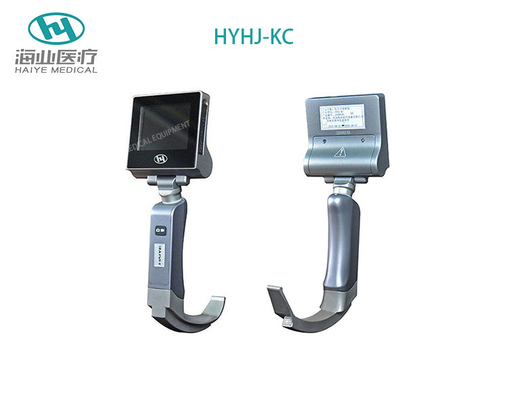

220v Digital Reusable Visual Laryngoscope For Respiratory Anesthesiology Department
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |

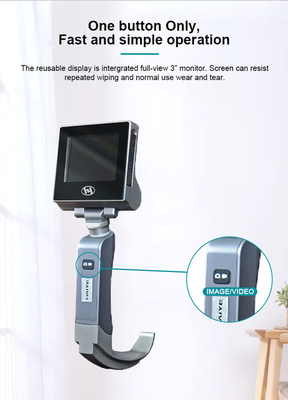

| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 5 resuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: U.S., Middle East, Australia, Korea, Russia, Pakistan...
Welcome to inquiry if you have any interests!
OEM order is acceptable.
